Sun-Synchronous
Orbit Explained

A Sun-synchronous orbit, usually abbreviated SSO, is a near-polar Earth orbit whose orbital plane precesses at approximately the same rate that Earth travels around the Sun. This keeps the angle between the orbit plane and the Sun direction nearly constant through the year. As a result, the satellite crosses the equator at approximately the same mean local solar time on each pass of the same node.

The word "synchronous" can be misleading. The spacecraft is not synchronized with Earth's daily rotation like a geostationary satellite. It continues circling Earth roughly every 90 to 105 minutes in low Earth orbit while Earth rotates beneath it. What stays synchronized is the orientation of the orbit plane relative to the Sun.

This property is extremely useful for optical remote sensing. If one image is collected in mid-morning and another is collected at nearly the same local solar time days later, their illumination and shadow geometry are more comparable. Seasonal changes remain, and weather can still differ, but the orbit removes a major source of lighting variation.

A polar orbit is any high-inclination orbit that travels roughly north-south and passes near both poles. A Sun-synchronous orbit is a more specific design. It must combine altitude, inclination, eccentricity, and nodal precession so the plane follows the annual apparent motion of the Sun.

Most operational SSOs are retrograde, meaning their inclination is greater than 90 degrees and the spacecraft moves westward relative to Earth's rotation at the equator. Typical inclinations are around 97 to 99 degrees for common Earth-observation altitudes. A 90-degree orbit may be exactly polar, but it does not receive the required first-order nodal precession from the `J2` term because the cosine of 90 degrees is zero.

That distinction matters in satellite trackers. A near-vertical ground track does not prove an orbit is Sun-synchronous. You also need the orbital elements and their time evolution. Read Understanding Orbital Inclination for the basic meaning of prograde, polar, and retrograde geometry.

Earth completes one revolution around the Sun in about one year. From an Earth-centered viewpoint, the direction toward the Sun therefore changes by approximately 360 degrees per year, or 0.9856 degrees per mean solar day. If an Earth satellite's orbital plane remained fixed in inertial space, the local solar time of its equator crossing would drift throughout the year.

An SSO avoids that drift by rotating its orbital plane eastward at almost the same annual rate. Orbital engineers track this plane orientation using the right ascension of the ascending node, or RAAN. The ascending node is where the satellite crosses the equatorial plane from south to north. For a typical SSO, RAAN advances gradually so the node keeps a nearly constant angular relationship with the Sun.

The visible shift from one orbit to the next is tiny. Diagrams exaggerate it because a change of roughly one degree per day is difficult to see at page scale. The effect becomes decisive over weeks and months: without it, a morning-imaging orbit would slowly turn into a noon, afternoon, and night orbit.

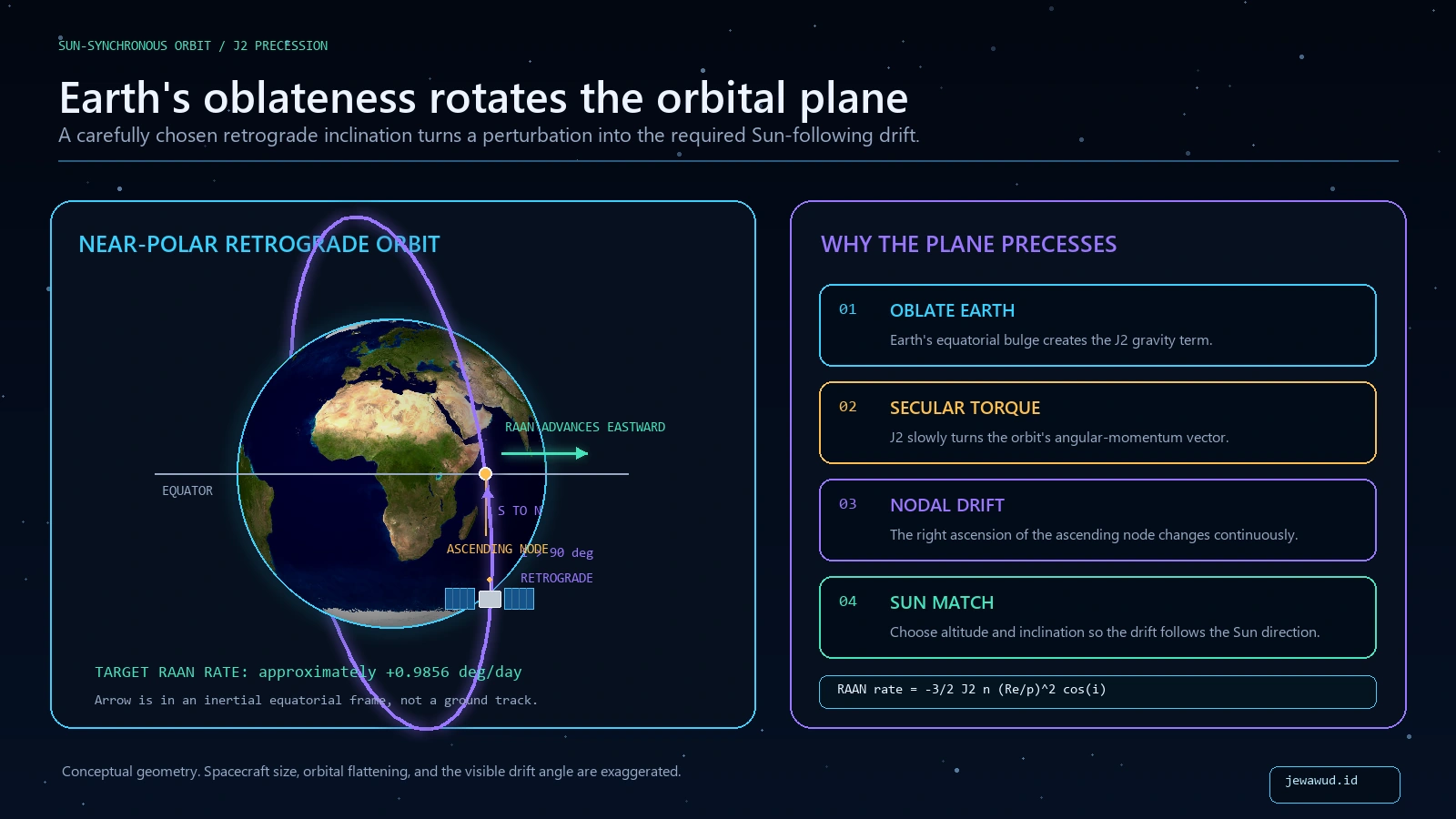

In a perfect two-body model, Earth is spherical and an orbital plane remains fixed. Real Earth is slightly wider at the equator than from pole to pole. This equatorial bulge changes the gravity field. The largest correction to spherical gravity is called the second zonal harmonic, or `J2`.

`J2` produces a torque-like secular effect on an inclined orbit, causing the line of nodes to precess. For a retrograde orbit, the sign of the cosine of inclination makes the RAAN drift eastward. Mission designers do not fight this perturbation; they choose the orbit so the natural `J2` drift supplies almost exactly the required Sun-following rate.

For a circular design, the first-order nodal rate is proportional to `J2`, mean motion, the square of Earth radius divided by orbital size, and the cosine of inclination. The influence becomes weaker at higher altitude. A higher circular SSO therefore needs a more retrograde inclination to recover the same nodal rate.

Local solar time describes the Sun's position relative to a longitude. Local solar noon occurs when the Sun crosses the local meridian. In a simplified mean-solar-time model, Earth rotates 15 degrees of longitude per hour, so a 10:30 crossing occurs 1.5 hours, or 22.5 degrees, west of the local-noon meridian.

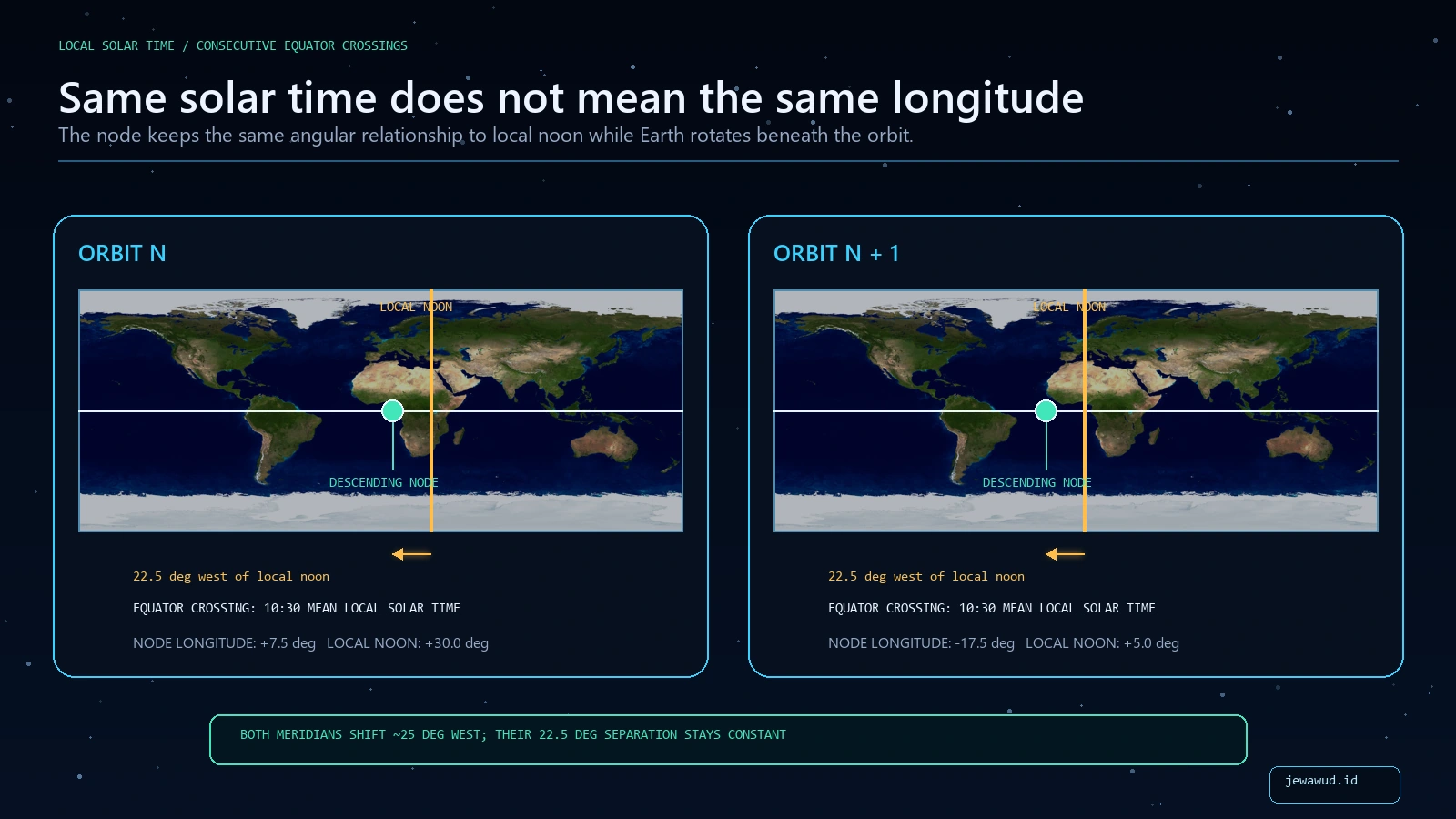

On the next orbit, Earth has rotated beneath the spacecraft. The satellite crosses the equator at a different longitude and a different UTC, but the node remains about 22.5 degrees west of the new local-noon meridian. Its mean local solar time is therefore still about 10:30.

This is the most common SSO misunderstanding: "same local time" does not mean "same location every orbit," "same longitude," or "same UTC." A specific location is revisited only when the moving ground track and sensor swath cover it again. Repeat cycles depend on orbital period, altitude, Earth rotation, and mission design.

Orbit descriptions often specify local time of ascending node (`LTAN`) or local time of descending node (`LTDN`). The ascending node is the south-to-north equator crossing; the descending node is north-to-south. For a near-circular orbit, the opposite node occurs roughly half an orbit later and about 12 hours apart in local solar time.

A mission described as a 10:30 descending-node orbit therefore crosses the equator north-to-south at approximately 10:30 mean local solar time. Its ascending crossing is near 22:30 local solar time on the night side. The exact operational definition may use mean or apparent local solar time, so mission documentation must be read carefully.

The chosen crossing time changes the appearance and usefulness of data. Morning passes can offer lower Sun angles and longer shadows that reveal terrain structure. Afternoon passes may support different cloud, vegetation, or thermal objectives. Radar missions can operate through darkness and many clouds, but their power, thermal, and calibration requirements can still make a particular local-time plane valuable.

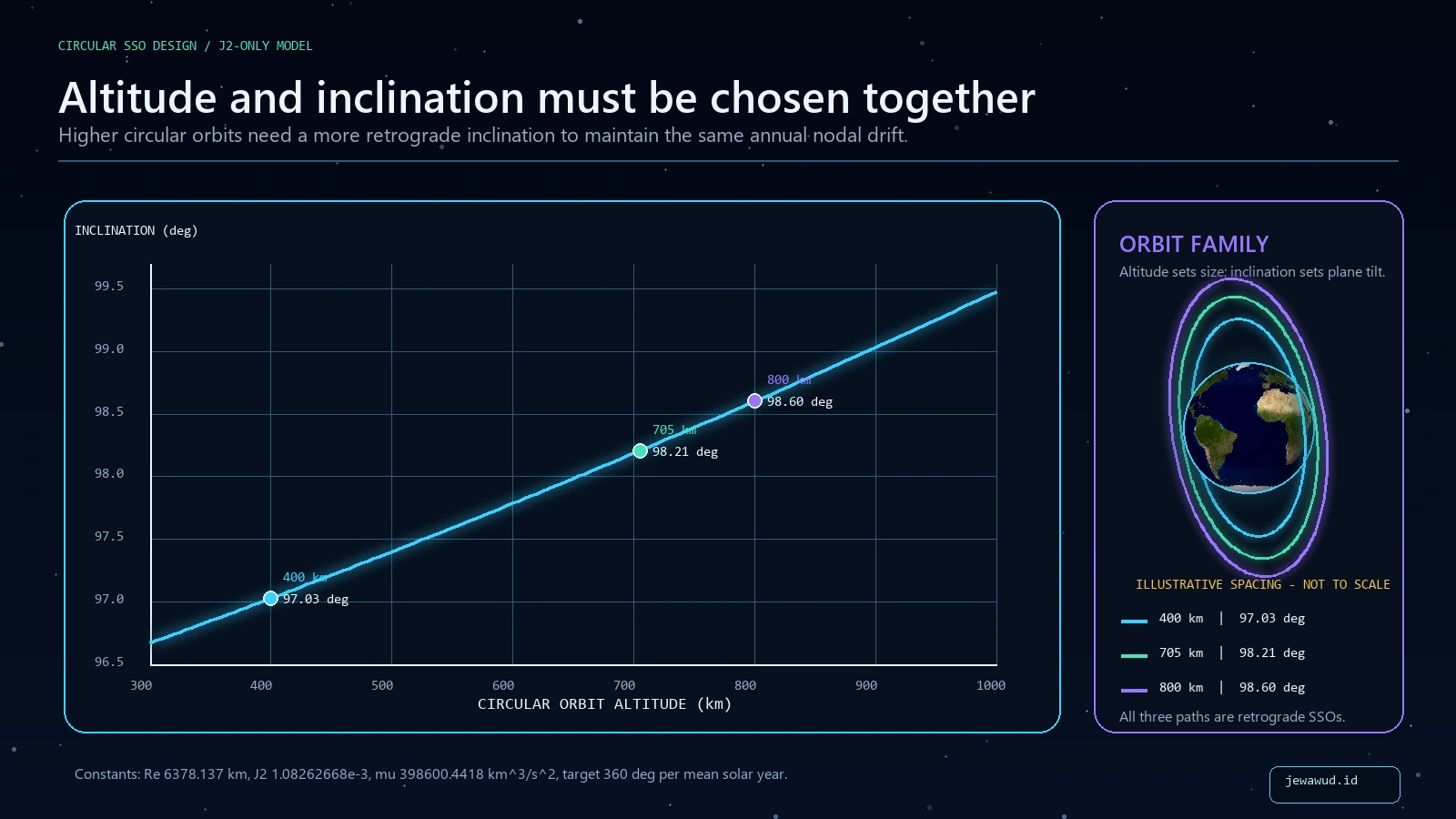

There is no single Sun-synchronous altitude and no single Sun-synchronous inclination. The two must be selected together. For the circular `J2`-only curve shown below, 400 km requires about 97.03 degrees, 705 km requires about 98.21 degrees, and 800 km requires about 98.60 degrees to target 360 degrees of nodal motion per mean solar year.

These are model values, not commands for a real mission. Eccentricity changes the semilatus rectum in the nodal-rate equation. Atmospheric drag slowly reduces orbital size, launch injection has errors, and lunar, solar, and higher-order gravity effects add smaller changes. Operational missions may perform maintenance maneuvers or accept a limited amount of local-time drift.

The curve also explains why copying an inclination from another satellite can be wrong. A 98.2-degree orbit may be Sun-synchronous near one altitude but precess at the wrong rate at another. Orbit class labels are consequences of a complete set of orbital elements, not isolated numbers.

Remote-sensing instruments often compare the brightness, color, temperature, or structure of the same region over time. A large change in Sun angle can change shadow length, surface reflectance, and apparent texture even when the ground itself has not changed. By holding local solar time approximately constant, SSO data is easier to compare across repeated observations.

This supports long-term monitoring of vegetation, ice, coastlines, cities, fires, floods, clouds, and land-use change. Consistent lighting does not make every image identical. Seasons change solar elevation, weather blocks the surface, atmospheric aerosols affect radiance, and sensor viewing geometry varies across a swath. SSO controls one important variable rather than eliminating all variability.

The orbit also provides broad geographic access. A near-polar ground track reaches high latitudes while Earth rotation moves successive passes across new longitudes. Wide-swath instruments can approach global coverage over one or several days, while high-resolution narrow-swath instruments trade coverage for detail.

A dawn-dusk SSO aligns its orbital plane near Earth's day-night terminator. The spacecraft spends much of its orbit near sunrise or sunset conditions. This can provide long periods of sunlight for solar arrays and a stable thermal environment, though eclipse behavior still depends on season, altitude, and exact geometry.

Dawn-dusk is not automatically best for optical surface imaging because illumination near the terminator can be weak and shadows extreme. It is selected when the mission benefits from its power, thermal, radar, atmospheric, or lighting characteristics. NASA describes NISAR, for example, as using a polar Sun-synchronous dawn-dusk orbit for its radar observation plan.

Morning, afternoon, and dawn-dusk planes are therefore mission choices, not quality rankings. A useful orbit matches the sensor and science objective. The same local-time property can support very different spacecraft.

NASA's Terra spacecraft operates in a circular Sun-synchronous polar orbit at about 705 km with an inclination published near 98.5 degrees and a period around 99 minutes. Its morning geometry supports a suite of instruments that observe Earth's atmosphere, land, ocean, and radiation budget.

CloudSat flew in a 705 km, 98.2-degree Sun-synchronous orbit with a 99-minute period while part of the Afternoon Constellation. Its cloud-profiling radar demonstrates that SSO is not limited to ordinary cameras. Multiple spacecraft can use similar local-time planes to coordinate complementary measurements.

NOAA polar environmental satellites have used morning and afternoon Sun-synchronous planes with distinct equator-crossing times. Together, different local-time planes sample atmospheric conditions at useful times of day. These mission-specific examples also show why an SSO should be described with altitude, inclination, node time, and repeat or revisit behavior rather than by the label alone.

Jewawud Orbital Tracker (JOT) is a live orbital map that propagates public TLE data and displays satellite positions, paths, and ground tracks. In JOT, an SSO candidate usually appears in low Earth orbit with a near-polar retrograde inclination. Successive ground tracks shift across longitude while maintaining a stable relationship to the day-night cycle.

Do not identify SSO from one screenshot alone. Check the inclination, altitude, orbital plane, and equator-crossing behavior over time. TLE data provides mean elements suitable for SGP4 propagation, but local solar time and long-term nodal drift are time-dependent quantities. Read What Is SGP4? and What Is TLE Data? to understand what the tracker is calculating.

The Orbital Mechanics Planner can help compare altitude and period, while Satellite Ground Tracks Explained shows why near-polar paths become repeating waves on a map. These tools are educational visualizations, not flight-dynamics certification systems.

"Sun-synchronous means the satellite stays in sunlight." No. Many SSOs enter eclipse on each revolution. Dawn-dusk geometry can reduce eclipse exposure, but Sun-synchronism itself only controls plane orientation relative to the Sun.

"The satellite passes the same city every day at exactly the same time." Not necessarily. Local solar time is approximately preserved when a location is revisited, but exact repeat coverage depends on the ground-track cycle and sensor swath.

"Any polar orbit is Sun-synchronous." No. SSO requires the correct nodal precession, which depends strongly on altitude, inclination, and eccentricity.

"The orbital plane is fixed." It is nearly fixed relative to the Sun, not inertial space. Its RAAN deliberately precesses about one degree per day.

"Identical local time guarantees identical images." It improves lighting consistency, but seasons, weather, atmosphere, viewing angle, and surface change still affect observations.

Why are most SSOs retrograde? Inclinations greater than 90 degrees give the `J2` nodal drift the eastward sign needed to follow the annual Sun direction.

What altitude is Sun-synchronous? There is a family of valid designs. Many Earth-observation satellites operate around 600 to 800 km, but altitude must be paired with the correct inclination and eccentricity.

What does 10:30 LTDN mean? The spacecraft crosses the equator north-to-south at approximately 10:30 mean local solar time.

Does SSO repeat the same ground track every day? Not automatically. Sun-synchronism controls solar-time geometry; repeat ground tracks require an additional period and Earth-rotation relationship.

NASA Earth Observatory: Catalog of Earth Satellite Orbits - SSO local solar time, illumination consistency, polar coverage, and orbit maintenance.

European Space Agency: Types of Orbits - polar and Sun-synchronous orbit definitions and common altitude range.

NASA Terra: About the Mission - Terra altitude, inclination, period, and Sun-synchronous polar orbit.

NASA Science: CloudSat - Sun-synchronous orbit type, altitude, inclination, period, and A-Train context.

NOAA SARSAT FAQ - near-polar retrograde geometry and approximately one-degree-per-day precession.
