Reading Satellite Ground Tracks:
The Map Is Not the Orbit

JOT (Jewawud Orbital Tracker) is an interactive real-time satellite map developed by Jewawud Propulsion Laboratory. It uses TLE data and SGP4 propagation to display satellite positions, orbital paths, ground tracks, and telemetry around a three-dimensional Earth. This guide explains the ground-track patterns visible in JOT and other satellite-tracking applications.

A satellite ground track is the path traced by the point directly beneath a spacecraft on Earth's surface. That point is called the subsatellite point. On a spherical Earth, it is the surface intersection of the Earth-center-to-satellite line. Real trackers often report geodetic latitude on an ellipsoid instead: the reference direction is the local surface normal, not the line to Earth's center. These conventions differ slightly away from the equator and poles; CelesTrak describes the oblate-Earth conversion.

This distinction matters because a ground track is not a side view of an orbit and it does not show the spacecraft's altitude. It compresses a three-dimensional position into latitude and longitude. Two satellites can cross the same point on a map while flying at very different altitudes, speeds, and times.

Trackers such as JOT calculate the spacecraft position for a sequence of timestamps, convert those positions into Earth-fixed coordinates, and connect the resulting subsatellite points. The familiar curve is therefore a time-ordered projection, not a physical trail left behind the spacecraft.

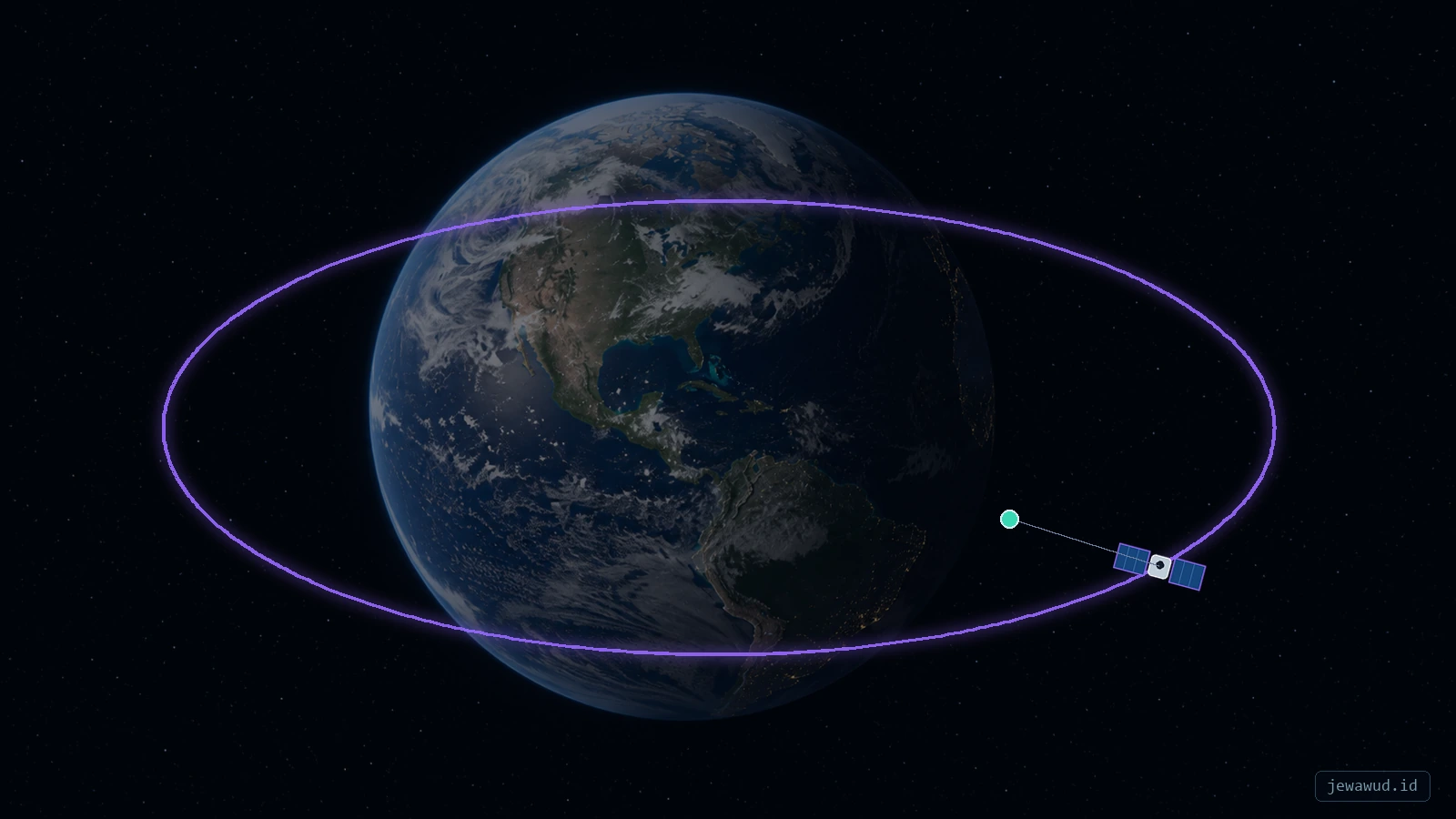

Imagine a circular orbit as a tilted ring around a globe. The satellite moves smoothly through that orbital plane, but a rectangular world map stretches the spherical Earth into a flat surface. Latitude rises as the spacecraft travels north, reaches a maximum, falls through the equator, reaches a southern minimum, and rises again. On a flat map, that repeated north-south motion resembles a sine wave.

The wave is a consequence of geometry and map projection. The spacecraft is not steering left and right in space. In an idealized two-body orbit, it follows a smooth ellipse in one plane while Earth turns beneath it.

The ends of a rectangular map also create a visual discontinuity. When longitude passes 180 degrees east or west, the plotted line wraps to the opposite edge. A line that appears broken at the map boundary is usually continuous around the globe.

For a prograde orbit with an inclination below 90 degrees, the ground track normally reaches latitudes approximately equal to the inclination. The International Space Station, with an inclination near 51.6 degrees, travels between roughly 51.6 degrees north and 51.6 degrees south. It does not pass directly above locations farther poleward.

A near-equatorial orbit produces a narrow wave close to the equator. A near-polar orbit reaches close to both poles and can eventually observe most of Earth as the planet rotates. For an ideal fixed orbital plane, the maximum absolute geocentric latitude is min(i, 180 degrees - i). A 98-degree retrograde orbit therefore reaches 82 degrees north and south, not 98 degrees. A geodetic map can give slightly different limits because Earth is oblate.

Inclination tells you the north-south envelope, but it does not tell you how frequently a place is visited. Revisit time also depends on altitude, orbital period, sensor field of view, constellation size, and whether the ground track repeats.

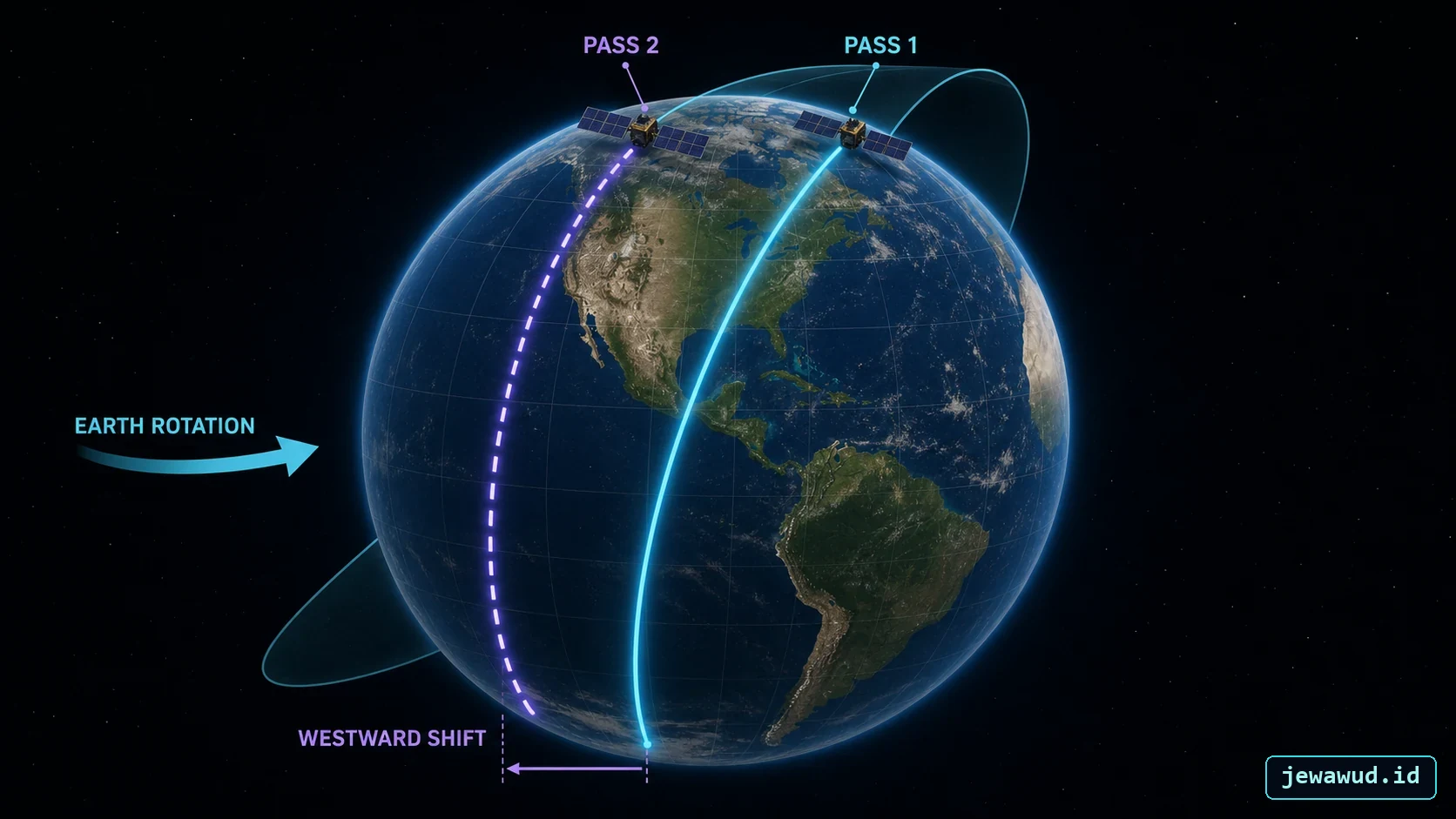

The orbital plane of a low Earth satellite remains nearly fixed in inertial space over a short time, while Earth rotates eastward underneath it. By the time the satellite completes one orbit, Earth has turned through part of a rotation. The next ground track therefore crosses the equator at a different longitude.

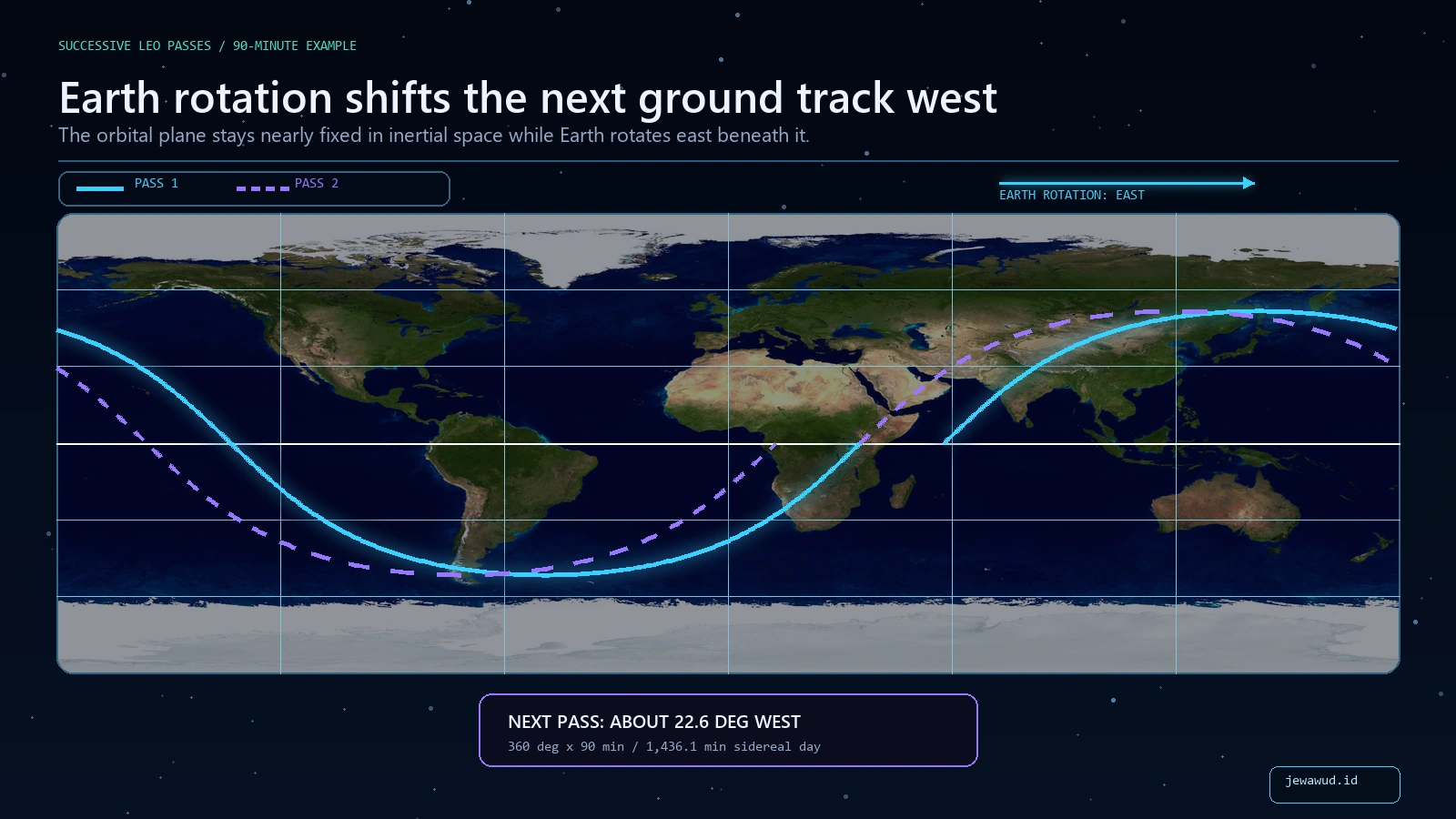

For a 90-minute orbit, the fixed-plane approximation gives 360 degrees × 90 / 1,436.068 = 22.56 degrees west between consecutive ascending-node longitudes. The denominator is a sidereal day in minutes. A crossing at 110 degrees east would be followed near 87.44 degrees east. These are our illustrative inputs, not an actual ISS pass forecast; nodal precession and the nodal period refine the result.

On a typical map, successive prograde passes appear shifted westward. This is not orbital drift in the everyday sense. Much of the visible shift comes from the coordinate system rotating with Earth. This is also why a static orbit ring on a 3D globe and a moving ground-track line on a 2D map can both be correct.

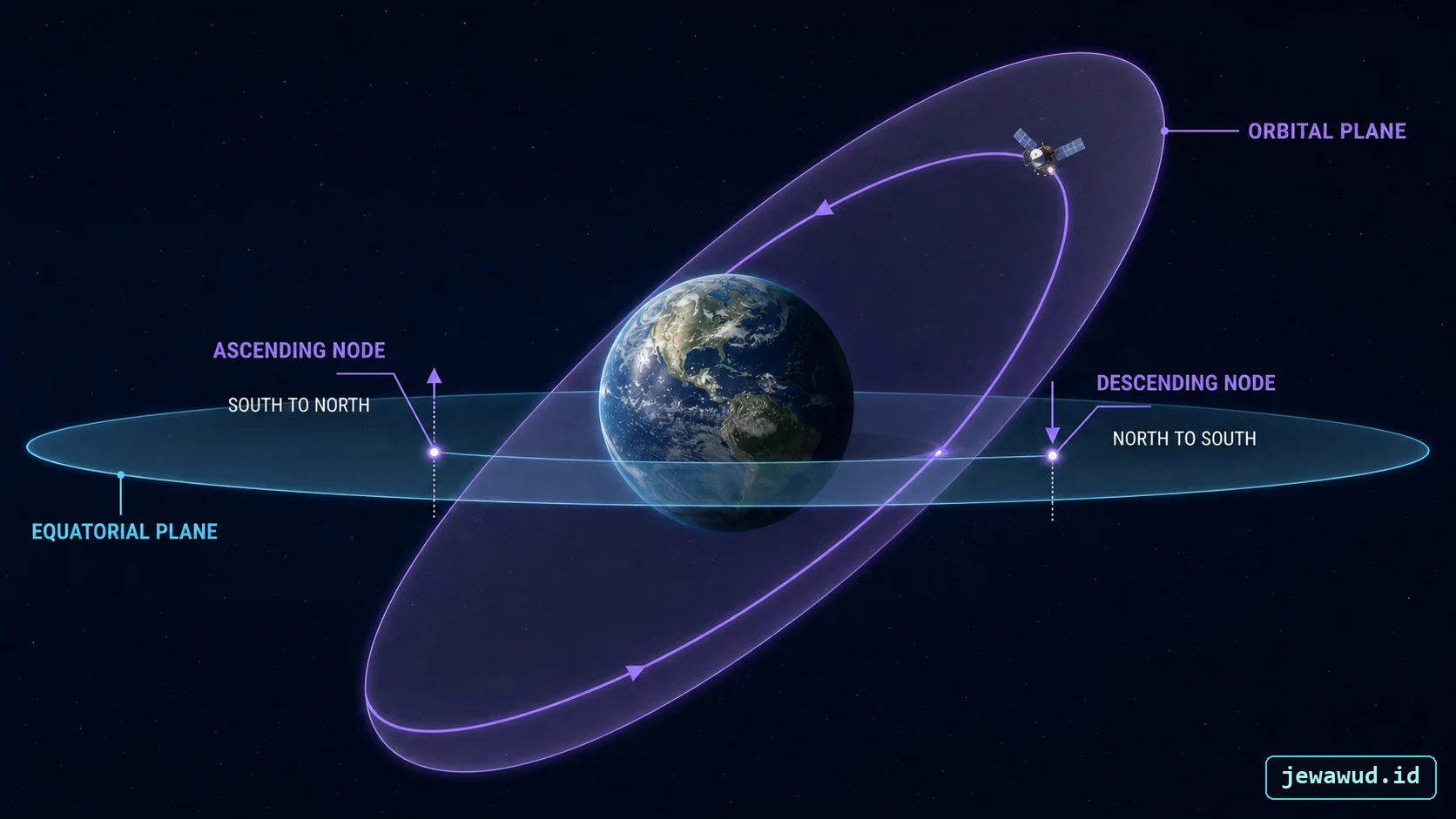

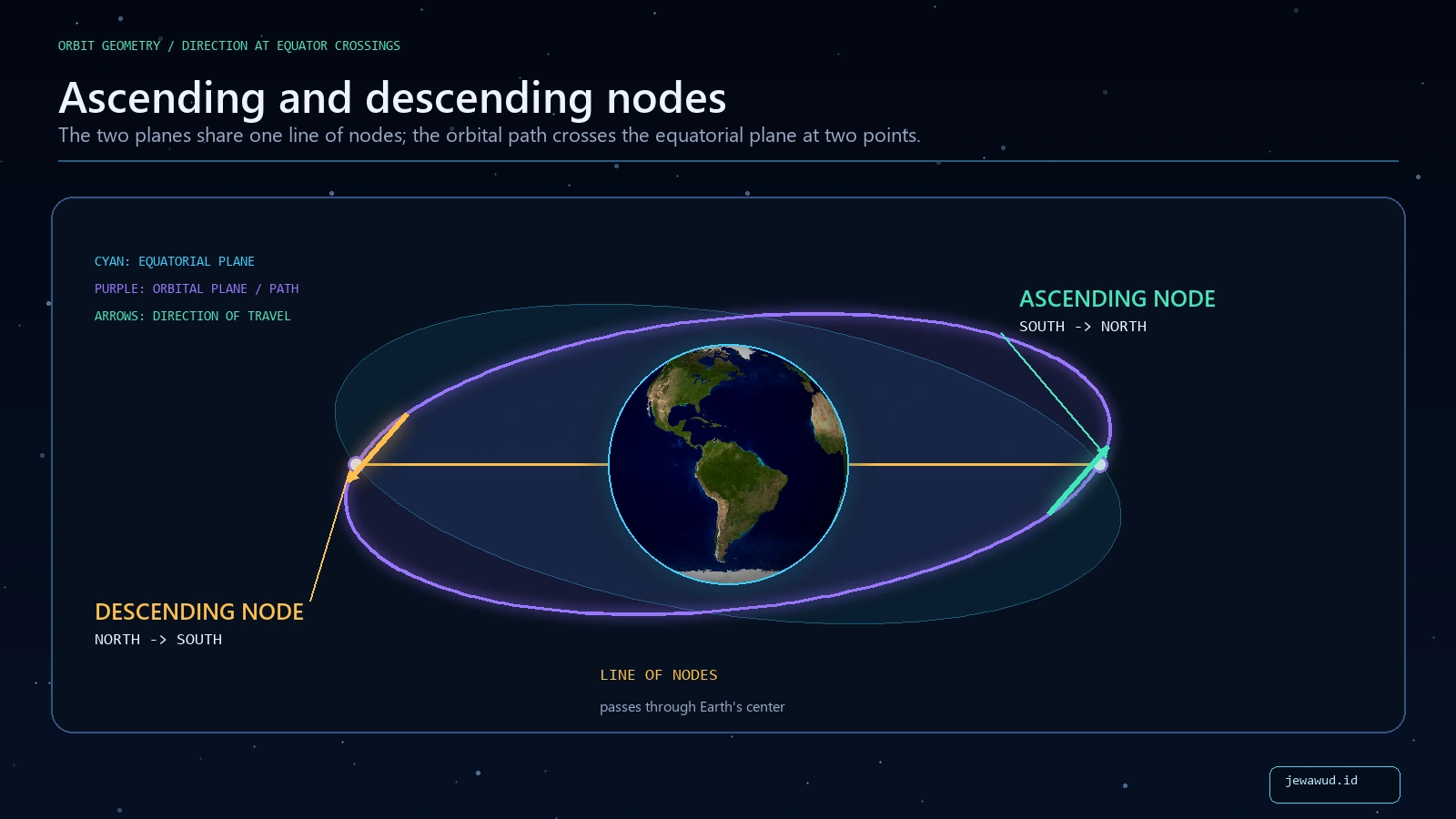

A non-equatorial, bound orbit crosses the equator twice per revolution. An exactly equatorial orbit lies in the equatorial plane, so it has no distinct ascending or descending node. At the ascending node, the spacecraft moves from the Southern Hemisphere into the Northern Hemisphere. At the descending node, it moves from north to south.

These crossings help operators read direction from a map. If the track climbs toward higher northern latitude as time advances, the satellite is on an ascending pass. If it falls toward southern latitude, it is descending. The longitude of the ascending node is also connected to the orientation of the orbit in space, commonly described with the right ascension of the ascending node, or RAAN.

RAAN is measured in an inertial reference frame, while map longitude belongs to an Earth-fixed frame. Converting between them requires the current orientation of Earth, which is why accurate timestamps are essential for a tracker.

Satellite maps often draw a line before and after the current marker. The segment behind the marker represents previously propagated positions. The segment ahead represents predicted positions generated from the same orbital model. Neither segment is a permanent object in space; both are sampled positions associated with timestamps.

The displayed prediction window matters. One period covers one revolution in space, but its Earth-fixed ground track is generally not a closed loop: Earth has rotated between the endpoints. Several periods create multiple shifted traces. A long window can look impressive but may become visually confusing, especially when thousands of satellites are present.

A good tracker distinguishes the selected satellite, its current position, and its predicted path without hiding the surrounding constellation. For a future-only trace, the line begins at the current marker. A past-and-future trace instead places the marker inside its time window. Both should use consistent coordinates and timestamps, with a deliberate break or wrap at the antimeridian.

A repeat ground-track orbit is designed so that, after a particular number of revolutions and Earth rotations, the satellite returns close to an earlier path over the surface. This does not necessarily mean it returns to the same location on every orbit. The repeat may occur after several days and many revolutions.

Mission designers use repeat cycles for mapping, radar imaging, altimetry, and other observation tasks that benefit from consistent geometry. The orbital period must be chosen in relation to Earth's rotation, while perturbations and nodal precession must also be considered.

Revisit time is related but different. A sensor may observe the same area without flying directly over the same subsatellite path because it can look to either side of nadir. A wide-swath instrument can revisit a region sooner than the exact ground track repeats.

A satellite in a circular geostationary orbit moves eastward above the equator with a period matched to Earth's sidereal rotation. Its subsatellite point remains near one longitude, so its ground track is essentially a point rather than a wave.

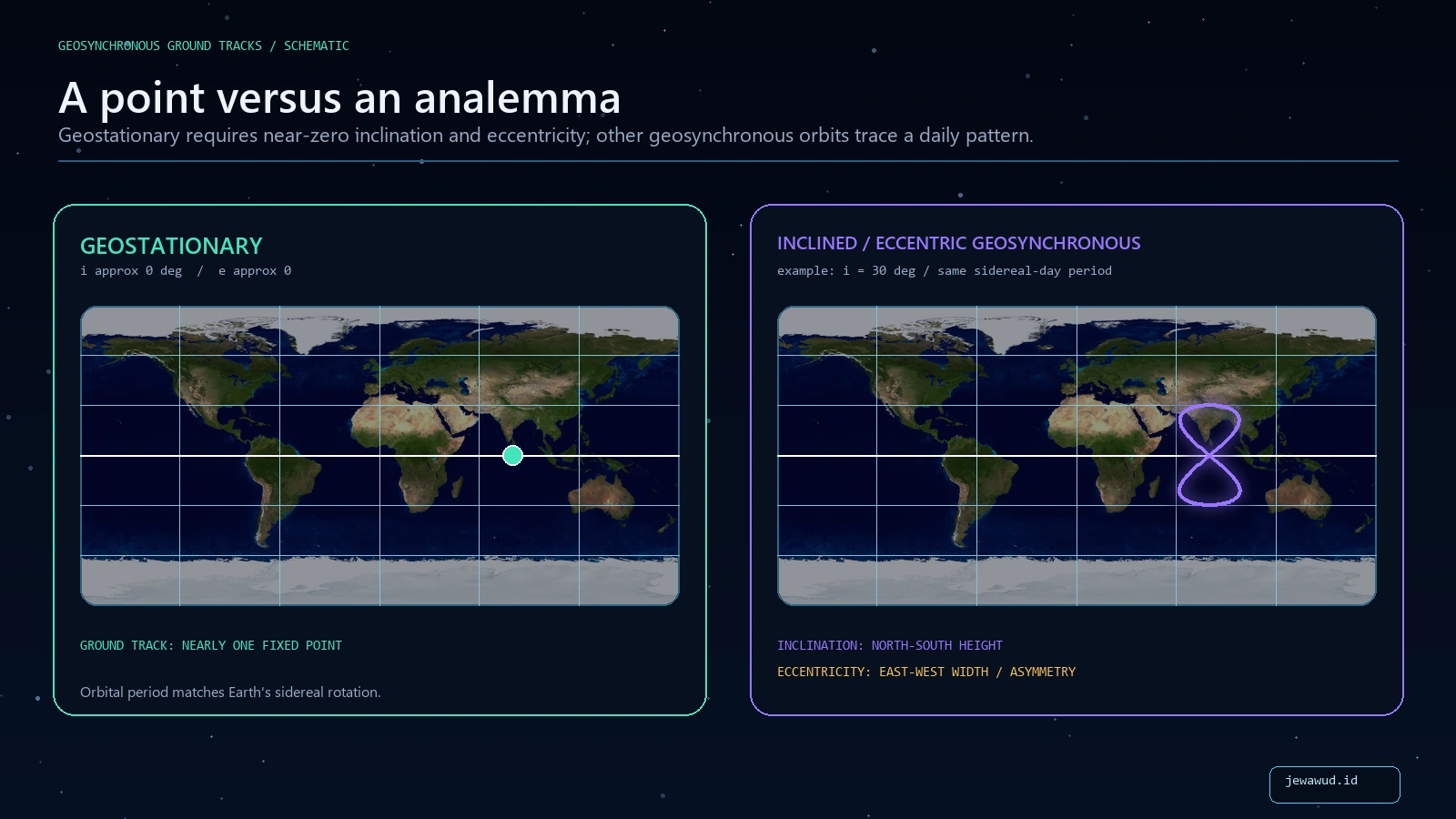

Geosynchronous means a sidereal-day period; it does not prescribe one map shape. In a circular, inclined, prograde geosynchronous orbit, inclination produces both north-south motion and an east-west oscillation in projected longitude, forming a figure eight. An equatorial eccentric case stays on the equator and moves east and west rather than drawing a north-south figure eight. Combining inclination and eccentricity can distort the pattern, with its shape depending on apsidal orientation.

Use a pattern as a clue, not a unique orbit classification. Check period, inclination, eccentricity and the displayed time window before assigning an orbit type. A map alone cannot distinguish every trajectory that projects to a similar shape.

JOT begins with orbital data such as a Two-Line Element set. At each requested UTC time, SGP4 returns Cartesian position and velocity in the True Equator, Mean Equinox (TEME) frame. The tracker then accounts for Earth's orientation, transforms the position into an Earth-fixed frame such as ECEF, and converts it to geodetic latitude, longitude, and altitude.

Repeating this process across many timestamps creates the samples used for the ground track. The selected satellite marker and its orbit line must use the same time basis, reference frames, and longitude convention. If one uses TEME coordinates while the other uses Earth-fixed coordinates, the line may appear detached or on the opposite side of the planet.

TLE data is not a timeless description. Its epoch and the propagation interval matter. Predictions generally become less trustworthy as the TLE ages, particularly for low satellites affected by atmospheric drag and for spacecraft that maneuver.

Start with the selected object's NORAD ID, TLE epoch and displayed UTC time. A label saying “live” does not establish fresh observations. Follow the trace in increasing time to distinguish ascending from descending motion; without timestamps or arrows, a still image cannot establish which direction the object is traveling.

For a simple map-edge check, imagine successive samples at 179 degrees east and 179 degrees west. Their wrapped longitude difference is only 2 degrees, not a 358-degree trip across the map. A renderer must split or wrap the short segment at the edge. That is a display convention, not a sudden spacecraft maneuver.

In the Satellite Index, the ground-track panel is labeled “last 90 minutes.” Read that as a past model interval, not a forecast. The catalog blocks live propagation when its data-age safeguard is exceeded; a blank track with a stale-data notice should not be interpreted as an absent satellite. Follow the source and epoch rather than assuming every displayed record has a current orbit.

Mistake one: treating the line as altitude. A taller wave means greater latitude reach, not greater height above Earth. Altitude must be read separately.

Mistake two: assuming the satellite visits every place under the curve. The line marks the subsatellite point. Actual coverage depends on antenna or sensor footprint and the required elevation angle.

Mistake three: interpreting map-edge jumps as maneuvers. Longitude wraps at the antimeridian, so a continuous track can appear split.

Mistake four: expecting the next orbit to repeat the same line. Earth rotates during every revolution. Most low Earth ground tracks shift between passes.

Mistake five: trusting a long prediction without checking data age. Propagation quality depends on the orbit, elapsed time, maneuvers, drag, and the freshness of the source elements.

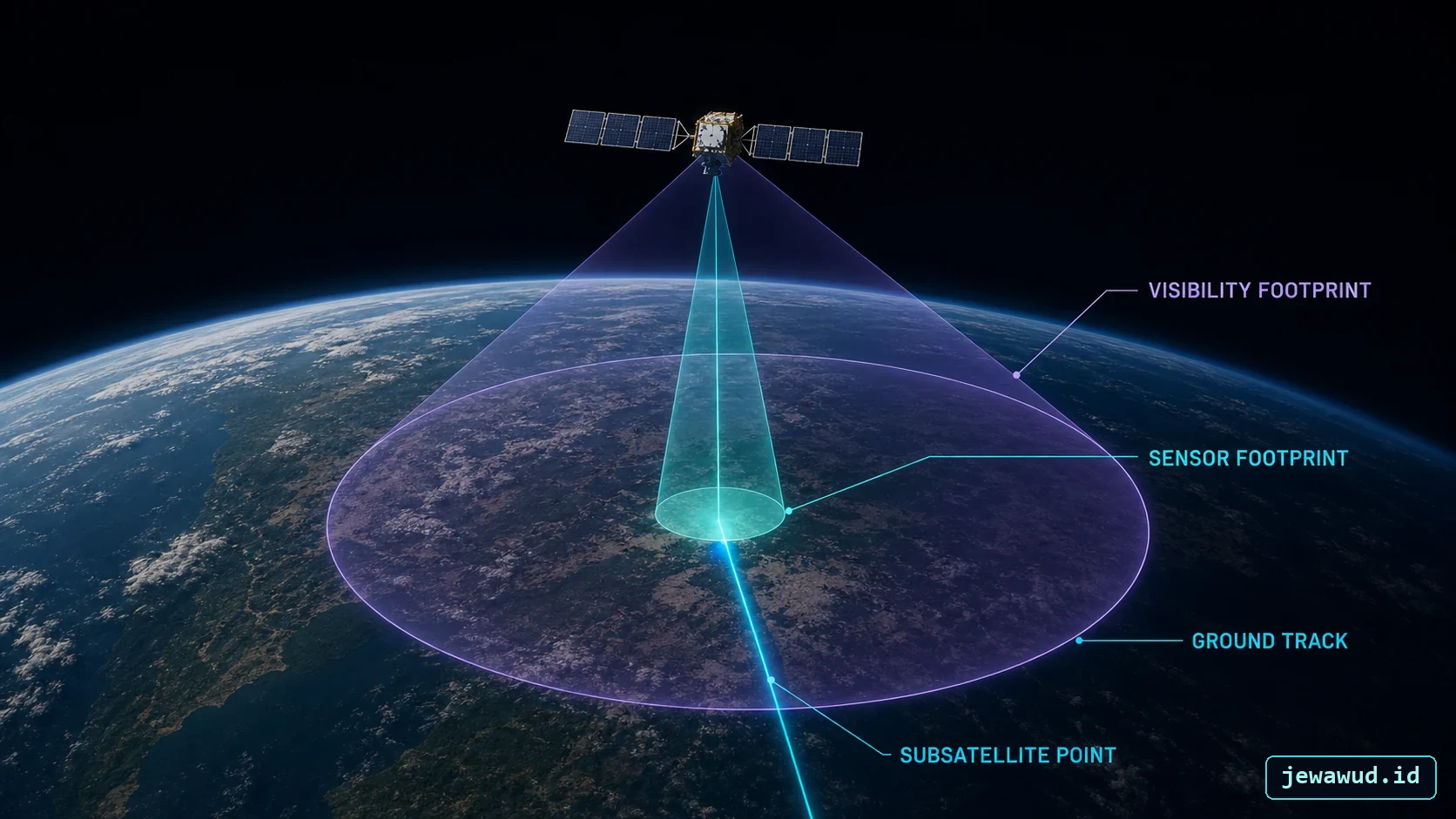

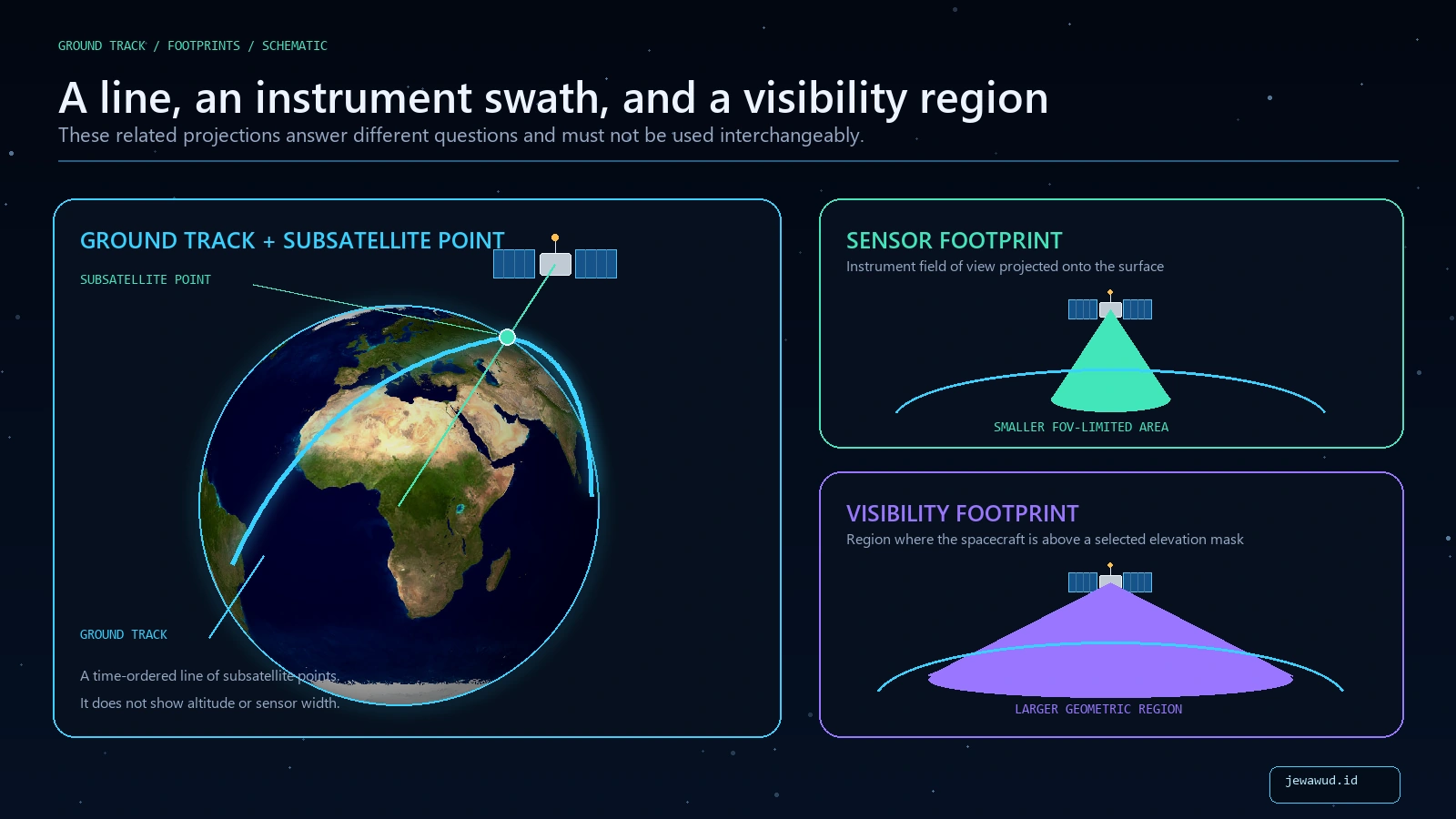

The ground track is a single path of subsatellite points. A sensor footprint is the region an instrument can observe at a given moment. A visibility footprint describes where an observer could potentially see or communicate with the satellite above a chosen elevation limit.

These areas can extend hundreds or thousands of kilometers away from the ground track, especially at higher altitude. A satellite does not need to pass directly overhead to be geometrically above the horizon. Naked-eye visibility also requires suitable illumination, brightness and sky conditions. Likewise, being inside a theoretical footprint does not guarantee a useful radio link or image; terrain, atmosphere, antenna direction, lighting, and mission constraints still matter.

Keeping these three ideas separate prevents a map line from promising more coverage than the spacecraft can actually provide.

Why does a satellite track move west on the map? Earth rotates eastward beneath the orbit, so successive prograde passes usually appear at more westerly longitudes.

Does the wave show the satellite moving up and down? It shows changing latitude on a flat projection, not vertical altitude.

Why is a track broken at the edge of the map? The line crosses the antimeridian and wraps between +180 and -180 degrees longitude.

Can two satellites share the same ground track? They can cross similar latitude-longitude paths at different times or altitudes, but that does not mean their complete orbits are identical.

This guide follows standard orbital-mechanics and tracking concepts described in CelesTrak's orbital coordinate-system reference, NASA's Space Station Orbit Tutorial, and the European Space Agency overview of orbit types.

For the data and propagation pipeline behind modern trackers, continue with What Is TLE Data? and What Is SGP4?. For the orbital tilt that defines latitude reach, read Understanding Orbital Inclination.
