Understanding
Orbital Inclination

Orbital inclination is measured as the angle between a spacecraft's orbital plane and Earth's equatorial plane. A zero-degree orbit stays above the equator. A polar orbit passes near the poles. Many crewed and observation missions sit somewhere between those extremes.

The number looks simple, but it controls the maximum north and south latitude reached by the ground track. A 51.6 degree orbit, for example, can pass over latitudes up to about 51.6 degrees north and south.

Launch sites naturally favor certain inclinations because rockets inherit Earth's rotation and must avoid unsafe ground tracks during ascent. Reaching a very different inclination can require costly plane-change maneuvers.

That is why mission planners consider inclination early. It affects launch azimuth, propellant budget, visibility, coverage, and sometimes even which launch site makes sense.

Earth observation satellites often use high-inclination or sun-synchronous orbits to cover more of the planet. Communications satellites may prefer other orbital families depending on service region, altitude, and latency.

When you compare mission profiles, inclination helps explain why two satellites at similar altitude can produce very different map patterns.

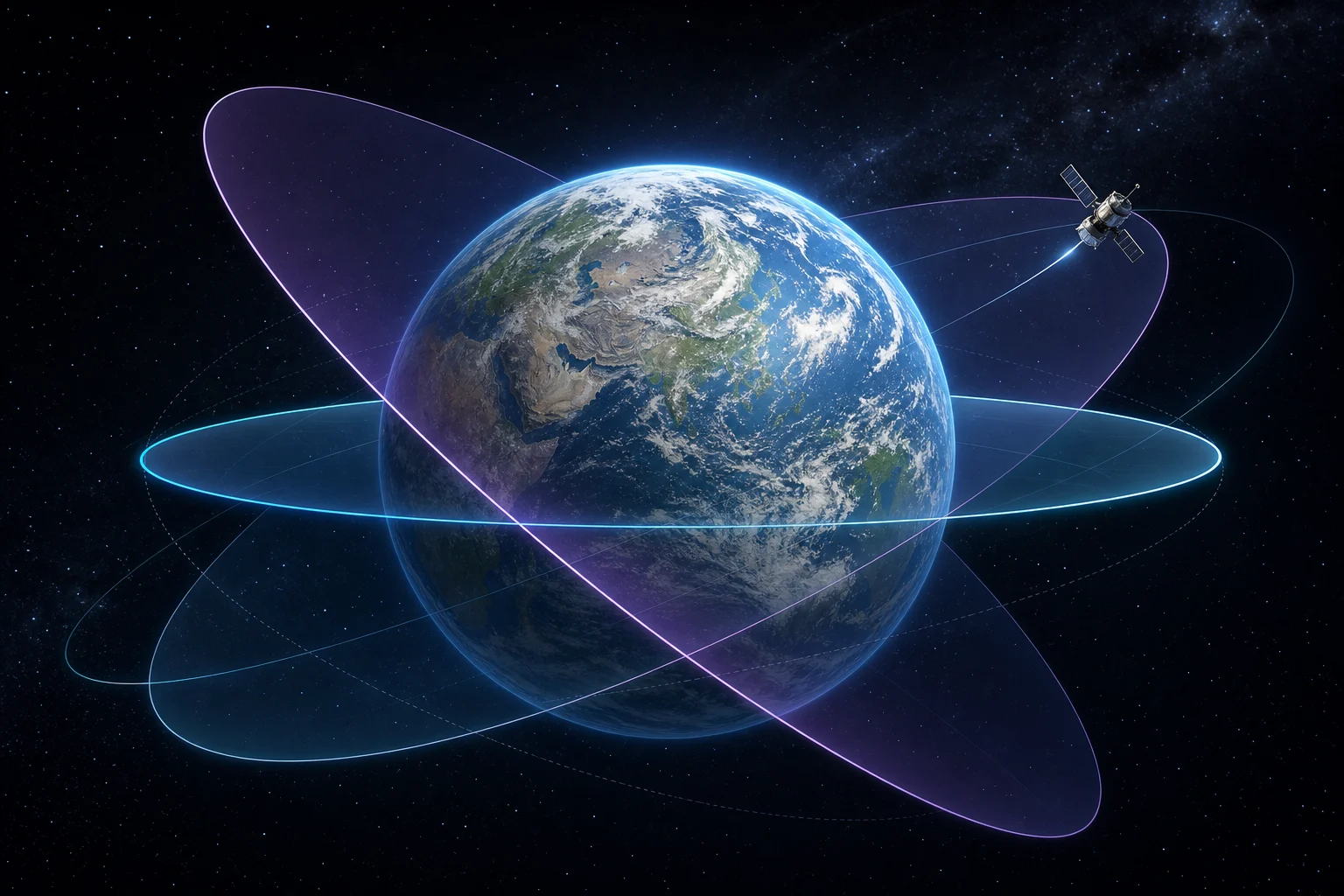

On a globe, inclination is easy to imagine as a tilted ring around Earth. On a flat map, that same orbit becomes a wave-like ground track. The highest and lowest points of that wave correspond roughly to the orbit's inclination limits.

The ground track also shifts because Earth rotates while the spacecraft orbits. A satellite does not pass over the exact same longitude each time unless its orbit is synchronized in a specific way. This is why live maps feel alive: the orbit plane, Earth rotation, and time all combine into one moving pattern.

For users, inclination is a quick clue. A low-inclination satellite stays close to the equator. A high-inclination satellite reaches more northern and southern regions. A near-polar satellite can build global coverage over time.

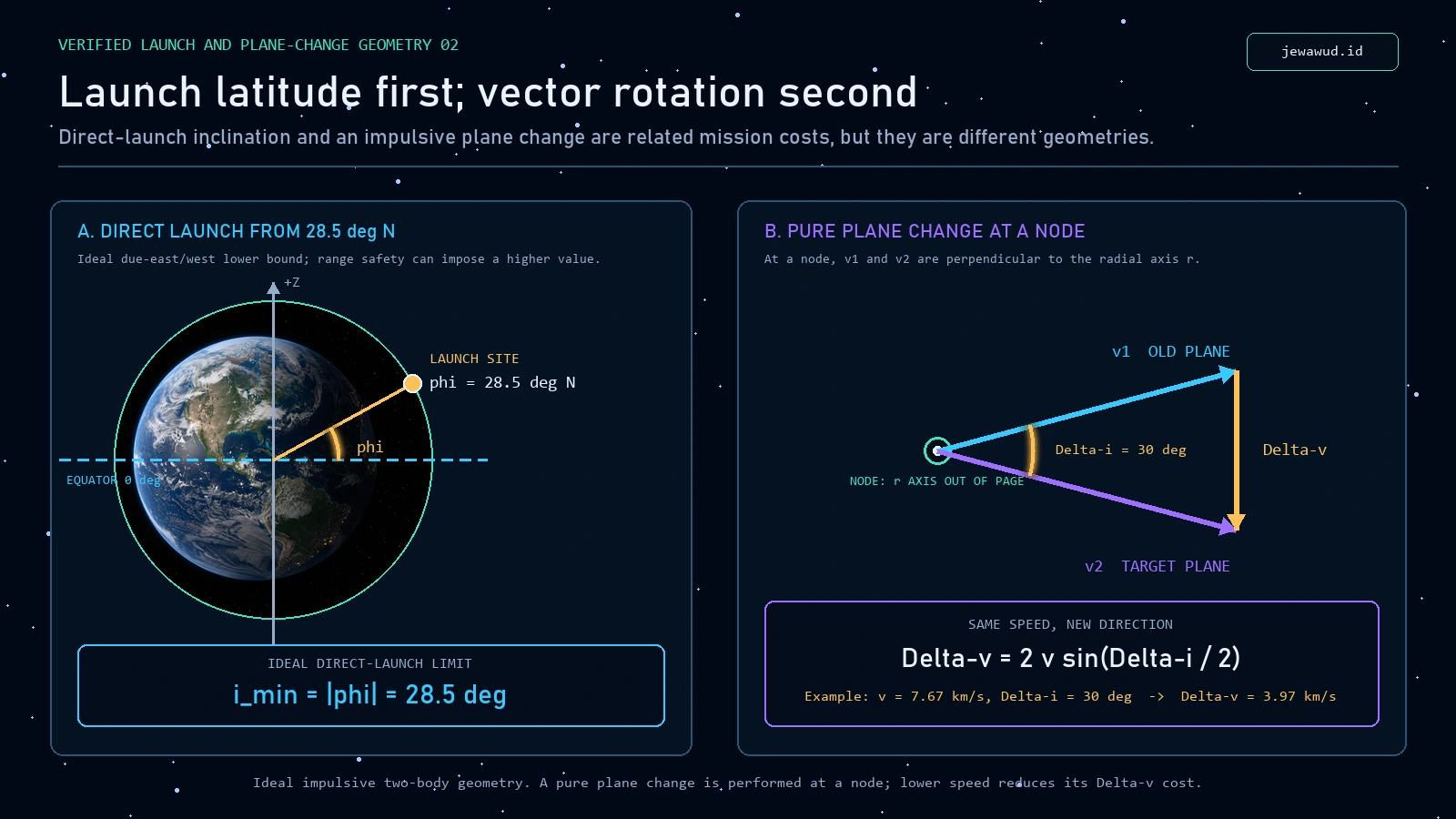

Changing inclination after launch can require a large amount of delta-v. The faster the spacecraft is moving, the more expensive a major plane change becomes. That is one reason mission designers try to launch into the right orbital plane from the beginning.

Small corrections are normal, but large inclination changes can consume precious propellant. For missions with limited onboard fuel, spending propellant on plane change may reduce operational lifetime or limit other maneuvers.

This is also why launch geography matters. A launch site near the equator can take better advantage of Earth's rotation for certain orbits. A site at higher latitude has different practical limits and safety corridors.

The ISS uses an inclination that allows access from its historical partner launch sites and gives coverage across a broad populated band of Earth. Sun-synchronous Earth observation satellites use high inclination so they can revisit places under similar lighting conditions. Equatorial or near-equatorial orbits are useful when coverage is focused around lower latitudes.

There is no single best inclination. The right value depends on mission goals: observation, crew access, communications coverage, launch site, energy budget, and operational constraints. That is why inclination is one of the first values worth checking when you inspect any orbit.

A simple way to read inclination is to think about latitude reach. A satellite in a 30 degree inclination orbit can pass above latitudes between about 30 degrees north and 30 degrees south. It will not directly pass over the poles. A near-polar satellite, by contrast, can eventually observe nearly every latitude as Earth rotates underneath it.

This does not mean every point inside the latitude band receives equal service. Altitude, sensor field of view, revisit time, and mission design all matter. But inclination sets the first geographic boundary. It decides which parts of Earth are naturally reachable without changing the orbital plane.

For a satellite tracker, inclination explains why some constellations form wide bands while others stay close to the equator. For a planner, it explains why a mission's target region should be considered before launch, not after orbit insertion.

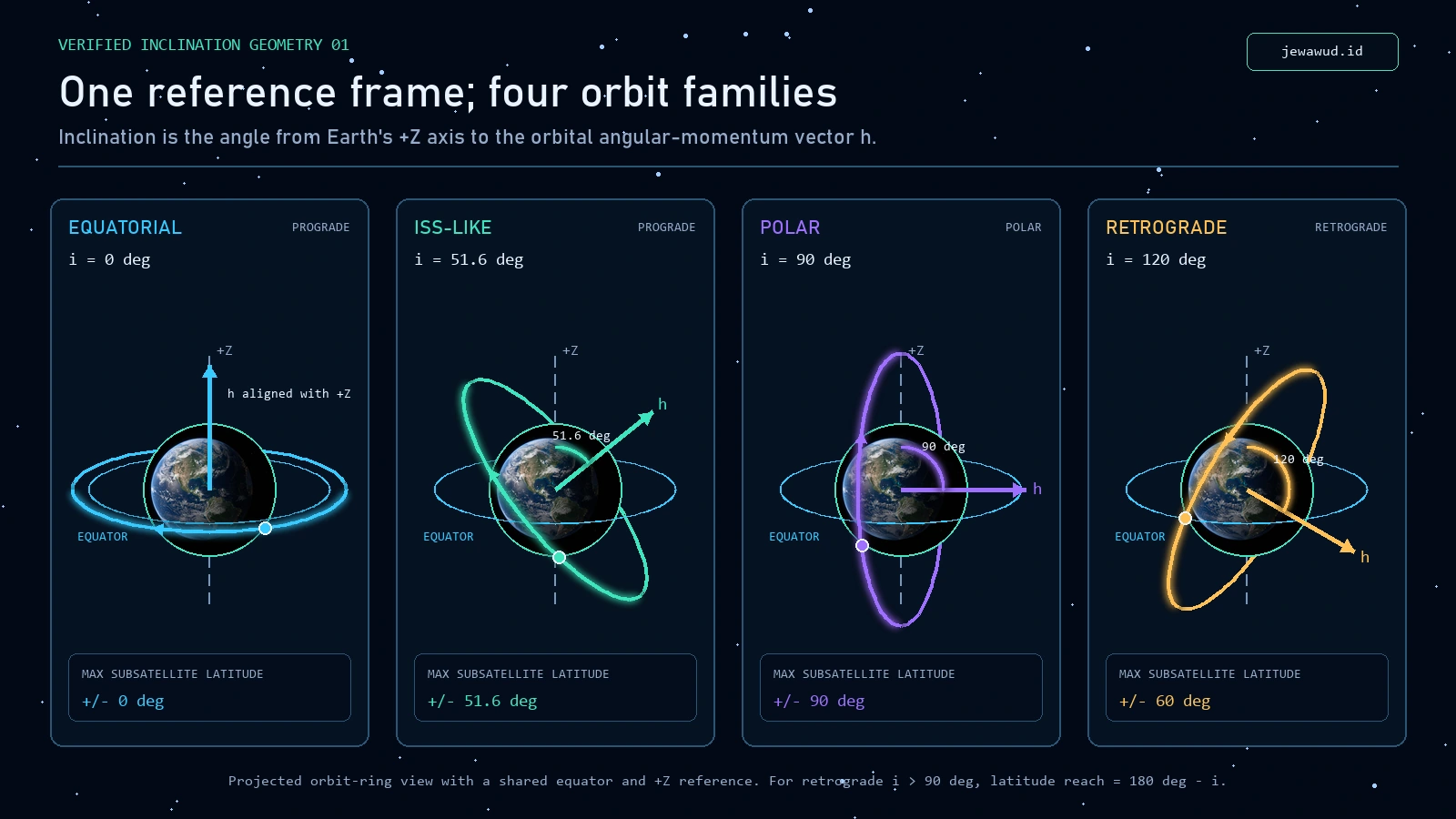

A prograde orbit travels in the same general direction as Earth's rotation and has an inclination less than 90 degrees. This can be energetically helpful because the launch vehicle may gain some benefit from Earth's eastward rotation. A retrograde orbit travels against Earth's rotation and has an inclination greater than 90 degrees.

Polar or near-polar orbits sit around 90 degrees. They are useful for global observation because Earth rotates under the orbital plane, allowing the satellite to pass over many longitudes over time. Sun-synchronous orbits are a special high-inclination case designed to keep lighting conditions more consistent for imaging.

These categories are not just vocabulary. They describe mission intent. A communications mission, a weather satellite, and an Earth imaging satellite can all choose different inclination strategies because they are solving different coverage problems.

Some ground tracks appear to repeat after a certain number of orbits, while others drift continuously. This depends on the relationship between orbital period, Earth's rotation, and orbital geometry. If the timing lines up, the satellite can revisit similar ground paths. If it does not, the path shifts in a more obvious way.

Altitude is part of the story because it influences orbital period. A higher satellite generally takes longer to complete one orbit. That changed period changes how far Earth rotates underneath before the satellite returns to a similar point in its path.

This is why inclination should not be studied alone. It works with altitude, eccentricity, period, and Earth rotation. A good orbital planner lets those values feel connected rather than isolated.

When planning a mission, inclination is one of the first filters. If the payload needs to observe high latitudes, a low-inclination orbit is a poor fit. If the mission focuses on equatorial regions, a very high-inclination orbit may waste coverage. If a crew vehicle must launch from a specific spaceport, reachable inclination options may be limited by geography and safety.

Inclination also affects rendezvous. To meet another spacecraft, a vehicle needs to align its orbital plane closely with the target. Launch timing becomes important because the launch site must rotate into the correct plane at the right moment.

For educational tools, this is where the concept becomes practical. Inclination is not just a number in a table. It is a mission constraint, a coverage decision, a launch design factor, and a visual signature on the map.

A launch window is partly about timing the launch site with the desired orbital plane. Earth rotates, so a spaceport is constantly moving under different orbital planes. For missions that must rendezvous with a station or enter a specific orbit, launching at the wrong time can make the mission inefficient or impossible with available propellant.

This is why crewed launches to a station can have precise timing requirements. The vehicle is not merely going "up"; it is entering a moving plane around Earth. If the plane alignment is wrong, the spacecraft may need an expensive correction after launch.

For an orbital planner, this makes inclination feel less abstract. It connects the map view, launch site, clock, and target orbit into one mission geometry problem.

The first mistake is treating inclination as altitude. A satellite can be high or low at many different inclinations. The second mistake is assuming a satellite covers every place inside its latitude band equally. Real coverage depends on sensor footprint, revisit time, elevation angle, and mission operations.

The third mistake is assuming an orbit line on a 2D map shows the orbit's true shape. It shows the ground projection of a 3D path on a rotating planet. That projection is useful, but it can visually exaggerate or hide parts of the geometry depending on map style.

Once those mistakes are avoided, inclination becomes one of the most helpful numbers in orbital mechanics. It quickly tells you what kind of mission you are probably looking at and what parts of Earth the spacecraft can naturally reach.

In JOT, inclination helps explain why satellite categories form different patterns around Earth. In JITM, it helps explain why ISS and Tiangong do not pass over exactly the same places. In Orbital Planner, it becomes part of the larger mission design conversation, alongside altitude, transfer paths, and burn timing.

The best way to learn is to switch between reading and interacting. Read the concept, open the app, look at a real orbit, then return to the explanation. That loop turns a number in a panel into something visible and memorable.

Is higher inclination always better? No. Higher inclination can improve latitude coverage, but it may not match the mission region or launch energy needs.

Can a satellite change inclination? Yes, but large plane changes are expensive and usually avoided unless the mission requires them.

Why do orbit lines look tilted differently in 3D and 2D? A 3D orbit is a plane around a sphere. A 2D map projection bends that motion into a ground track curve.
