Four Satellites, One Position
How GNSS finds you

GNSS, or Global Navigation Satellite System, is the general name for satellite constellations that provide positioning, navigation, and timing. The United States operates GPS. Europe operates Galileo, Russia operates GLONASS, and China operates BeiDou. Modern phones and survey receivers often combine signals from several constellations, increasing the number of satellites available in difficult environments.

Every complete system has three broad parts. The space segment is the constellation of navigation satellites. The control segment monitors their orbits and clocks and uploads updated navigation data. The user segment is the receiver in a phone, car, aircraft, ship, timing station, or scientific instrument. GPS.gov describes these same three segments for GPS.

The satellites do not watch your phone and send back its coordinates. Their navigation signals are one-way broadcasts. Each satellite repeatedly announces, in effect: this is where I am, this is the time according to my clock, and this is information needed to interpret my signal. The receiver listens to several satellites and calculates the answer locally.

Global navigation constellations mainly use medium Earth orbit. GPS satellites fly roughly 20,000 km above Earth and circle the planet about twice per sidereal day. The nominal Galileo constellation described by ESA uses an altitude of 23,616 km. These values are far above low Earth orbit but below the 35,786 km geostationary altitude.

MEO is a practical compromise. A higher satellite can see a larger portion of Earth and remains above a user's horizon longer, reducing the number required for global coverage. A lower constellation would need many more satellites and more frequent handovers. Moving all the way to GEO would concentrate satellites around the equatorial sky and provide poor geometry near high latitudes. Multiple inclined MEO orbital planes distribute navigation satellites across the sky.

See Orbital Altitude for the broader LEO-MEO-GEO tradeoff and Orbital Period for why altitude controls the orbital clock. The Jewawud Orbital Tracker (JOT) can also visualize navigation satellites in MEO and show how their positions change relative to an observer on Earth.

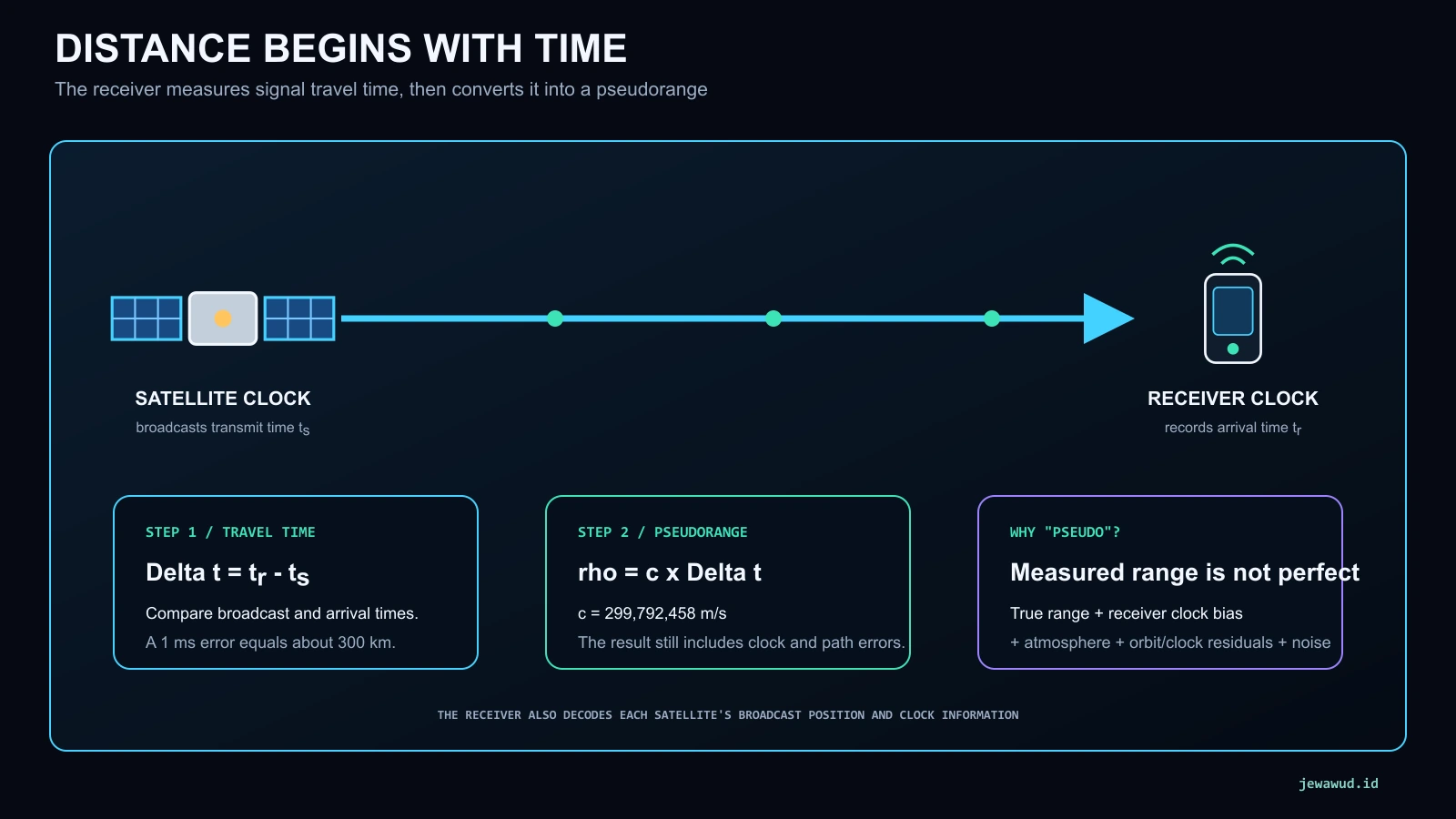

Each navigation satellite broadcasts a precisely timed radio signal along with navigation data describing its orbit and clock. The receiver identifies when the signal pattern was transmitted and compares that value with its observed arrival time. Radio waves travel through vacuum at the defined speed of light, 299,792,458 meters per second, so distance follows from a simple relationship: distance = speed × travel time.

The scale is unforgiving. Light travels almost 300 meters in one microsecond and about 30 centimeters in one nanosecond. A timing error that looks tiny in an ordinary clock can become a large range error. This is why navigation satellites carry highly stable atomic clocks and why the control segment continuously monitors satellite clock behavior and orbital data.

The result is called a pseudorange, not a perfect geometric range. It contains the true satellite-to-receiver distance plus receiver clock bias, residual satellite clock and orbit errors, atmospheric delay, multipath, receiver noise, and other smaller effects. Positioning is an estimation problem: the receiver solves for its state while applying corrections and combining more measurements than the minimum whenever possible.

Satellite navigation is often called triangulation, but the fundamental measurement is distance rather than angle. The more accurate term is trilateration. One measured distance places the receiver somewhere on a sphere centered on the satellite. A second sphere intersects the first in a circle. A third measurement reduces the mathematical possibilities to two points, and context can often reject the point far from Earth's surface.

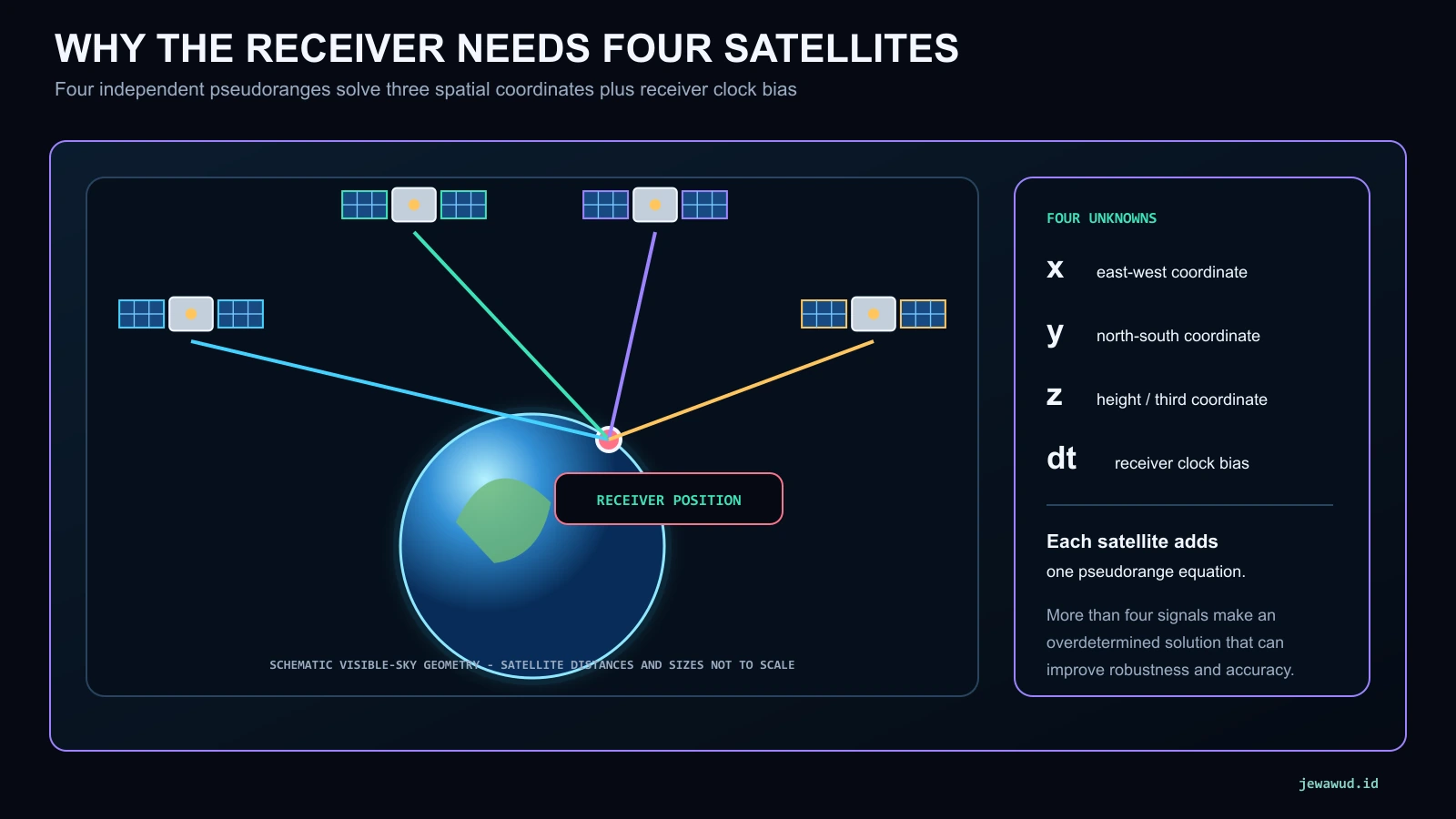

That simplified geometry assumes perfectly synchronized clocks. A phone does not carry an atomic clock, and even a small receiver clock offset changes every measured distance. In a practical three-dimensional solution, the receiver must estimate four unknowns: three spatial coordinates and one clock bias. Each satellite supplies one pseudorange equation. Four independent satellite measurements therefore provide the minimum set.

This is why “three satellites are enough” is only partly true. Three exact ranges can locate a point when time is already known. An ordinary GNSS receiver does not know time with satellite-clock precision, so the fourth signal lets it solve the timing error as part of the navigation solution.

Four satellites are the mathematical minimum for a normal full solution, not the ideal operating condition. A modern receiver may track many more signals across GPS, Galileo, GLONASS, and BeiDou. The extra equations make the solution overdetermined, allowing estimation methods to reduce noise, reject inconsistent measurements, and continue operating when one satellite becomes blocked.

Where the satellites appear in the sky is as important as how many are visible. Four satellites clustered in the same direction provide weak geometry: small range errors can create a large position error. Satellites spread across the sky constrain the solution from different directions. This geometry effect is summarized by dilution-of-precision values such as GDOP, PDOP, HDOP, and VDOP.

An open field often provides a better fix than a narrow city street, even when both locations see four satellites. Trees, roofs, canyon walls, and a vehicle body can hide parts of the sky. A receiver constantly selects and weights available measurements rather than treating every signal as equally trustworthy.

Navigation satellites carry atomic clocks because stable timing is the foundation of ranging. Galileo satellites, for example, use passive hydrogen maser and rubidium clock technologies. The receiver does not need to carry the same hardware: by solving clock bias from several satellite signals, it effectively transfers constellation time to an inexpensive local oscillator.

Relativity is part of the engineering. According to NIST, motion causes GPS satellite clocks to lose about 7 microseconds per day relative to Earth clocks, while weaker gravity at MEO causes them to gain about 45 microseconds per day. The combined effect is roughly 38 microseconds per day faster. The system accounts for these effects; ignoring them would quickly make positioning unusable.

The time solution is valuable beyond maps. GNSS timing synchronizes telecommunications, electric-power systems, financial networks, scientific instruments, and other infrastructure. Positioning, navigation, and timing are normally grouped as PNT because they come from the same carefully maintained signal system.

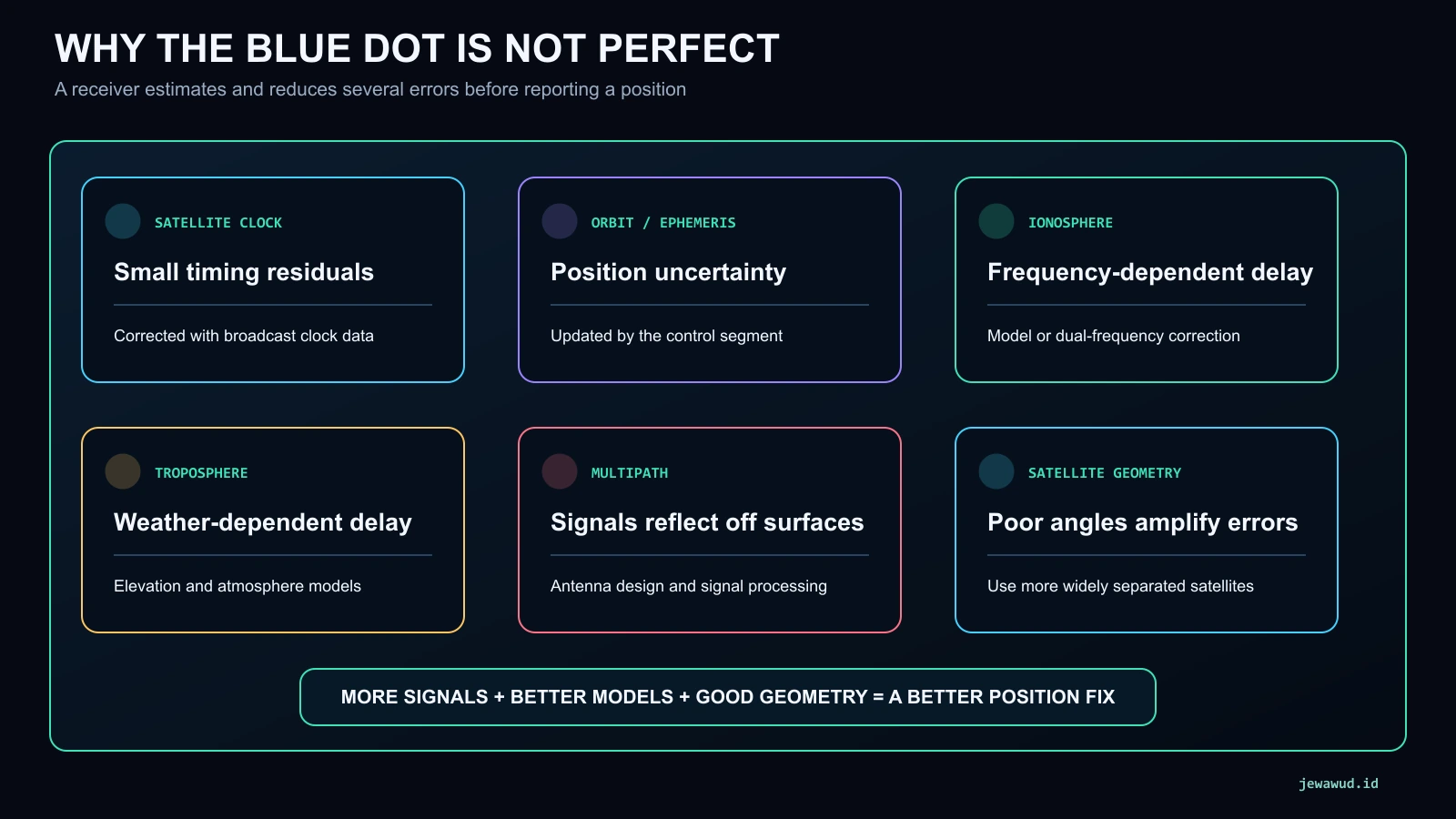

The ionosphere contains charged particles that delay radio signals by an amount that depends on frequency. Dual-frequency receivers can estimate much of this delay by comparing two signals. The neutral lower atmosphere adds tropospheric delay related to pressure, temperature, humidity, and elevation angle. Models reduce it, but cannot reproduce every local condition perfectly.

In cities, multipath is often more visible. A signal reflects from glass, concrete, metal, or the ground and reaches the receiver by a longer route than the direct path. The receiver may interpret that extra travel time as extra distance. Modern antennas and signal processing suppress many reflections, but a phone surrounded by tall buildings still has a difficult radio environment.

Satellite clock and ephemeris errors, radio interference, receiver noise, poor geometry, and blocked sky also contribute. A map application may combine GNSS with Wi-Fi, cellular information, inertial sensors, wheel speed, barometric altitude, and map matching. The displayed blue dot is therefore often a fused navigation estimate rather than a raw GPS coordinate.

Navigation appears to come directly from space, but a global control network maintains the service. Monitoring stations observe satellite signals and orbit behavior. Control facilities estimate clock and ephemeris corrections, assess satellite health, and upload new navigation data and commands through ground antennas.

The receiver later decodes this broadcast information to calculate where each satellite was when its signal was transmitted. A ranging measurement without a trustworthy satellite position is not enough. This connects GNSS directly to the communications chain described in From Orbit to Antenna: the user signal is one-way, while the constellation itself depends on separate monitoring and control links.

System integrity also matters. A satellite with unhealthy data can be marked unusable. Augmentation systems add corrections and integrity information for applications that need better accuracy or stronger assurance. Surveying may use differential or real-time kinematic techniques, while aviation uses specialized augmentation and integrity monitoring.

“GPS needs an internet connection.” A GNSS receiver can calculate a position from satellite broadcasts without mobile data. Internet access can accelerate startup, supply assistance data, download maps, or contribute other location sources.

“The satellite knows where I am.” Standard navigation signals are broadcasts. The receiver computes its own solution and does not need to identify itself to the satellite.

“Four satellites always guarantee an accurate fix.” Four usable measurements can produce a solution, but poor geometry, multipath, atmospheric delay, or interference may make it inaccurate. More clean signals usually help.

“GPS and GNSS mean exactly the same thing.” GPS is one GNSS constellation. A device labeled “GPS” may actually combine several global systems.

The constellation, timing, distance, and four-satellite explanation was checked against the official GPS.gov How GPS Works poster, the GPS system overview, and the European Space Agency's guides to satellite navigation and the four-satellite clock solution.

Galileo orbit and clock details were checked against ESA's Galileo satellite description. The relative clock-rate values were checked against the U.S. National Institute of Standards and Technology article Putting Einstein to the Test.
