From Orbit to Antenna
How satellites talk to Earth

A satellite can operate autonomously for long periods, but it is not useful in isolation. Engineers need to know whether its batteries are charged, temperatures remain safe, computers are healthy, and instruments are collecting the intended measurements. The spacecraft also needs new instructions: when to point, what to observe, which data to transmit, and how to recover from a fault.

Those exchanges form a communications link. At one end is a radio and antenna on the spacecraft. At the other is a ground station whose antenna can find and track the satellite. Between them is a path through free space and, near Earth, through the atmosphere. Behind the dish is a terrestrial network that carries commands from mission control and sends received data toward operators, archives, and users.

The familiar picture of a beam connecting a satellite to Earth hides several separate engineering problems. The satellite may be moving rapidly relative to the station. Earth may block the line of sight. The signal spreads as it travels. Antennas must point accurately, frequencies must be coordinated, and the receiver must distinguish a weak signal from noise. A reliable link exists only when all of these pieces work together.

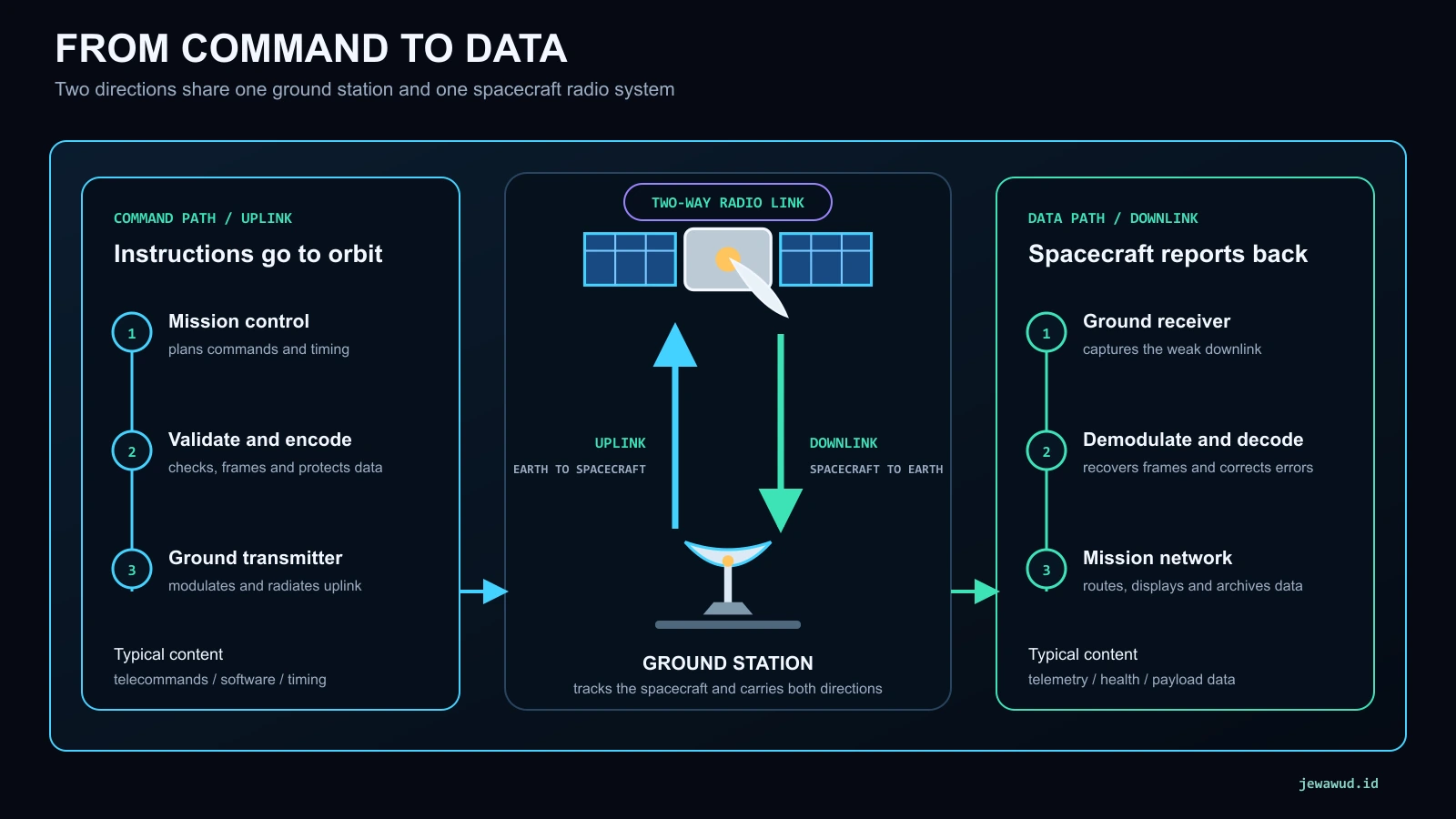

An uplink travels from Earth to the spacecraft. It commonly carries telecommands, clock synchronization, software patches, navigation information, or a schedule of future activities. Commands are normally protected by strict validation and authentication because a corrupted or unauthorized instruction could place the mission at risk.

A downlink travels from the spacecraft to Earth. One part is telemetry: temperatures, voltages, currents, processor status, attitude, stored fault messages, and other evidence of spacecraft health. Another part is payload data, such as images, weather soundings, scientific measurements, or communications traffic. A small command may trigger the return of gigabytes of observations, so uplink and downlink data rates are often very different.

The European Space Agency describes telecommand as the path used to control spacecraft functions and telemetry as the data used to monitor the spacecraft and its payload. Real missions may use separate radios, frequencies, coding schemes, or antennas for control and high-rate science data. MetOp, for example, uses S-band for command and control while X-band supports high-rate payload data.

A radio cannot communicate through the solid Earth. A direct ground-to-space link therefore requires line of sight. As an orbiting satellite rises above a station's local horizon, the station reaches acquisition of signal, often abbreviated AOS. After the satellite crosses the sky and drops below the opposite horizon, loss of signal, or LOS, ends the pass.

A low Earth orbit satellite may remain in view for only several minutes. The exact contact duration depends on orbital altitude, the ground track, the station location, surrounding terrain, and the minimum elevation angle accepted by the mission. Near the horizon, the signal passes through more atmosphere and may be obstructed by buildings or terrain, so operations often begin above a chosen elevation rather than at the geometric horizon.

Mission planners predict passes before commanding. They know when the spacecraft should become visible, where the antenna should point, and how quickly it should track. This is one practical reason orbital propagation matters. Use the Jewawud Orbital Tracker (JOT) to inspect how a satellite's orbit and ground track move relative to Earth, or JITM to follow the ISS and Tiangong. The apps visualize the geometry that causes contact windows to open and close.

Space missions use radio-frequency bands allocated for particular services. S-band is widely used for telemetry, tracking, and command. X-band is common for higher-rate Earth observation and deep-space links. Ka-band can offer still more bandwidth, while optical communications use tightly directed laser light instead of radio. Exact frequencies are coordinated internationally and depend on the mission and service, so a spacecraft cannot simply transmit wherever it finds an empty channel.

Higher frequency does not automatically mean a better link. It can enable wider bandwidth and a narrower beam from an antenna of a given size. That can support higher data rates and reduce interference outside the intended direction. The tradeoff is that pointing becomes more demanding, free-space path loss increases with frequency, and some bands are more affected by atmospheric gases, clouds, or rain.

Engineers choose frequency together with antenna size, transmitter power, data rate, orbit, regulatory access, weather tolerance, and the available ground network. A low-rate emergency command link values robustness. A synthetic-aperture radar satellite returning enormous datasets values throughput. One spacecraft may carry both.

A link budget is the communications equivalent of an energy budget. It begins with transmitter power. It subtracts losses in cables and other hardware, adds transmitting-antenna gain, subtracts propagation losses, adds receiving-antenna gain, and arrives at an estimated power level at the receiver. The units differ by role: dBm represents power relative to one milliwatt, dBi describes antenna gain relative to an ideal isotropic radiator, and dB represents a ratio or gain/loss.

The largest term is often free-space path loss. For distance d in kilometers and frequency f in gigahertz, a convenient form is FSPL = 92.45 + 20 log10(d) + 20 log10(f) dB. A 2.2 GHz signal traveling 550 km has about 154.1 dB of free-space loss. Nothing is absorbing 154 dB of energy in empty space; the transmitted power spreads across an ever-larger area, and the receiving antenna captures only a fraction.

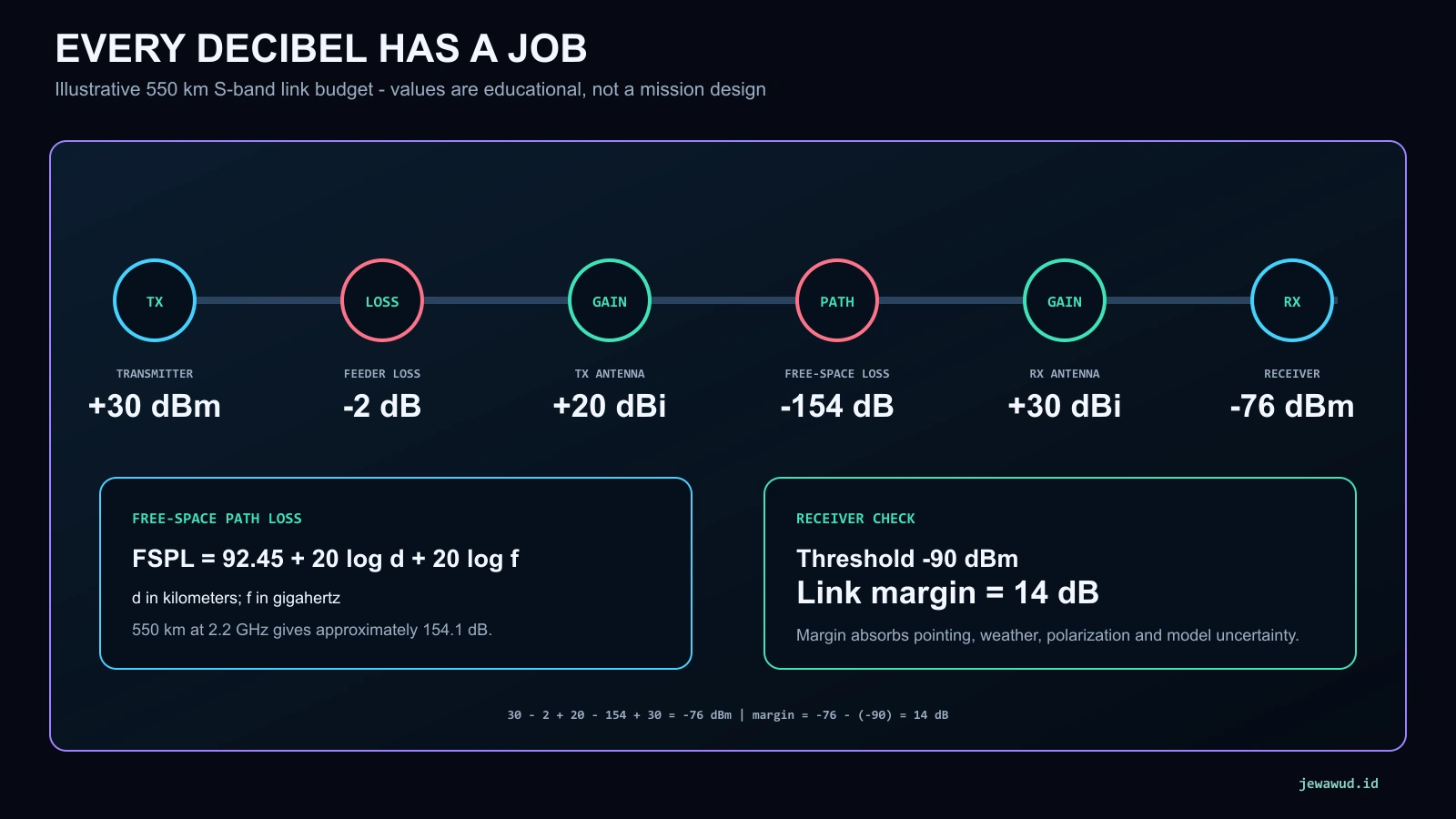

The diagram uses an illustrative chain: +30 dBm transmitter power, 2 dB feeder loss, 20 dBi transmit gain, 154 dB path loss, and 30 dBi receive gain produce -76 dBm at the receiver. If reliable decoding requires -90 dBm, the nominal link margin is 14 dB. A real design also includes polarization mismatch, pointing loss, atmospheric attenuation, implementation loss, noise temperature, modulation, coding, data rate, and statistical weather margin.

Antenna gain does not create free power. It concentrates transmitted energy into selected directions, or makes a receiving antenna more sensitive to signals from those directions. A broad, low-gain antenna can maintain a link despite uncertain spacecraft attitude, but it sends less energy toward the ground station. A narrow, high-gain dish can support a much stronger or faster link, but only when it is pointed accurately.

Spacecraft often combine antennas. Low-gain antennas support early operations, safe mode, and recovery. Medium- or high-gain antennas handle routine telemetry or payload data. The spacecraft attitude-control system may turn the entire vehicle, or a gimbal may steer the antenna independently. On Earth, large dishes use motors and tracking predictions to follow the changing azimuth and elevation of a passing spacecraft.

Polarization matters too. Radio waves may be linearly or circularly polarized. If the transmitter and receiver are poorly matched, part of the signal is lost. Rotation of a spacecraft, atmospheric effects, and reflections can complicate the match, so polarization is included in both hardware selection and the link budget.

A LEO spacecraft moves around Earth at roughly 7 to 8 km/s. What matters to the radio link is the part of that velocity along the line between satellite and station, called radial velocity. While the spacecraft approaches, the received frequency shifts upward. Around closest approach the radial component passes through zero. As the spacecraft recedes, the frequency shifts downward.

This Doppler shift is not a minor curiosity. The receiver must search for or predict the shifted carrier, and the transmitter or receiver may continuously compensate during a pass. The shift scales with carrier frequency and radial speed, so a higher-frequency link experiences a larger shift in hertz for the same geometry.

Doppler measurements can also help estimate spacecraft motion. Combined with range, angle measurements, and a dynamic model, they contribute to orbit determination. Communications and navigation are therefore closely linked: the same signal that carries bits also contains information about how the endpoints are moving.

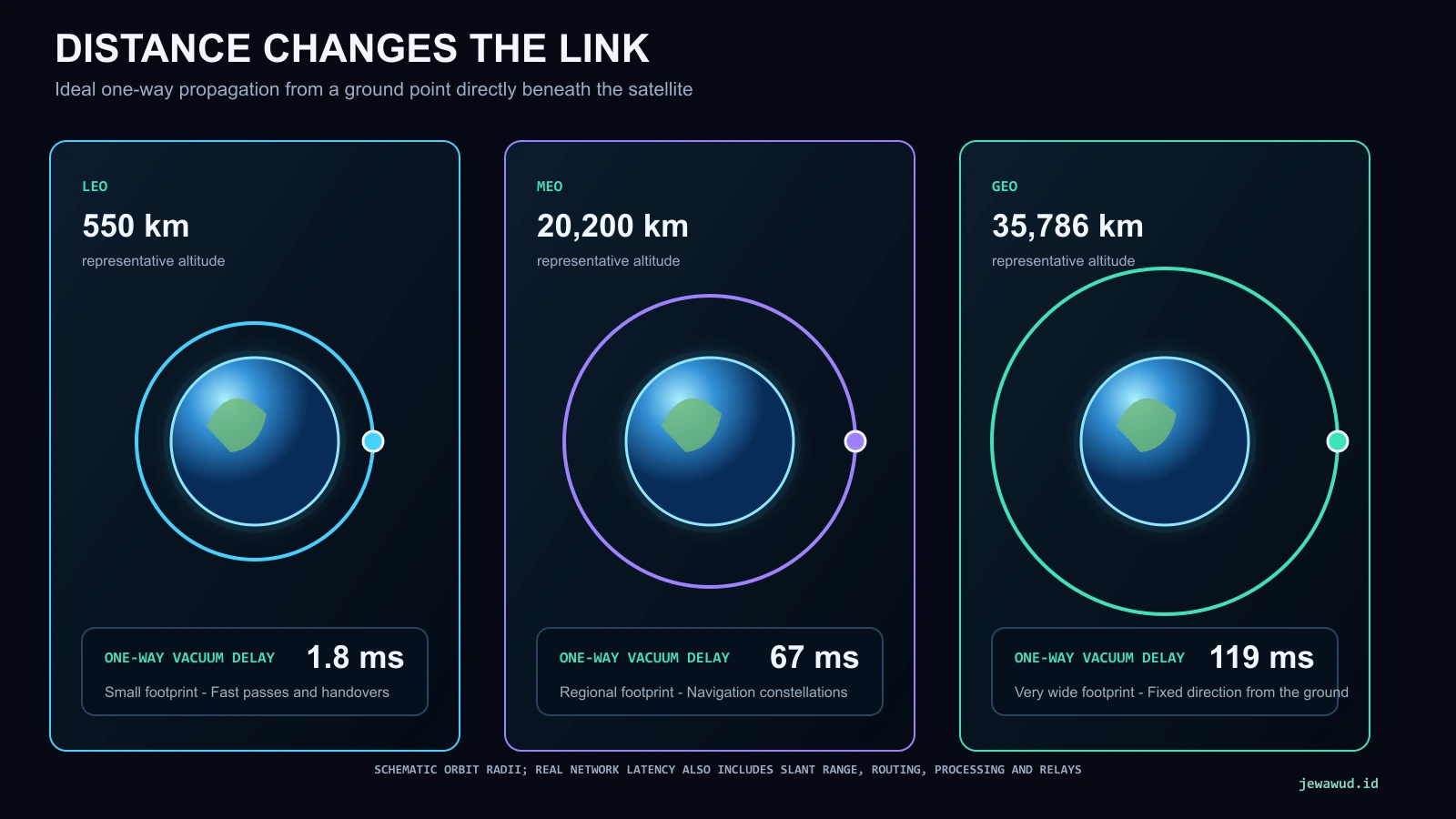

Distance changes both the geometry and timing of a link. A representative satellite at 550 km has an ideal overhead, one-way vacuum propagation time of about 1.8 milliseconds. A navigation satellite near 20,200 km is about 67 milliseconds away by the same simplified calculation. A geostationary satellite at 35,786 km is about 119 milliseconds from a point directly below it.

These are not end-to-end internet latency figures. A real signal follows a slant path unless the satellite is directly overhead. A relay service may travel ground-to-satellite-to-ground, doubling the space distance before any return message is considered. Routing, switching, inter-satellite links, encoding, decoding, queues, and application processing add more delay. The FCC notes that a GEO relay path has roughly a quarter-second of propagation for one trip up to the satellite and back down.

Lower orbits reduce distance but move quickly across the sky and cover a smaller portion of Earth at once. Continuous service may require a constellation, many ground stations, handovers, or relay satellites. GEO offers a wide footprint and appears fixed in the sky, allowing a stationary ground antenna, but the distance increases path loss and latency. MEO sits between these extremes and is widely used by navigation constellations.

The antenna is only the visible front end. A low-noise amplifier strengthens the extremely weak received signal while adding as little noise as practical. Radio equipment filters, downconverts, and digitizes it. A modem identifies the carrier, demodulates symbols, synchronizes frames, and applies error-correcting codes. Ground software checks packet structure and routes telemetry or payload products to the correct destination.

ESA describes modern ground systems that demodulate and decode spacecraft transmissions at the station, then store and upload the resulting data through terrestrial or cloud infrastructure. For an Earth-observation mission, raw packets may become calibrated imagery or atmospheric measurements. For spacecraft operations, telemetry enters monitoring displays and automated limit checks. Events outside expected ranges can trigger alarms or a new command plan.

The process also runs in reverse. Mission control prepares a command sequence, validates it, schedules it for a suitable contact, and sends it through the network to the station. The ground transmitter encodes and modulates it, the antenna radiates the uplink, and the spacecraft receiver validates the command before execution. Good operations are deliberately cautious: a radio link can be fast, but commanding a distant machine should never be casual.

"The beam in an illustration is the width of the real signal." Usually not. A visible line is a diagram convention. Real antenna patterns have a main lobe and weaker side lobes, and their angular width depends on wavelength and antenna aperture.

"The satellite is always connected." A LEO satellite may communicate only during scheduled passes unless it uses a relay network. It can store telemetry and payload data between contacts.

"More transmitter power solves every problem." Power helps, but spacecraft energy and thermal budgets are limited. Antenna gain, coding, lower data rate, better receiver sensitivity, additional ground stations, and improved pointing may be more effective.

"Latency and data rate are the same." Latency is the time a signal or message takes to arrive. Data rate is how many bits can be transferred per second. A link can have high throughput and still have substantial propagation delay.

The definitions and operational roles of spacecraft telemetry and telecommand were checked against the European Space Agency's telemetry and telecommand overview. Ground-contact planning and the flow between spacecraft, stations, and control systems were checked against ESA's Arctic Weather Satellite operations and data flow.

The S-band command/X-band payload example comes from ESA's MetOp operations description. Ground-station decoding and terrestrial data delivery were checked against ESA's ground systems engineering overview. The GEO propagation comparison was checked against FCC-22-103A1.
