Rocket Stability Explained
CG, CP, and Static Margin

Rocket stability describes how a vehicle responds after its attitude is disturbed. A gust, slight launch-guide misalignment, thrust offset, or structural motion can rotate the nose away from the relative airflow. A statically stable vehicle initially develops a tendency that points it back toward its equilibrium orientation. A statically unstable vehicle develops a tendency that increases the angular error.

Control is related but different. A control system deliberately commands attitude with mechanisms such as gimbaled engines, aerodynamic surfaces, reaction-control thrusters, or movable mass. A passively stable model rocket can fly without active steering because its geometry produces a restoring aerodynamic moment. A large launch vehicle may rely on active guidance and thrust-vector control even though its passive aerodynamic characteristics change substantially during ascent.

Stability is also different from strength and performance. A rocket may be aerodynamically stable but structurally inadequate, underpowered, or unsafe in wind. Conversely, a high-thrust vehicle is not automatically stable. Thrust-to-weight ratio answers whether net acceleration is available; it does not determine whether the nose remains pointed in a controlled direction. See Thrust-to-Weight Ratio Explained for that separate relationship.

The center of gravity, abbreviated CG, is the point through which the vehicle's weight effectively acts in a uniform gravitational field. For flight-dynamics calculations near Earth it is normally treated as the center of mass. If the rocket is supported at this point, the moments from its distributed masses balance.

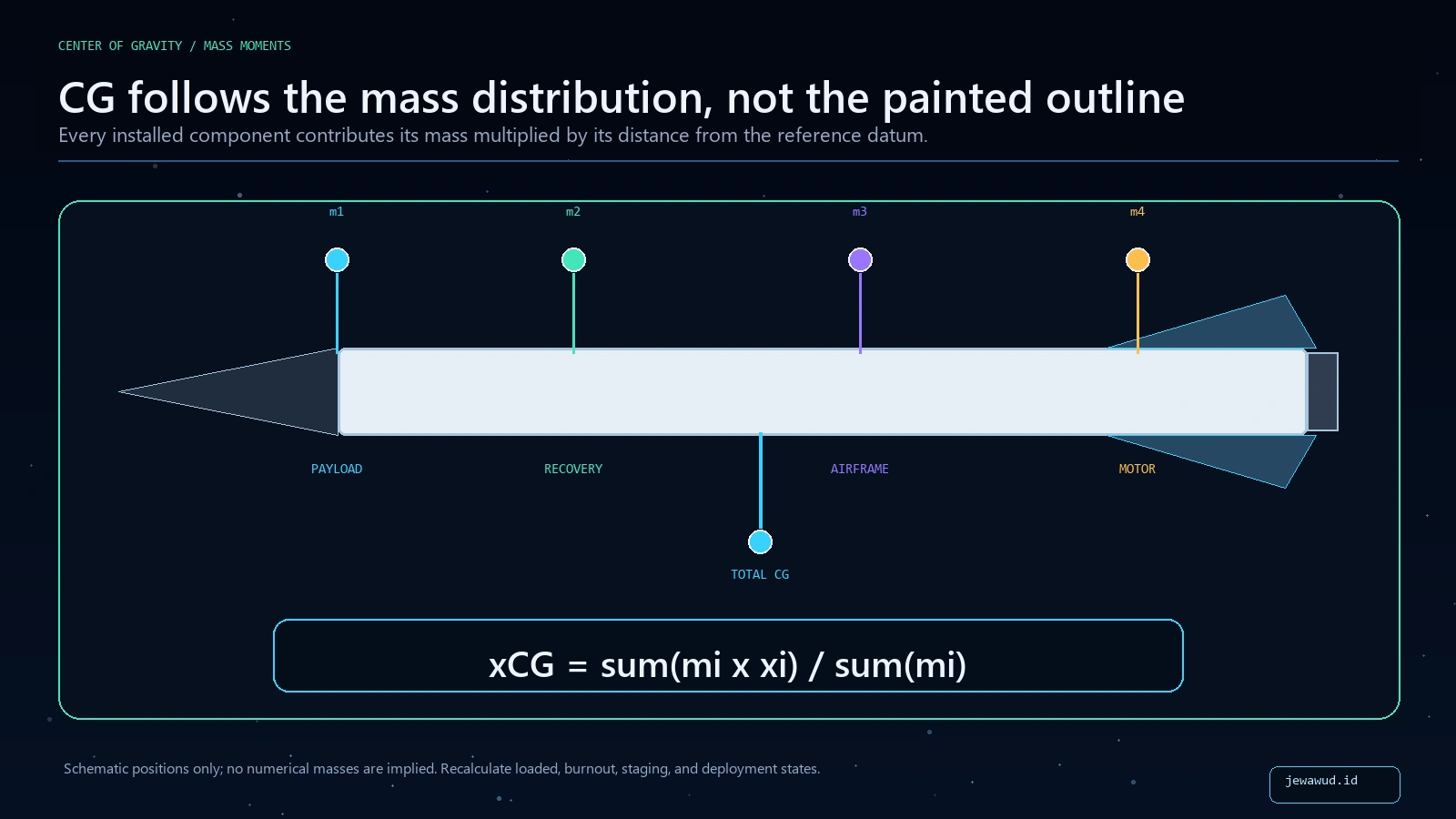

CG is calculated with mass moments. Choose a longitudinal reference, often the nose tip, measure each component position from that reference, multiply each mass by its position, add the moments, and divide by total mass. A heavy motor near the tail pulls CG aft. A payload or ballast near the nose pulls it forward. The result must represent the complete ready-to-fly configuration, including motor, recovery system, payload, fasteners, and anything that can move.

CG is not necessarily fixed. Propellant depletion changes mass distribution. Staging removes entire sections. Payload release, deployed recovery hardware, and moving liquid propellant can shift the balance. For a simple solid model rocket, the loaded and burnout conditions are both important; either may produce the minimum stability margin.

The center of pressure, abbreviated CP, is the location where the resultant aerodynamic force can be represented as acting for a stated condition. Every exposed part of a rocket contributes pressure and shear forces. Combining those distributed loads into a resultant force and moment gives a useful effective location along the vehicle.

CP is an aerodynamic property, not a mass property. Nose shape, body geometry, transitions, fins, angle of attack, Mach number, Reynolds number, protuberances, and flow separation can all influence it. Adding large fins near the tail usually shifts CP aft because the fins add aerodynamic area far behind the nose. Adding nose mass changes CG but does not directly move CP.

Simple model-rocket methods often estimate a subsonic CP from geometry. Higher-fidelity work may use wind-tunnel measurements, validated aerodynamic databases, computational fluid dynamics, or flight-test identification. Whatever method is used, the result is only meaningful with its assumptions and flight condition stated.

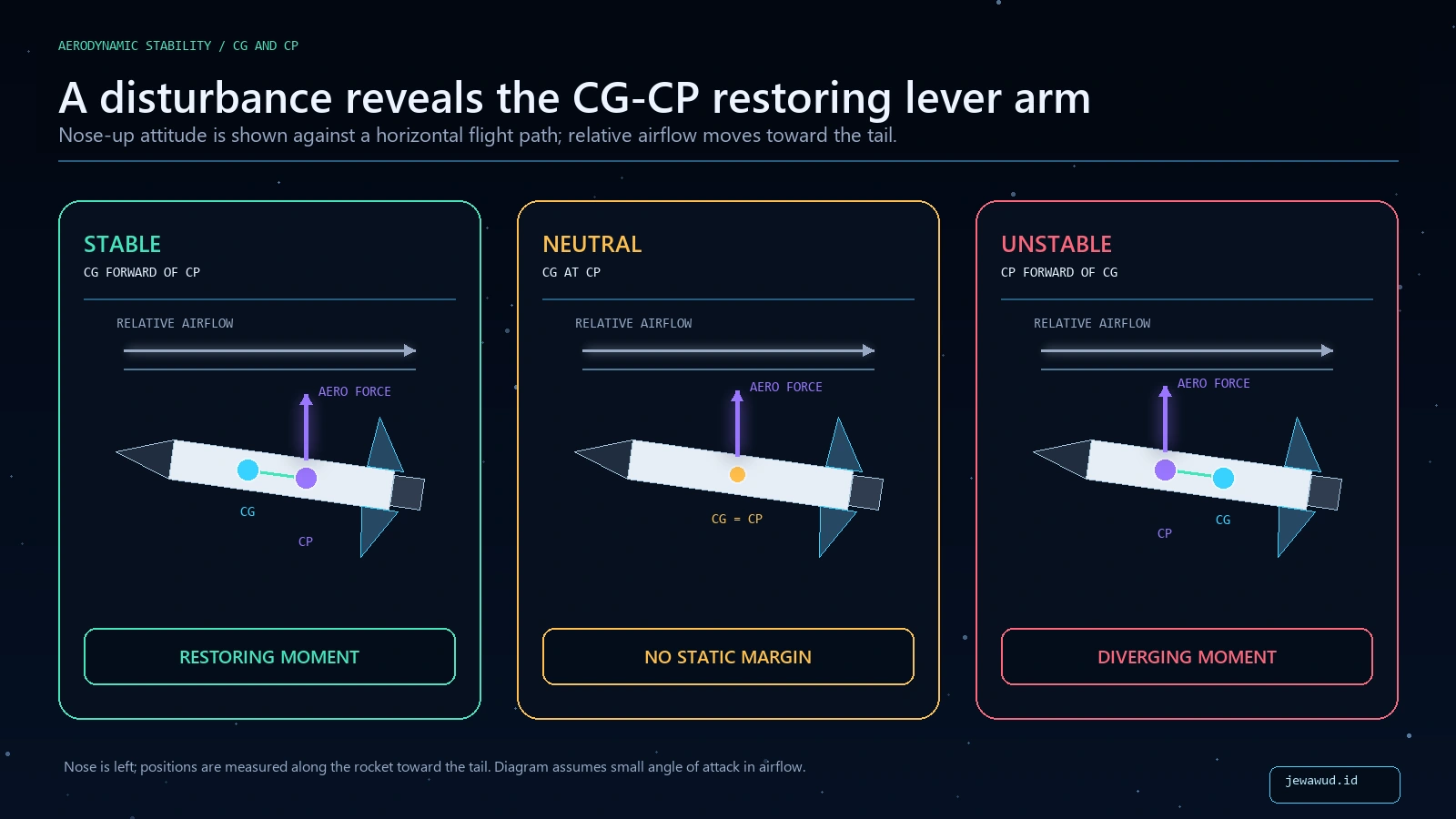

Consider a conventional small fin-stabilized rocket whose nose is disturbed slightly away from the relative airflow. The resulting angle of attack creates an aerodynamic force that acts through CP. When CG lies forward of CP, that force acts behind the point about which the vehicle rotates. The resulting moment tends to reduce the disturbance and align the rocket with the airflow again.

If CG and CP coincide, the first-order restoring lever arm is zero. If CP lies forward of CG, the aerodynamic force acts on the wrong side of the rotational balance point and tends to increase the angular error. The vehicle is statically unstable under the stated assumptions.

This relationship is directional: “forward” means closer to the nose and “aft” means closer to the tail. It also assumes the conventional small-angle case. Dynamic behavior still depends on damping, inertia, structural flexibility, control inputs, and changing aerodynamic conditions. Correct CG–CP order is necessary for passive static stability, but it is not a complete flight certification.

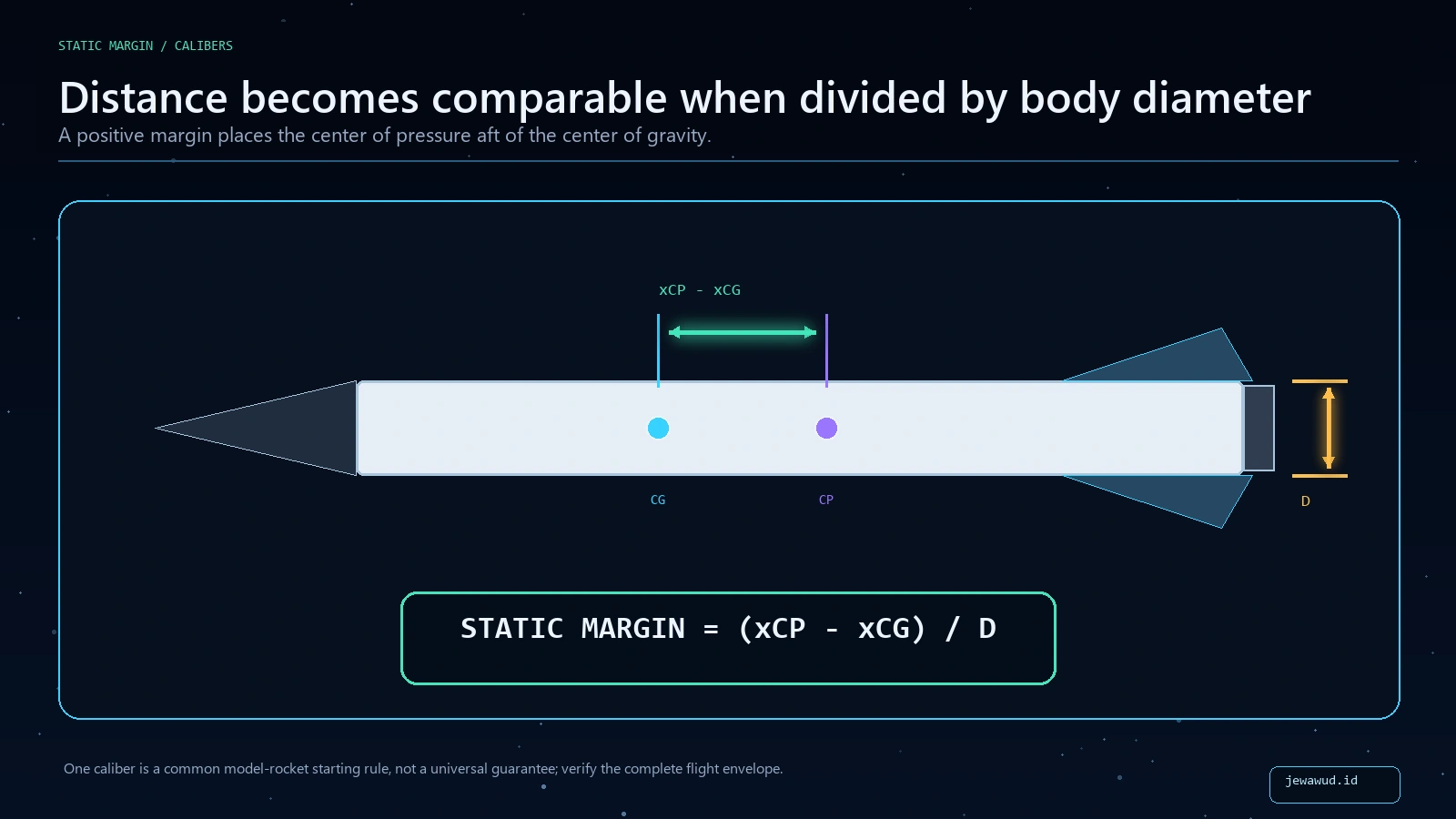

The distance between CG and CP becomes easier to compare among rockets when divided by a reference body diameter. If longitudinal positions are measured aft from the nose, a common definition is static margin = (xCP - xCG) / D. The result is dimensionless and is often reported in calibers. A margin of one caliber means CP is one body diameter aft of CG.

A positive value indicates the desired order for a conventional fin-stabilized rocket; zero is neutral in the simplified static sense; a negative value indicates CP is forward of CG. Because sign conventions can differ among software and textbooks, always check the coordinate direction and formula rather than relying on the sign alone.

One caliber is a common model-rocket starting guideline, not a law that guarantees a safe flight. The appropriate margin depends on vehicle slenderness, fin geometry, speed, wind, launch-guide dynamics, mass properties, damping, and the aerodynamic method used. Very small margin can be fragile. Excessive margin can create aggressive weathercocking into the wind, higher aerodynamic loads, extra drag, and unnecessary nose ballast.

A balance check performed on an empty airframe does not establish flight CG. The installed motor, propellant, payload, recovery system, and hardware can move the result substantially. A safe analysis uses measured or justified masses and positions for the vehicle that will actually fly.

Burnout does not automatically improve stability. If propellant mass is concentrated near the tail, consuming it may move CG forward and increase margin. If mass is removed from another location, the shift can differ. Staged vehicles require separate analyses before and after separation. Liquid vehicles also face propellant slosh and changing tank levels, which add dynamic effects beyond a single static point.

Movable components matter as well. A loose battery or payload can change CG during acceleration. Recovery gear packed differently from the model can change both mass distribution and deployment reliability. The analytical model and the physical rocket must describe the same configuration.

CP is often drawn as one dot because that makes the basic concept understandable. In real aerodynamics, the effective force location can move with Mach number, angle of attack, Reynolds number, control-surface deflection, and flow separation. A value calculated for low-speed attached flow should not be assumed valid through transonic or supersonic flight without an appropriate method.

Near Mach 1, shock waves and rapidly changing pressure distributions can alter aerodynamic coefficients and loads. At larger angles of attack, nonlinear flow and body–fin interaction become more important. This is one reason maximum dynamic pressure deserves its own analysis: even a stable orientation can experience significant aerodynamic load when density and speed combine unfavorably. See Max Q Explained.

A responsible envelope therefore checks more than one CP estimate when the vehicle spans materially different regimes. Uncertainty should be carried into the margin rather than hidden behind excessive numerical precision.

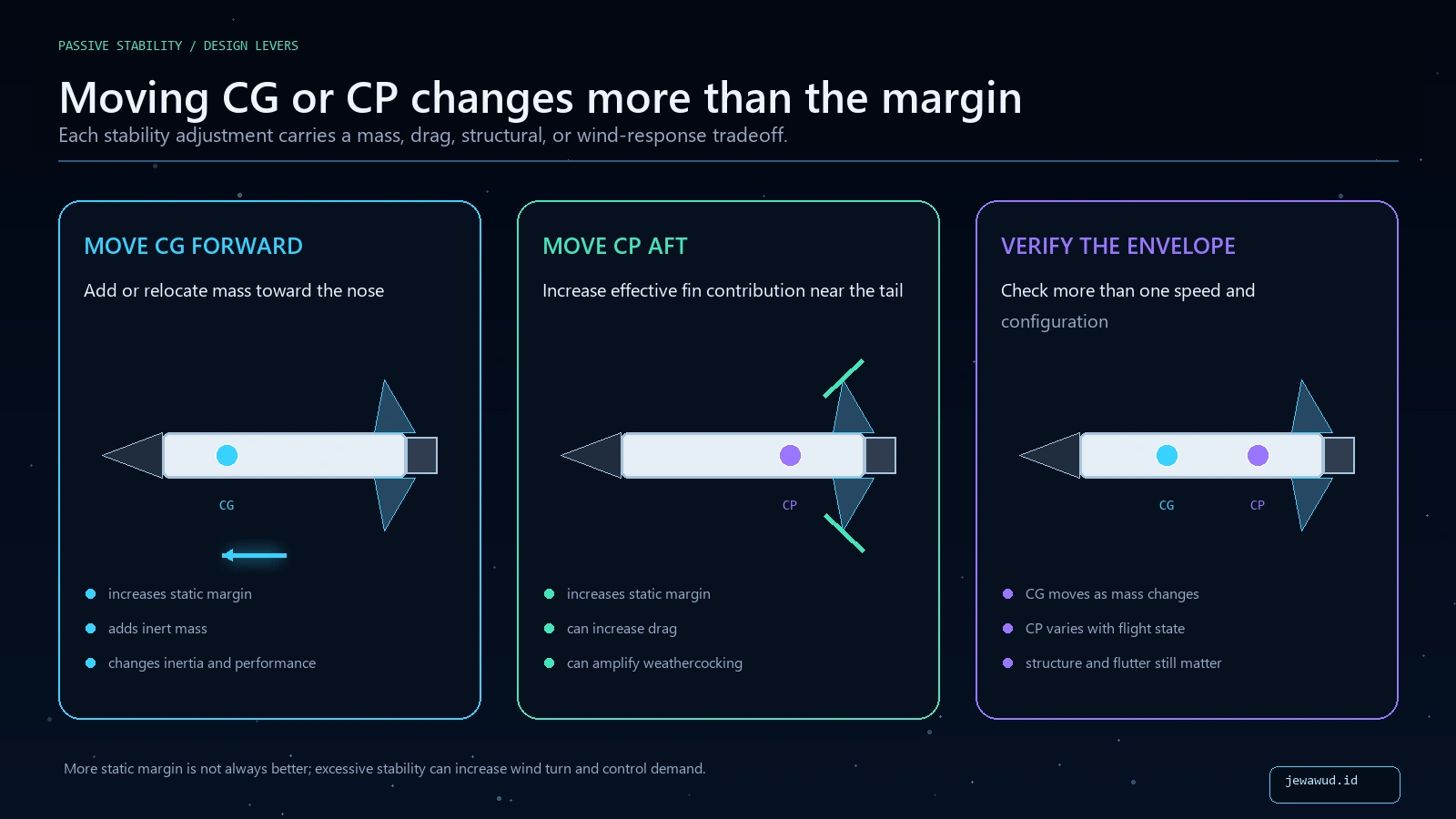

There are two familiar ways to increase static margin: move CG forward or move CP aft. Adding nose ballast moves CG forward, but it also increases liftoff mass and can reduce acceleration. Larger fins or fins placed farther aft can move CP rearward, but they increase drag, structural demand, and sensitivity to crosswind. Either change can create new problems if treated as an isolated fix.

Fin effectiveness depends on more than planform area. Span, chord, sweep, thickness, airfoil section, body interference, stiffness, alignment, and flight regime all matter. Flexible fins can couple structural vibration with aerodynamics. Misaligned fins can introduce roll or side force. A geometrically stable rocket can still depart unpredictably if components deform or thrust is substantially misaligned.

The goal is not the largest possible margin. It is a defensible stability envelope with acceptable mass, drag, structural integrity, wind response, and trajectory. Changes should be evaluated as system changes and then verified in the updated ready-to-fly configuration.

Fins need airflow to generate useful aerodynamic force. At ignition and the first instant of motion, airspeed is low, so passive aerodynamic stability has little authority. A rail, rod, tower, or other launch guide constrains the rocket until it has gained enough speed for the fins to work effectively.

Leaving the guide too slowly makes the flight more vulnerable to wind, thrust misalignment, and disturbances. A high nominal static margin does not compensate for inadequate guide-exit speed. Vehicle mass, thrust history, guide length, friction, wind, and launch angle must be evaluated together. Average thrust alone can be misleading because the early thrust curve determines initial acceleration.

Weathercocking begins when a stable rocket rotates toward the relative wind. Some response is expected, but strong wind and excessive static stability can bend the trajectory significantly away from the intended vertical path. Range rules, certified hardware, and launch-day conditions remain essential parts of the decision.

Small model and sounding rockets commonly rely heavily on passive fin stability. Full-scale launch vehicles are different. They may have changing aerodynamic regimes, slender flexible structures, clustered engines, staging events, and mission guidance requirements that cannot be satisfied by simply adding large fixed fins.

Active systems compare measured attitude or angular rate with a commanded state and generate corrective torque. Gimbaled thrust changes the direction of engine force. Aerodynamic control surfaces can work where sufficient atmosphere is present. Reaction-control thrusters operate outside the useful aerodynamic regime. These systems require sensors, actuators, control laws, power, redundancy, and extensive verification.

Passive and active behavior can coexist. Aerodynamic characteristics still matter to a guided vehicle because they determine disturbances and loads that the control system must overcome. A statement such as “CG must be one caliber ahead of CP” should therefore not be generalized from a model rocket to every orbital launch vehicle.

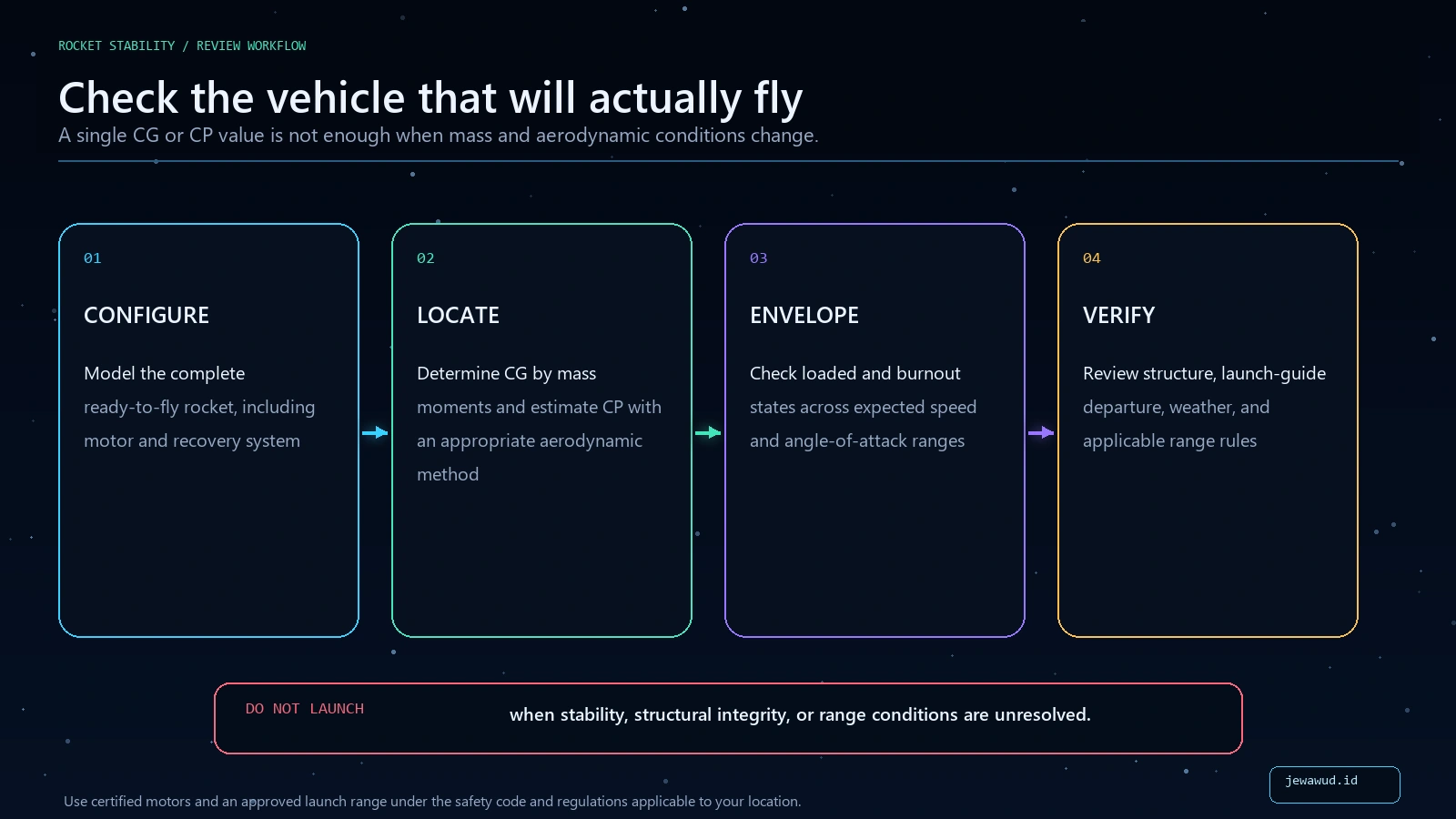

Begin with the exact ready-to-fly geometry and mass configuration. Locate CG from measured component masses and positions, then estimate CP with a method appropriate to the expected regime. Compute margin using an explicit coordinate convention and body reference diameter.

Repeat the analysis for loaded, burnout, staged, deployed, and other relevant states. Check speed and angle-of-attack ranges rather than one nominal point when the aerodynamic regime changes. Review fin stiffness and attachment, thrust alignment, structural integrity, launch-guide departure, wind, recovery, and approved range limits.

Stop when important information is unresolved. A diagram, simulator, or rule of thumb does not certify a physical rocket. Use certified motors, follow the applicable safety code, launch only at an approved range under qualified supervision, and comply with local aviation and explosives regulations.

The stability relationships in this article were checked against NASA Glenn educational material and the National Association of Rocketry safety and education resources:

• NASA Glenn Research Center - Rocket Center of Pressure
• NASA Glenn Research Center - Conditions for Rocket Stability
• NASA Glenn Research Center - Rocket Center of Gravity
• NASA Glenn Research Center - Rocket Control
• National Association of Rocketry - This Is Rocketry

The diagrams explain concepts and coordinate relationships. They intentionally omit construction dimensions and should not be interpreted as flight approval, a structural assessment, or a substitute for a qualified range safety review.
