Max Q Explained
Why Rockets Throttle Down

Launch commentators often announce that a rocket is "approaching Max Q" and, seconds later, that it has "passed Max Q." The phrase sounds like a speed milestone, but the letter Q does not mean velocity. It denotes dynamic pressure: a measure that combines the density of the surrounding air with the square of the vehicle's air-relative speed.

At liftoff, the atmosphere is dense but the rocket's speed is nearly zero, so dynamic pressure is nearly zero. Higher in the climb, the rocket is much faster but the atmosphere has become extremely thin, so dynamic pressure is again small. Somewhere between those conditions, their product reaches a peak. That peak is maximum dynamic pressure, shortened to Max Q.

The event matters because aerodynamic force scales with dynamic pressure. A launch vehicle passing through the lower atmosphere must tolerate axial force, side force, vibration, control motion, and bending while its propellant tanks, engines, interstages, fairing, and payload form one long flexible structure. Max Q is therefore a major design and operations checkpoint, but it is not a complete description of every load on the rocket.

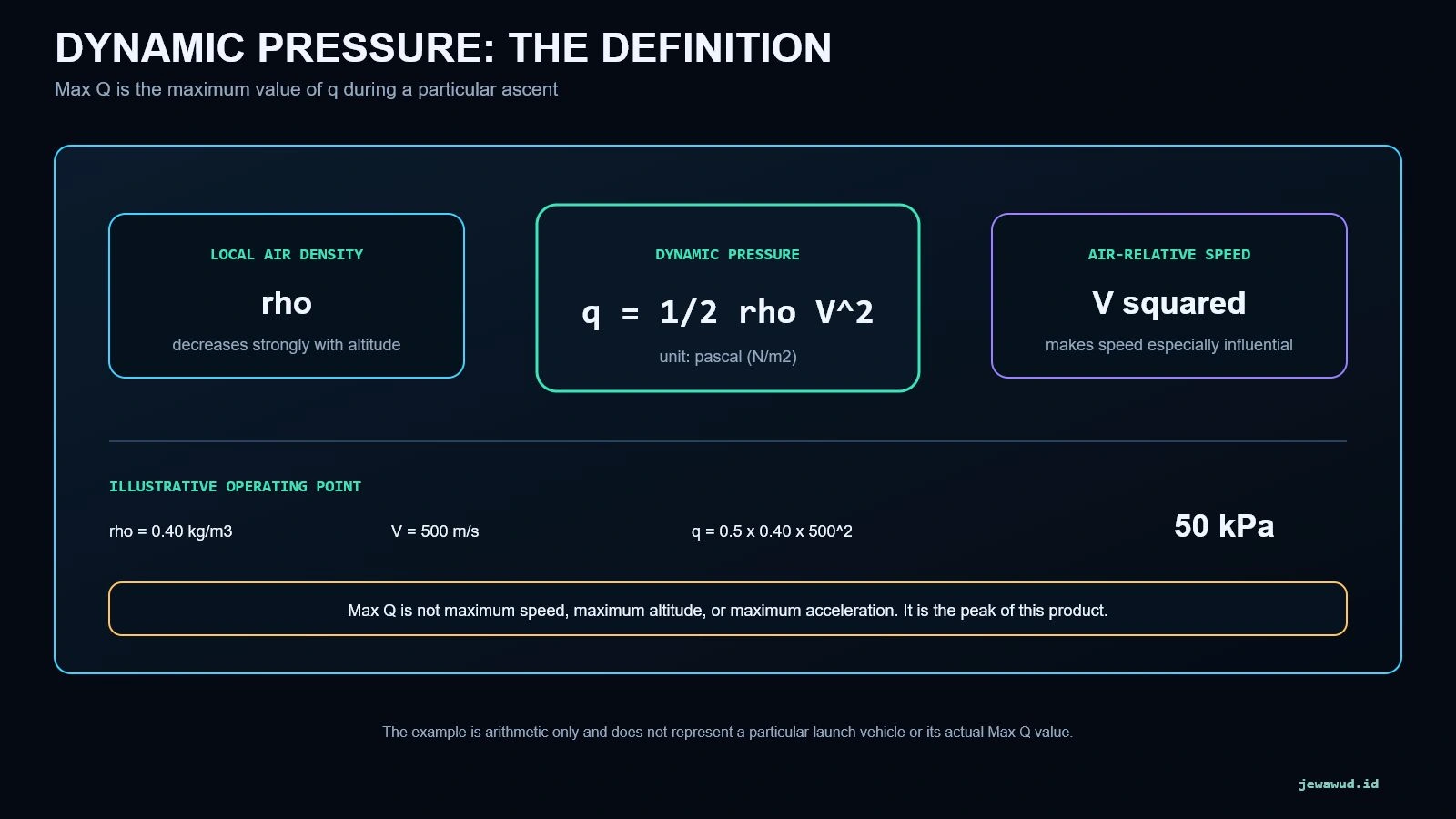

Dynamic pressure is written as q = 1/2 rho V squared. Here rho is the local atmospheric density and V is the vehicle's velocity relative to the surrounding air. The result has units of pressure: pascals, equivalent to newtons per square meter.

The word relative is important. A rocket's inertial speed or ground speed is not always identical to its speed through the air. Winds contribute to the relative flow seen by the vehicle. For a simple educational ascent model the distinction may be small enough to approximate, but professional loads analysis uses the atmospheric state and wind assumptions appropriate to the trajectory.

Because velocity is squared, doubling air-relative speed multiplies the velocity term by four if density stays fixed. Density, however, does not stay fixed during launch. It drops rapidly as altitude increases. Max Q emerges from the competition between those two changing quantities; it cannot be inferred from speed or altitude alone.

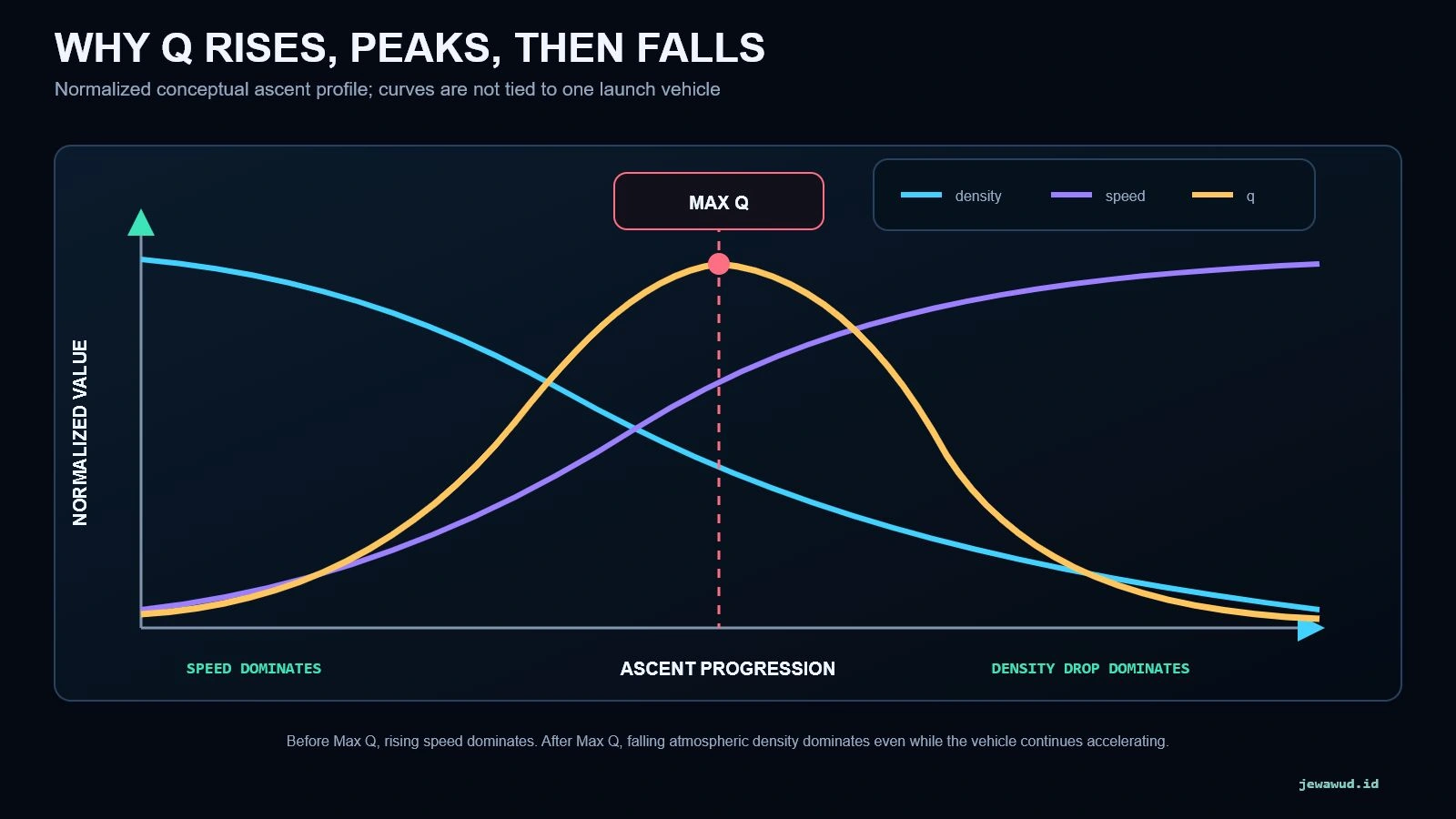

During the first part of ascent, velocity grows quickly while the rocket remains inside substantial atmosphere. The squared-speed term grows strongly enough to outweigh the reduction in density, so q rises. The vehicle may also pass through transonic flow during this broad part of the trajectory, adding changes in aerodynamic coefficients and unsteady flow behavior to the load environment.

At Max Q, the instantaneous product of density and velocity squared is at its greatest value for that ascent. The rocket does not stop accelerating there. It can continue gaining speed while q falls because atmospheric density is now declining faster than the squared-speed term is growing.

This explains why Max Q is not maximum velocity. Orbital launch vehicles normally reach their highest ascent velocity much later, when they are above almost all of the atmosphere. It is also not a universal altitude or mission time. The peak shifts with trajectory, acceleration history, winds, vehicle configuration, guidance, throttle schedule, and atmospheric conditions.

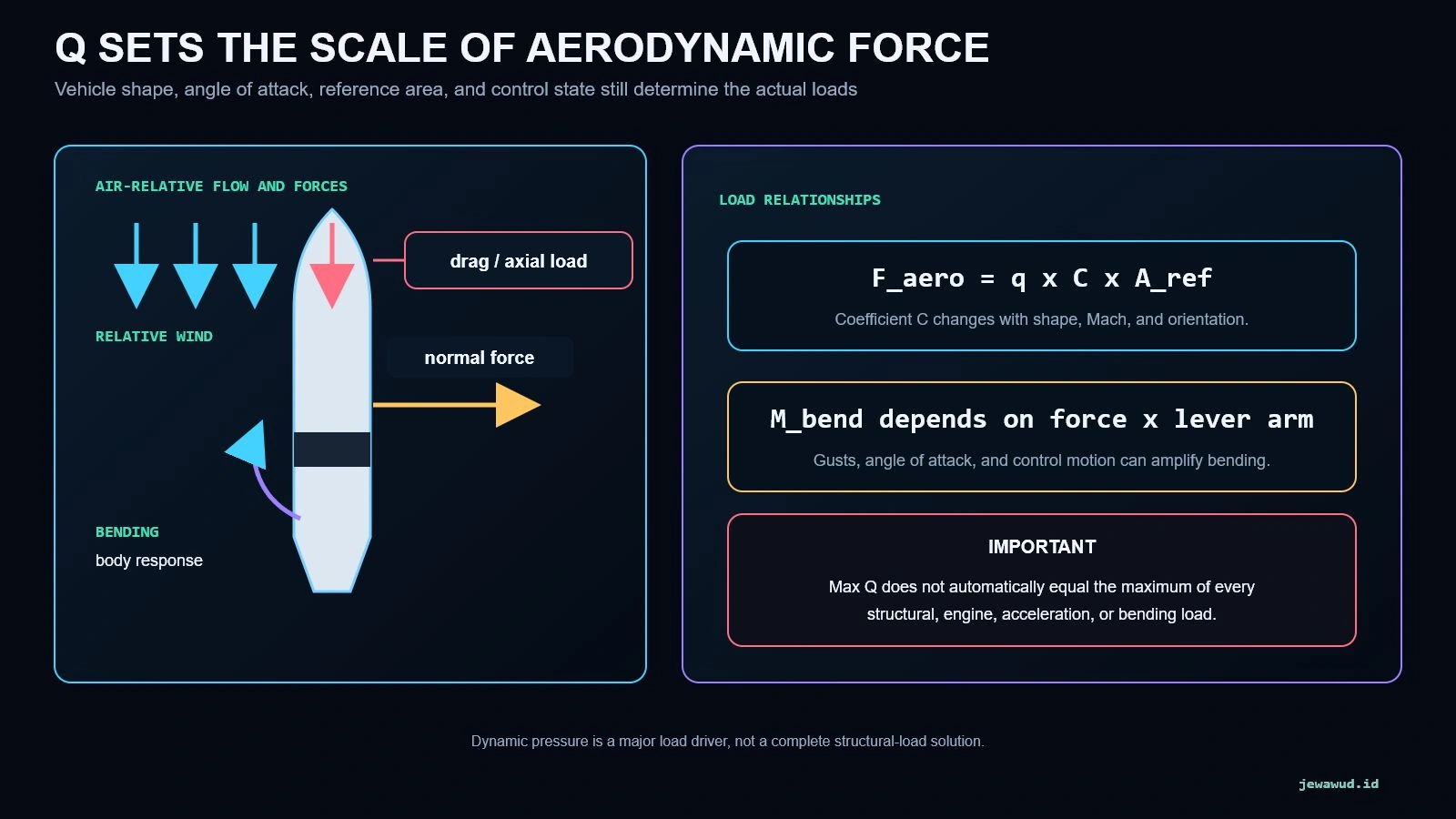

Aerodynamic force is commonly written in coefficient form as F = q C A_ref. Dynamic pressure q sets the flow scale, reference area A_ref sets the size scale, and coefficient C represents the effects of geometry, Mach number, orientation, and the particular force component being calculated. Drag, normal force, and other components use the coefficients appropriate to each definition.

For a tall launch vehicle, side force deserves special attention. A force acting far from a structural attachment or center of response creates a bending moment. Angle of attack, winds, gusts, engine gimballing, control commands, mass distribution, and flexible-body motion can change that response. Engineers therefore evaluate coupled load cases rather than approving a vehicle from one q number.

Max Q is often described as the point of maximum aerodynamic stress, which is useful shorthand for public commentary. Strictly, the maximum of a particular force or structural response does not have to occur at the exact instant of maximum q because coefficients, angle of attack, lever arms, control state, and vehicle dynamics are changing too.

Mach 1 is the local speed of sound. Max Q is the peak of dynamic pressure. Launch vehicles may encounter them near each other because both occur during rapid acceleration through the atmosphere, but they are different quantities and their timestamps need not match.

The transonic region is aerodynamically complicated. Shock formation, flow separation, rapidly changing pressure distributions, and coefficient changes can occur as different parts of a long vehicle experience local subsonic and supersonic flow. Those effects can influence loads even though the simple q equation itself contains only density and speed.

A visible condensation cloud is not a reliable Max Q indicator either. Condensation depends on humidity, temperature, and local pressure changes. A rocket can pass Max Q without a dramatic vapor cone, and a striking cloud does not prove that the dynamic-pressure peak occurred at that exact frame.

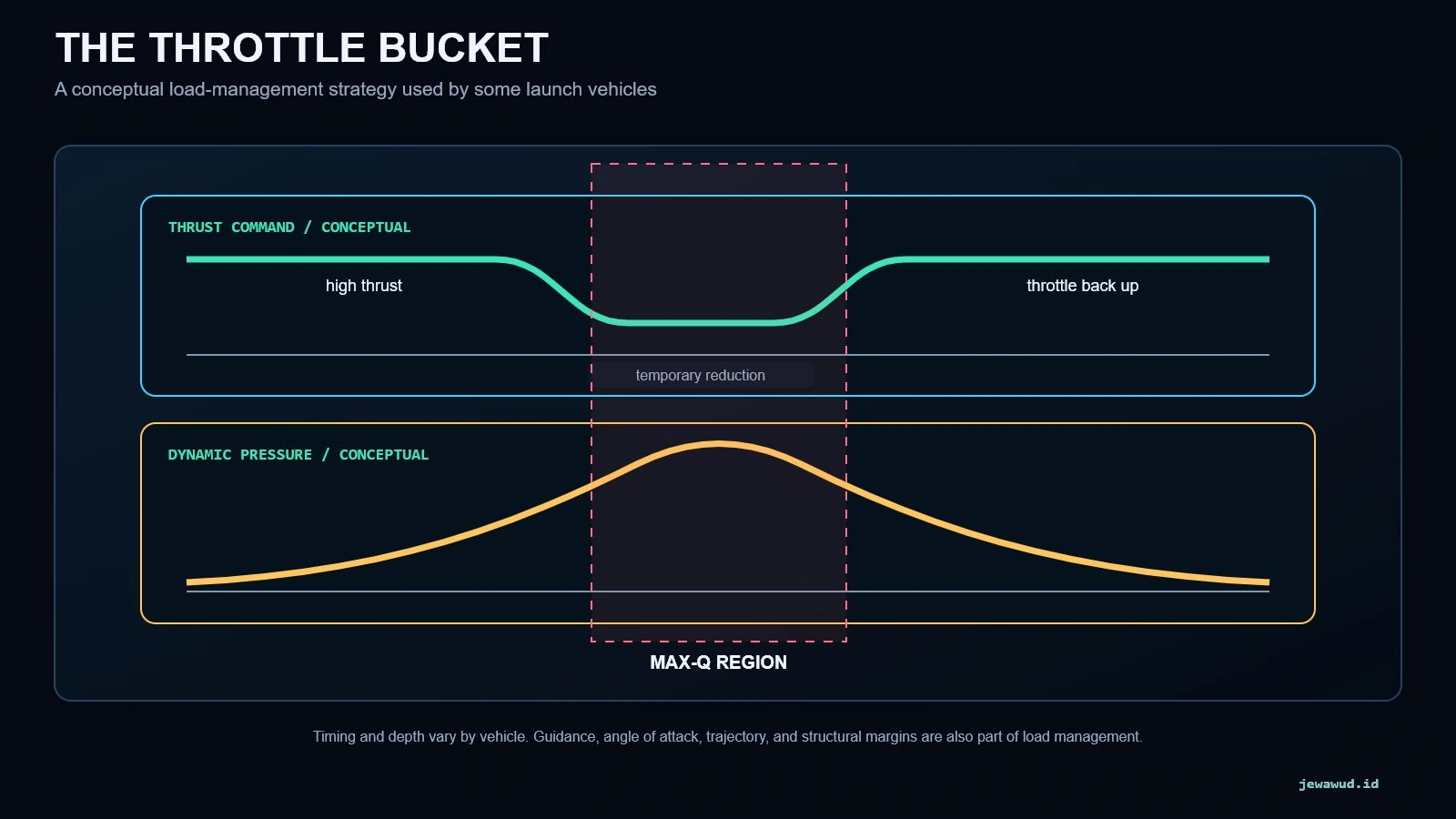

One way to manage the Max-Q region is a throttle bucket. The engines operate at high thrust after liftoff, reduce thrust temporarily before or around the high-dynamic-pressure portion of ascent, and throttle back up after the air becomes thinner. Reducing acceleration limits how quickly velocity grows while density remains high, helping keep q and related loads within the planned envelope.

The throttle command does not directly erase atmospheric force. It changes the future velocity history and therefore changes q. The guidance system must still hold a suitable attitude and angle of attack, and structural margins must account for winds, dispersions, control activity, and flexible response.

Not every vehicle produces the same visible throttle bucket. Solid rocket boosters have limited throttling options, some liquid engines have different throttle ranges, and trajectories can be shaped through guidance as well as thrust. The timing and depth shown in the diagram are conceptual, not a Falcon 9, Atlas, SLS, or Soyuz flight trace.

Maximum acceleration often arrives later in a stage burn after substantial propellant has been consumed. The same thrust is then accelerating less mass. Maximum engine load can be associated with chamber pressure, turbomachinery, start transients, throttling, or other operating points. Maximum structural compression, local panel load, vibration, or bending can occur at different times.

Heating also follows different physics. Convective aerodynamic heating depends on velocity, density, geometry, and boundary-layer behavior in a way that is not identical to q. Reentry vehicles, for example, can experience peak heating and peak dynamic pressure at different points on their trajectories.

The disciplined statement is therefore: Max Q is maximum dynamic pressure. It is a valuable marker because aerodynamic forces scale with q, but complete vehicle qualification requires many load, thermal, acoustic, propulsion, guidance, and uncertainty cases.

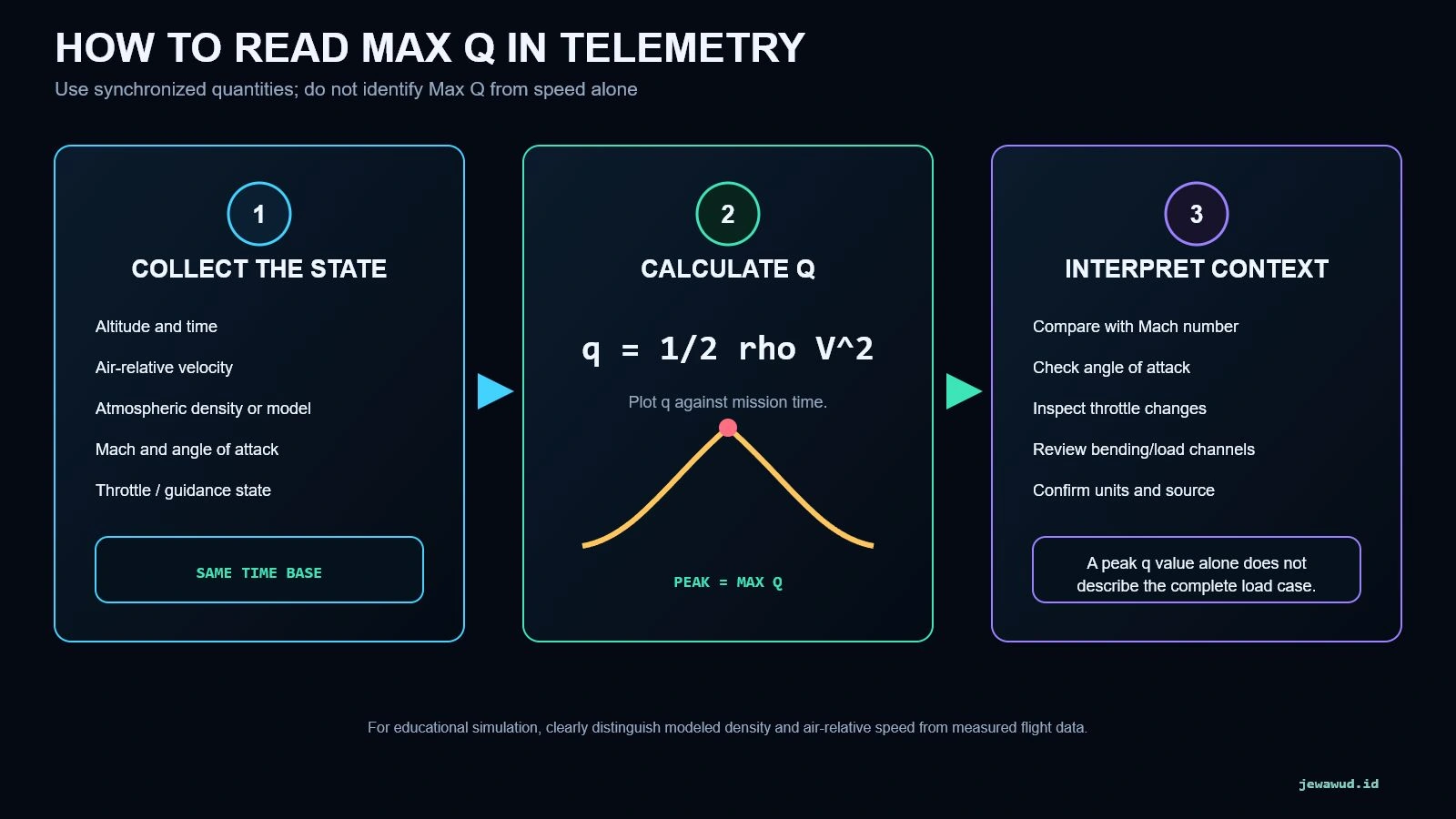

To identify Max Q from a data set, place altitude, atmospheric density, air-relative speed, Mach number, throttle state, and attitude-related quantities on a common time base. Calculate q at each sample using consistent SI units, then find the maximum of the resulting q history. Do not choose the fastest sample and label it Max Q.

Next, interpret the peak alongside angle of attack, winds or modeled winds, guidance events, and structural-load channels if those are available. A q peak with near-zero angle of attack can be a different bending case from a slightly lower q value accompanied by stronger crossflow or a control transient.

Public launch telemetry rarely exposes every engineering channel. A webcast may announce Max Q using onboard or ground-derived mission logic while showing only altitude and speed to viewers. The absence of a displayed q gauge does not mean the event was guessed from a single visible number.

Jewawud's Rocket Mission Simulator includes a Falcon 9 preset that can be used as an educational example. Start the preset at normal time speed and watch altitude and velocity together rather than following either value alone. During the early climb, the vehicle accelerates inside relatively dense air. Later, it continues accelerating in much thinner atmosphere.

If the simulation displays dynamic pressure, identify the peak directly from that channel. If it provides density and air-relative speed, calculate q from those synchronized values. If it shows only altitude and speed, you can discuss the expected trend but should not claim an exact Max Q without an atmospheric model and a clearly defined velocity reference.

Compare the q peak with any throttle reduction or Max-Q event marker in the simulation. Then repeat with a deliberately different ascent profile and observe how the timing or magnitude changes. This is a sensitivity exercise: the simulator is an educational model, not official SpaceX telemetry, flight software, or a certified loads-analysis tool.

"Max Q means maximum speed." No. Velocity normally continues increasing after q has begun to fall.

"Max Q always happens at Mach 1." No. Mach number and dynamic pressure are separate quantities, even if their milestones can occur near one another.

"The thickest atmosphere creates Max Q." Not at liftoff, because speed is initially near zero.

"Passing Max Q means aerodynamic forces disappear." No. They usually decline from the peak but remain present until the atmosphere becomes sufficiently thin.

"Max Q is automatically the maximum structural stress." Not for every component or response. Coefficients, attitude, winds, leverage, mass distribution, and dynamics also matter.

"A vapor cone shows Max Q." Not reliably. Visible condensation depends strongly on local weather and flow conditions.

The definitions and flight interpretation in this guide were checked against primary NASA educational and mission sources:

• NASA Glenn Research Center - Dynamic Pressure
• NASA Glenn Research Center - Density Effects
• NASA Glenn Research Center - Bernoulli's Equation and Dynamic Pressure
• NASA Launch Services Program - Atlas V Reaches Mach I, Followed by Max Q
• NASA - Atlas V Reaches Max Q During Starliner Crew Flight Test

The plotted curves are normalized teaching diagrams. They explain relationships but do not reproduce a proprietary trajectory, engine throttle table, atmosphere realization, or certified launch-vehicle load case.
