Thrust-to-Weight Ratio
Why Rockets Lift Off

A motor specification may advertise hundreds, thousands, or millions of newtons of thrust. That number sounds impressive, but it is incomplete without the mass of the vehicle it must accelerate. A 500 N motor can lift a light research rocket and fail to move a much heavier one. Thrust-to-weight ratio, commonly shortened to TWR, makes the comparison explicit.

Vehicle TWR is instantaneous thrust divided by instantaneous vehicle weight. Near Earth's surface, weight is mass multiplied by local gravitational acceleration, so TWR = T / (m g). Thrust and weight are both forces measured in newtons, which makes TWR dimensionless. A value of 1.0 means the two force magnitudes are equal. A value above 1 means thrust is greater than weight; below 1, weight is greater than thrust.

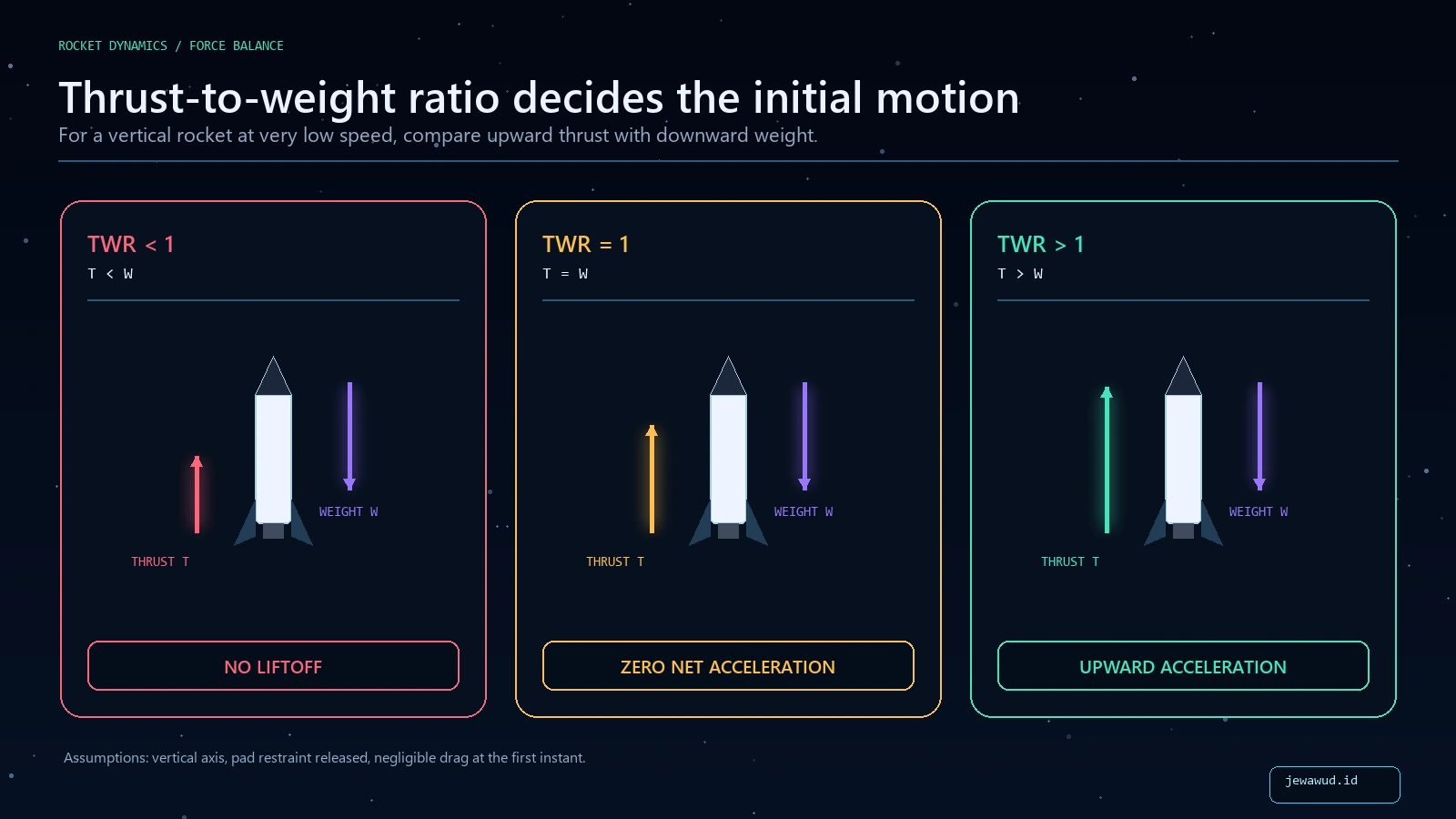

For a vertical launch at the first instant after pad restraint is released, thrust must exceed weight. This is the origin of the familiar statement that a rocket needs TWR greater than 1 to lift off. It is a necessary starting condition, not a complete flight-safety rule. A real rocket must also leave its launch guide at adequate speed, remain stable, tolerate wind and thrust variation, and stay within structural and aerodynamic limits.

Newton's second law connects force to acceleration. For a rocket traveling vertically at very low speed, drag is initially small and the simplified vertical force balance is F = T - W. Since W = m g, the ideal instantaneous acceleration becomes a = (T - m g) / m, or a = T/m - g.

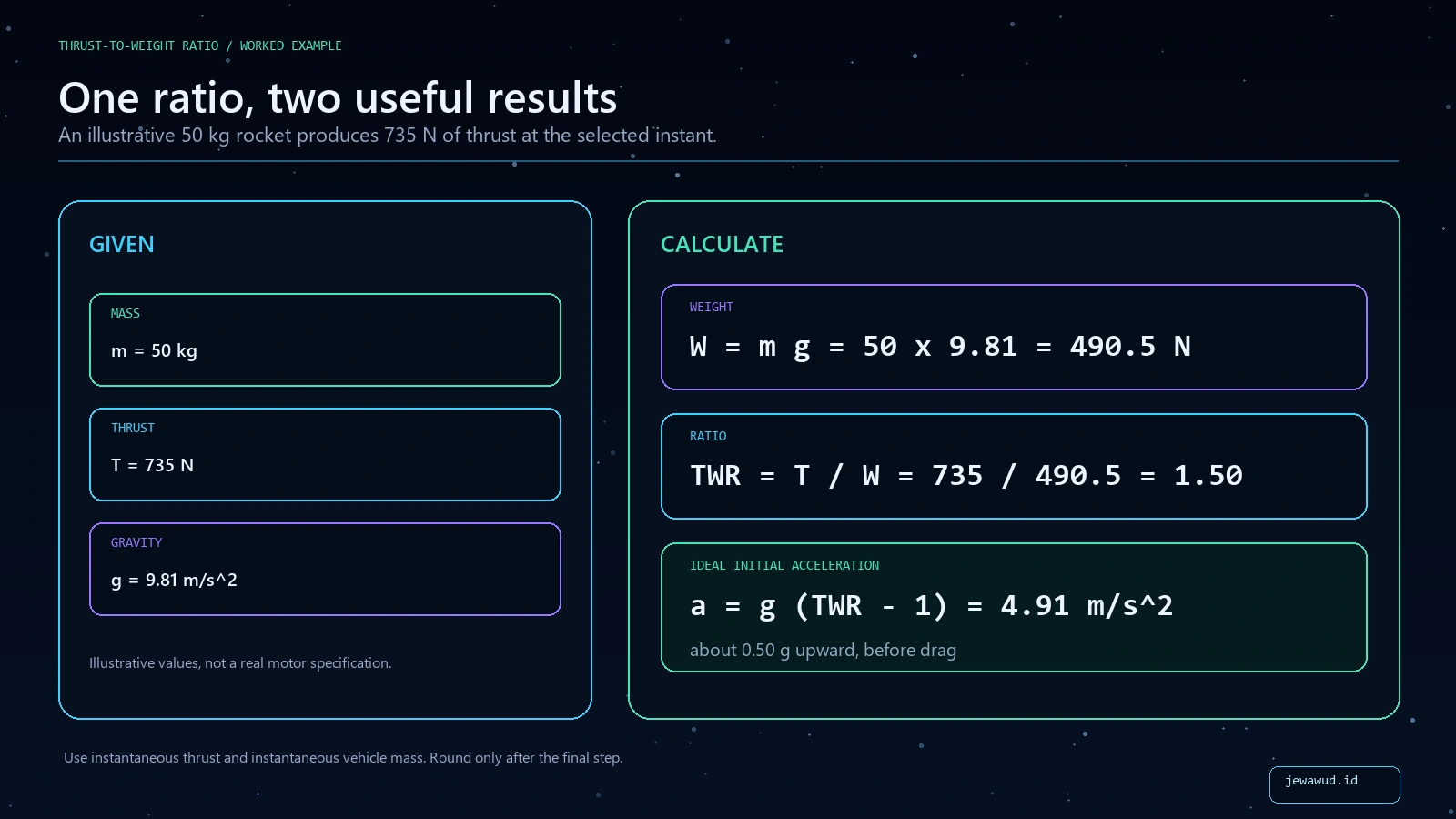

Substituting TWR gives a compact result: a = g(TWR - 1). If TWR is 1.0, the ideal acceleration is zero. At TWR 1.5, the ideal initial upward acceleration is about 0.5 g. At TWR 2.0, it is about 1 g upward. These values describe acceleration of the vehicle relative to the ground, not the total sensation an onboard structure or payload necessarily experiences in every direction.

The formula is deliberately simplified. Once velocity builds, aerodynamic drag subtracts from the available upward force. If the rocket tilts, only the vertical component of thrust opposes weight. Wind, guide friction, thrust misalignment, changing gravity, and other forces may matter. Nevertheless, the simplified equation is valuable because it reveals what the ratio means physically instead of treating TWR as a label.

Mass describes the amount of matter and inertia of the rocket; its SI unit is the kilogram. Weight is the gravitational force acting on that mass; its SI unit is the newton. Saying a rocket "weighs 50 kilograms" is common speech, but the technical calculation needs 50 kg of mass multiplied by gravitational acceleration to obtain about 490.5 N of weight near Earth's surface.

This distinction becomes important away from Earth. The same rocket retains approximately the same mass on the Moon, but its weight is much smaller because lunar gravity is weaker. If its motor produces the same thrust, its local TWR is higher. Engineers must therefore state which gravitational environment and which reference acceleration are being used.

For Earth launch calculations, g0 = 9.80665 m/s squared is the defined standard gravity often used in propulsion equations. A local value may differ slightly with latitude and altitude. Educational calculations usually use 9.81 m/s squared, but a report should name the convention so another reader can reproduce the result.

An engine can have its own thrust-to-weight ratio: engine thrust divided by the engine's weight. This metric helps compare propulsion hardware. It says how much thrust the engine produces relative to the mass penalty of carrying that engine. It does not say whether the complete rocket can lift off.

Vehicle TWR uses total operating thrust and total vehicle weight. The denominator includes structures, tanks or motor case, propellant, avionics, recovery hardware, fairing, payload, and every installed subsystem. For a cluster, the numerator is the combined thrust of the operating motors or engines, accounting for any unit that is intentionally inactive or unavailable.

Confusing the two ratios can produce absurd conclusions. A lightweight engine may have a very high engine TWR while being installed in a vehicle whose total launch TWR is modest. When discussing launch, rail departure, ascent acceleration, or staging, the vehicle ratio is normally the relevant quantity.

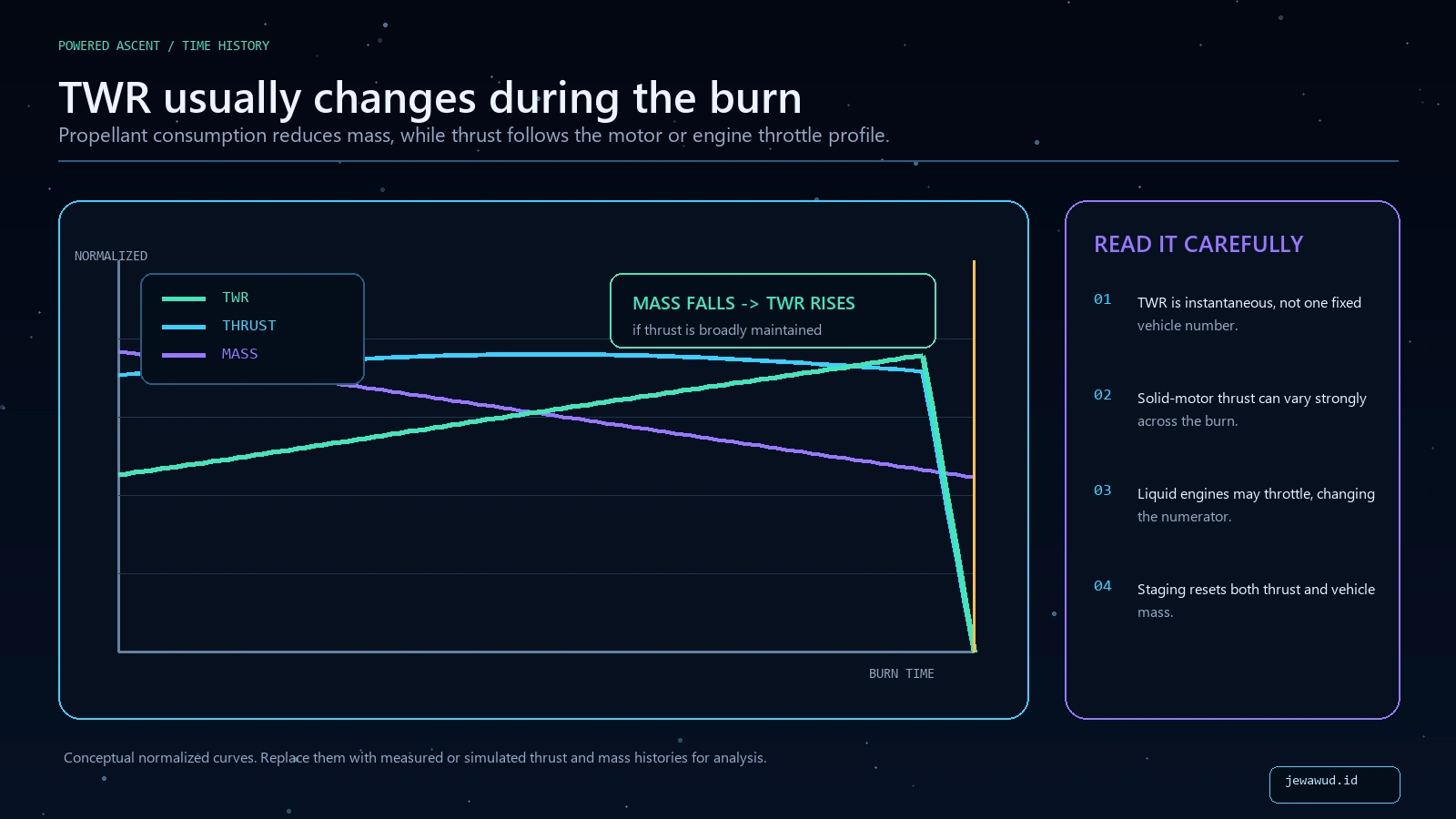

A launch TWR is only a snapshot. As propellant leaves the vehicle, total mass decreases. If thrust remains broadly constant, the same force acts on less mass and TWR rises. That is why many rockets experience their strongest longitudinal acceleration late in a stage burn rather than immediately after launch.

Thrust is not necessarily constant. A solid motor follows a thrust curve determined by propellant behavior, grain geometry, chamber pressure, throat evolution, nozzle performance, and transient effects. A liquid engine may throttle. Ambient pressure changes with altitude and can alter the pressure contribution to nozzle thrust. TWR therefore requires synchronized thrust and mass histories, not one average-thrust number divided by launch weight.

Staging creates a discontinuity. When an empty stage is discarded, vehicle mass drops; when its engines stop, thrust also drops. The next stage has a new propulsion system and a new mass. Analysts calculate the ratio on the correct side of each event instead of drawing one smooth line through separation.

A rocket at TWR 1.01 has positive ideal acceleration, but only about 0.01 g upward before drag and other losses. It would gain speed slowly. For a guided model or research rocket, slow departure can leave aerodynamic fins ineffective for longer and give wind more time to rotate the vehicle as it leaves the rail or rod.

Low acceleration also increases gravity loss. During powered ascent, part of the available thrust is continually spent opposing weight instead of increasing velocity. A vehicle that climbs slowly spends more burn time paying that gravitational cost. This does not mean the highest possible TWR is always optimal; it means merely crossing 1.0 is not a sufficient design objective.

Launch-guide length, allowable departure speed, center-of-mass travel, stability margin, wind range, motor ignition behavior, and thrust variability must be evaluated together. A motor whose average thrust appears adequate may have an early portion of its curve that produces insufficient acceleration at the time the rocket needs it most.

High TWR produces rapid acceleration, which can reduce time spent fighting gravity. It can also raise structural demand, payload acceleration, launch-guide reaction, control sensitivity, and the rate at which the vehicle enters high-speed aerodynamic flow. The atmosphere does not care that a high TWR looks efficient on a spreadsheet.

As explained in the Max Q guide, aerodynamic force scales with dynamic pressure and coefficients. A rocket that builds velocity rapidly in dense air may encounter a more demanding load history unless its trajectory and thrust program are designed accordingly. For a small rocket, fast rail departure can help stability, but excessive acceleration can challenge airframes, electronics, joints, recovery systems, or sensitive payloads.

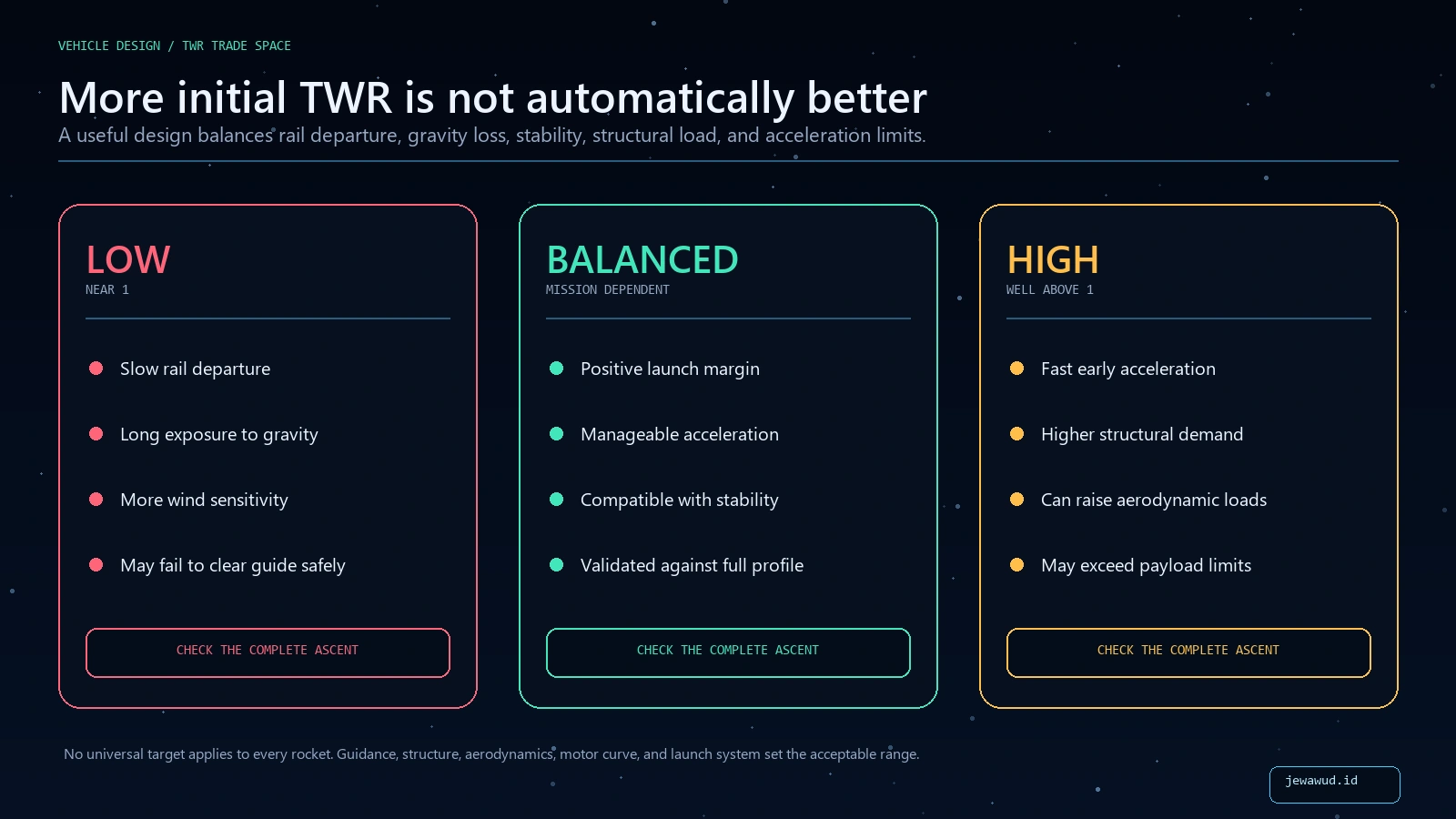

The correct target is therefore mission dependent. A practical design must satisfy a lower bound associated with launch and early control while staying below upper bounds from structure, aerodynamics, guidance, motor operation, payload, and regulations. TWR is part of a design envelope, not a score to maximize.

Peak thrust is the highest point on a thrust-time curve. It may last only briefly. Average thrust spreads total impulse over the burn duration. Neither value alone describes the complete early flight. TWR should be evaluated sample by sample using T(t) and m(t), especially near ignition, guide departure, thrust transitions, and burnout.

For a solid motor, the shape can be progressive, approximately neutral, regressive, or more complex. A sharp ignition spike should not automatically be treated as sustainable launch thrust. A long low tail may contribute impulse while no longer overcoming the vehicle's weight and drag. Motor data should be filtered and interpreted with awareness of sensor calibration, sampling rate, test setup, and uncertainty.

Thrust measured on a static test stand is also not the whole flight model. The installed motor, nozzle environment, vehicle mass, aerodynamic drag, launch angle, and atmosphere must be represented. This is why motor analysis and vehicle simulation are related but separate tasks.

Jewawud's Rocket Motor Designer lets you inspect predicted thrust, chamber pressure, burn time, total impulse, grain behavior, and nozzle settings as a connected model. For TWR work, export or read the thrust history rather than copying only the peak. Combine each thrust sample with the complete vehicle mass expected at the same time.

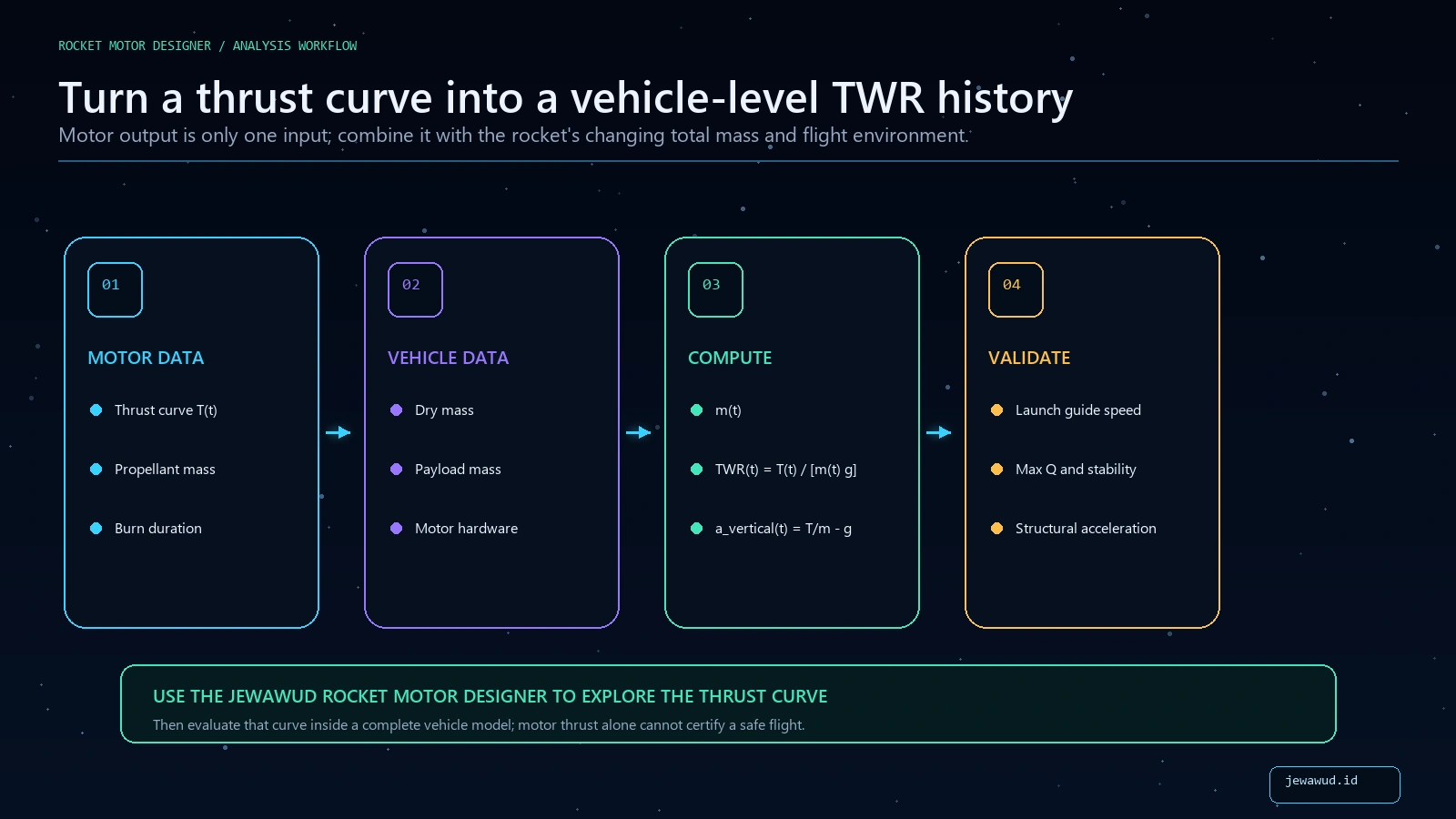

Start with a preset, record the predicted thrust curve, and define launch mass from the assembled vehicle. Estimate propellant depletion consistently with the motor model. Calculate TWR(t) = T(t) / [m(t) g], then calculate the ideal axial acceleration T(t)/m(t). When modeling vertical ground-relative acceleration, subtract gravity and include drag and other forces appropriate to the simulation.

Check early thrust against launch-guide requirements, then inspect the entire powered profile for acceleration and load limits. Changing grain geometry or throat size may reshape the thrust curve, but it may also change chamber pressure, burn time, total impulse, and active warnings. Treat every adjustment as a coupled change rather than a shortcut to a preferred TWR number.

Dividing thrust by mass. Newtons divided by kilograms gives acceleration, not TWR. Divide thrust by weight in newtons, or divide T/m by g.

Using motor mass as vehicle mass. Launch TWR requires the total assembled rocket mass, including payload and hardware.

Using peak thrust for the whole burn. Use the time-resolved thrust curve. A brief peak may not represent guide departure or sustained ascent.

Assuming TWR greater than 1 proves a safe launch. It proves only that ideal upward thrust exceeds weight at that instant. Stability, guide speed, wind, structure, recovery, regulations, and range safety remain separate requirements.

Calling engine TWR the launch TWR. The engine ratio describes propulsion hardware; the vehicle ratio describes the complete rocket.

Ignoring changing mass. Full-scale launch vehicles can consume a large fraction of their mass as propellant. Even small solid rockets need the thrust history evaluated against the relevant mass history when accurate acceleration is required.

Define whether the ratio refers to one engine, one stage, or the complete vehicle. Record thrust source, mass source, gravity convention, atmosphere, and time reference. Use consistent SI units. Plot thrust, mass, TWR, and acceleration on a shared timeline, and mark ignition, guide departure, Max Q, staging, throttling, and burnout where applicable.

Next, test uncertainty. Examine low-thrust and high-mass cases for launch margin, then high-thrust and low-mass cases for acceleration and structure. Add wind, drag, and stability analysis. Compare predicted values with calibrated test data when available. Preserve assumptions so another person can reproduce the calculation.

Rocket Motor Designer is an educational analysis tool, not authorization to manufacture, test, or launch a motor. Physical propulsion work involves fire, pressure, energetic materials, debris, and legal restrictions. Use qualified supervision, certified hardware where required, an approved range, and the rules applicable to your location.

The force relationships and rocket-flight interpretation in this guide were checked against primary NASA educational sources:

• NASA Glenn Research Center - Beginner's Guide to Rockets
• NASA Glenn Research Center - Acceleration at Liftoff
• NASA Glenn Research Center - Flight of a Model Rocket
• NASA Glenn Research Center - Flight to Orbit
• NASA Glenn Research Center - Rocket Thrust Equation

The numerical example and plotted curves are teaching aids, not specifications for a real motor or launch vehicle. They are designed to make each equation auditable while avoiding false precision.
