Finding Voyager without GPS
How deep-space navigation works

A phone calculates its position by receiving precisely timed broadcasts from several navigation satellites. That architecture works near Earth because a dense constellation surrounds the planet, the signal geometry is designed for terrestrial users, and the receiver has a model of the satellite orbits and clocks.

Voyager operates far outside that environment. GPS spacecraft point their primary service toward Earth, and their signals become extraordinarily weak and geometrically clustered when viewed from interplanetary distances. More importantly, Voyager was designed before GPS became operational and carries no ordinary GPS navigation receiver.

Deep-space navigation solves a different problem. Instead of the spacecraft independently reporting a ready-made latitude and longitude, Earth-based teams estimate a six-dimensional state: three components of position and three of velocity at a stated time. They combine radio observations with physics and update that estimate whenever new data arrive.

Engineers never begin with no idea where the spacecraft is. The previous best state is propagated forward through a mathematical model. The model includes the Sun's gravity, planetary gravity, the spacecraft's past maneuvers, and smaller effects that matter at the required accuracy.

That prediction tells a Deep Space Network antenna where to point and what carrier frequency to expect after Doppler shift. It also predicts when Earth rotation gives a station visibility. Goldstone, Madrid, and Canberra then collect tracking data during scheduled passes.

The prediction is not treated as truth. Small errors in the initial state, maneuver execution, force models, or station calibration grow over time. Measurements reveal the difference between expected and observed behavior. Orbit-determination software adjusts the estimated state to best fit the accumulated evidence.

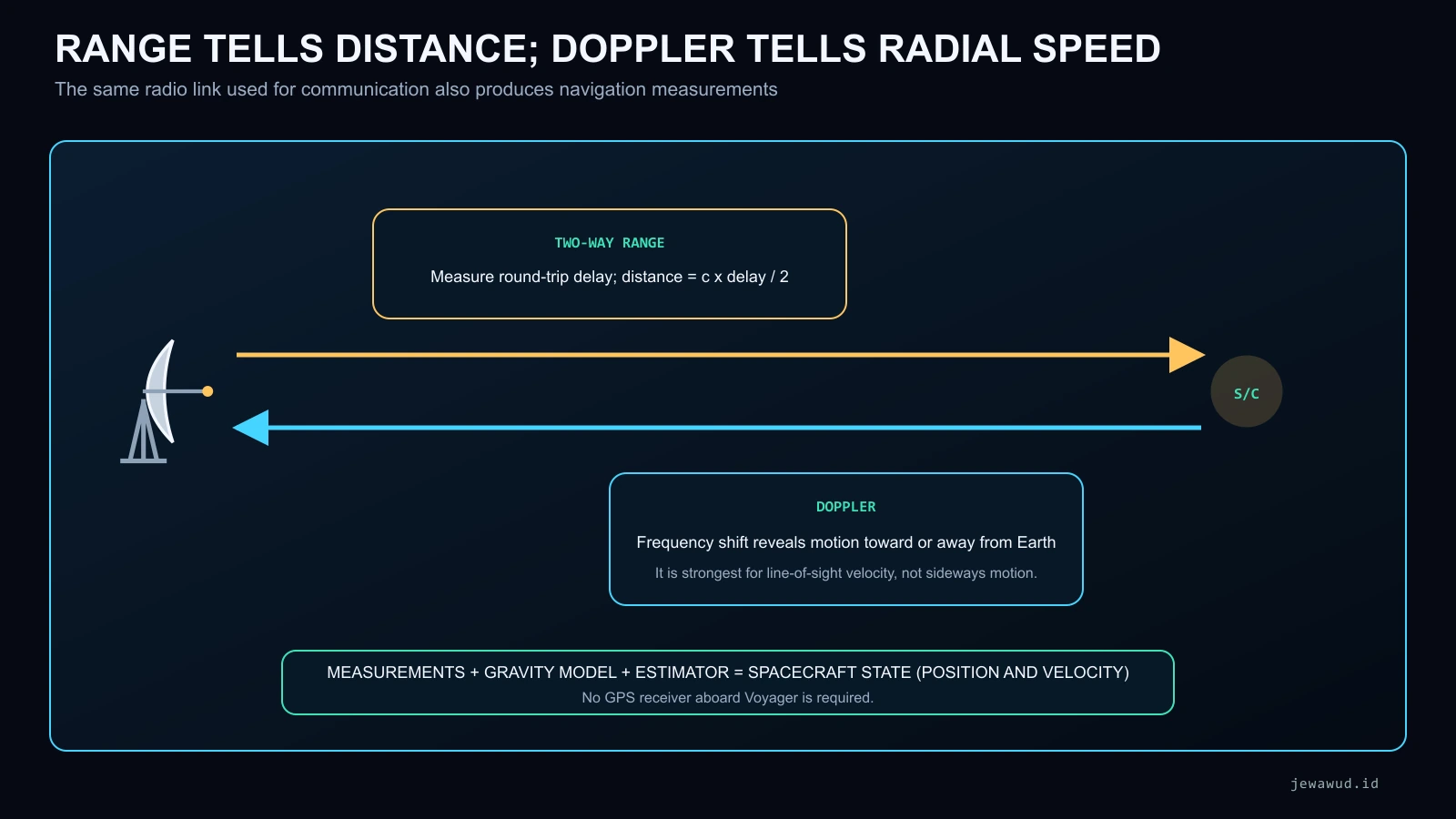

A DSN station sends a specially coded radio signal toward the spacecraft. Voyager's transponder receives it and returns a coherently related signal. By measuring the round-trip delay and accounting for known hardware delays, station position, relativity, and propagation effects, navigators obtain a precise two-way range.

The classroom expression is distance equals the speed of light multiplied by round-trip time and divided by two. Real processing is more complicated because Earth and Voyager move during the measurement, the signal passes through Earth's atmosphere and solar plasma, and the turnaround occurs in spacecraft hardware rather than at a perfect mathematical point.

Range is powerful along the Earth-spacecraft line of sight. By itself it does not perfectly determine which direction across the sky the spacecraft lies. Many nearby directions can have almost the same distance, which is why the tracking system uses complementary measurements.

If the spacecraft moves away, the received carrier frequency shifts downward; if it approaches, the frequency shifts upward. DSN's extremely stable frequency standards allow tiny changes to be measured over time. The result provides very precise velocity along the line connecting station and spacecraft.

Two-way coherent Doppler is especially useful because the spacecraft transponder returns a signal related to the uplink. Navigators compare the observed frequency history with the predicted history. A residual can indicate that the assumed velocity, gravity model, maneuver, or other force is slightly wrong.

Doppler is less sensitive to motion perpendicular to the line of sight. Imagine watching a car cross a distant horizon at nearly constant distance: its sideways position can change substantially while range and radial speed change only a little. Deep-space navigation therefore needs an angular constraint.

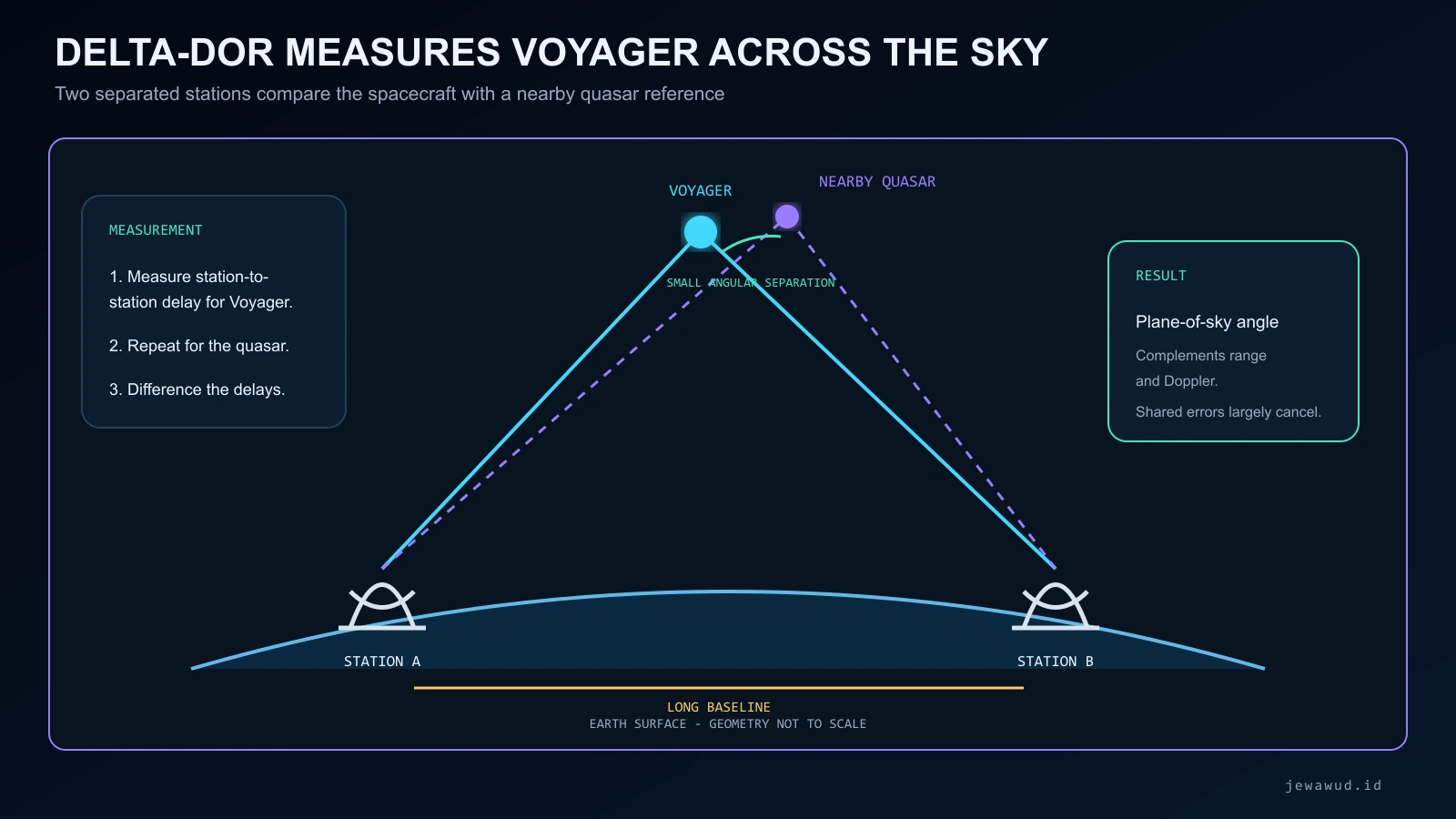

Delta-Differential One-way Ranging, shortened to Delta-DOR, uses two DSN antennas separated by a very long baseline. Both stations observe the spacecraft's radio signal. Because the wavefront reaches one antenna before the other, the difference in arrival time constrains direction across the sky.

Station clocks, atmosphere, and instrumentation introduce errors. To reduce them, the antennas also observe a quasar close to the spacecraft's apparent direction. A quasar is an extremely distant radio source whose direction is effectively fixed for this purpose. Subtracting the quasar delay from the spacecraft delay cancels much of the error shared by the nearby lines of sight.

Delta-DOR complements range and Doppler by adding precise plane-of-sky angular information. The geometry is similar in spirit to very long baseline interferometry, but the operational product is tailored to spacecraft navigation. The spacecraft does not navigate by visually seeing the quasar; ground antennas and processing systems perform the comparison.

Many planetary missions take optical navigation images of moons, planets, or stars. Analysts compare the measured direction and apparent size of a target with predicted geometry. Limb locations and background stars can help refine the spacecraft's relation to an encounter body.

Voyager used optical navigation during its planetary tour when approach geometry had to be refined for close flybys. In today's interstellar cruise, the mission relies primarily on radio tracking and no longer uses its cameras. The appropriate measurement set changes with mission phase.

This distinction matters: "spacecraft navigation" is not one universal sensor. Earth satellites may use GNSS, star trackers, horizon sensors, ground radar, laser ranging, or onboard orbit determination. Interplanetary missions combine the tools that suit their distance, hardware, and target accuracy.

Orbit determination compares measured range, Doppler, and angular data with values predicted from a candidate trajectory. An estimator changes the initial position, velocity, and sometimes other parameters until the residuals are statistically consistent with measurement noise and model uncertainty.

The output is not merely one point. It includes a covariance matrix describing uncertainty and correlations. Position uncertainty may be long in one direction and narrow in another because the measurements do not constrain every dimension equally. Future propagation causes that uncertainty region to evolve.

Analysts inspect residuals rather than blindly accepting a numerical fit. A pattern can reveal unmodeled thrust, a station calibration problem, corrupted data, an incorrect maneuver history, or underestimated noise. Navigation is therefore an engineering judgment supported by statistics, not a GPS-style coordinate displayed without context.

Voyager's onboard attitude-control system and Earth-based orbit determination solve related but different problems. The spacecraft uses sensors and gyroscopes to maintain orientation so its high-gain antenna points toward Earth. Ground navigation estimates where the spacecraft is moving through the Solar System.

A spacecraft could have an accurate trajectory estimate but poor attitude and lose communication. It could also point correctly while the long-term trajectory contains a small error. Radio contact helps both systems: Doppler and range improve the trajectory, while telemetry reports attitude and hardware state.

The linked Voyager communication article follows commands and telemetry through the same radio connection. Navigation uses the carrier's timing, frequency, and arrival geometry; communication uses modulation on that carrier to exchange information.

During the planetary encounters, a small targeting error could grow into a large miss distance, so navigators scheduled trajectory correction opportunities. They predicted the encounter, assessed covariance at the target, designed a maneuver, and commanded thrusters only when the expected benefit justified the risk and propellant.

A burn never occurs exactly as commanded. Thruster performance, pointing, timing, and vehicle mass introduce execution error. Radio tracking after the maneuver measures what actually happened, and the estimator creates a new state. Navigation therefore continues after correction rather than assuming the burn was perfect.

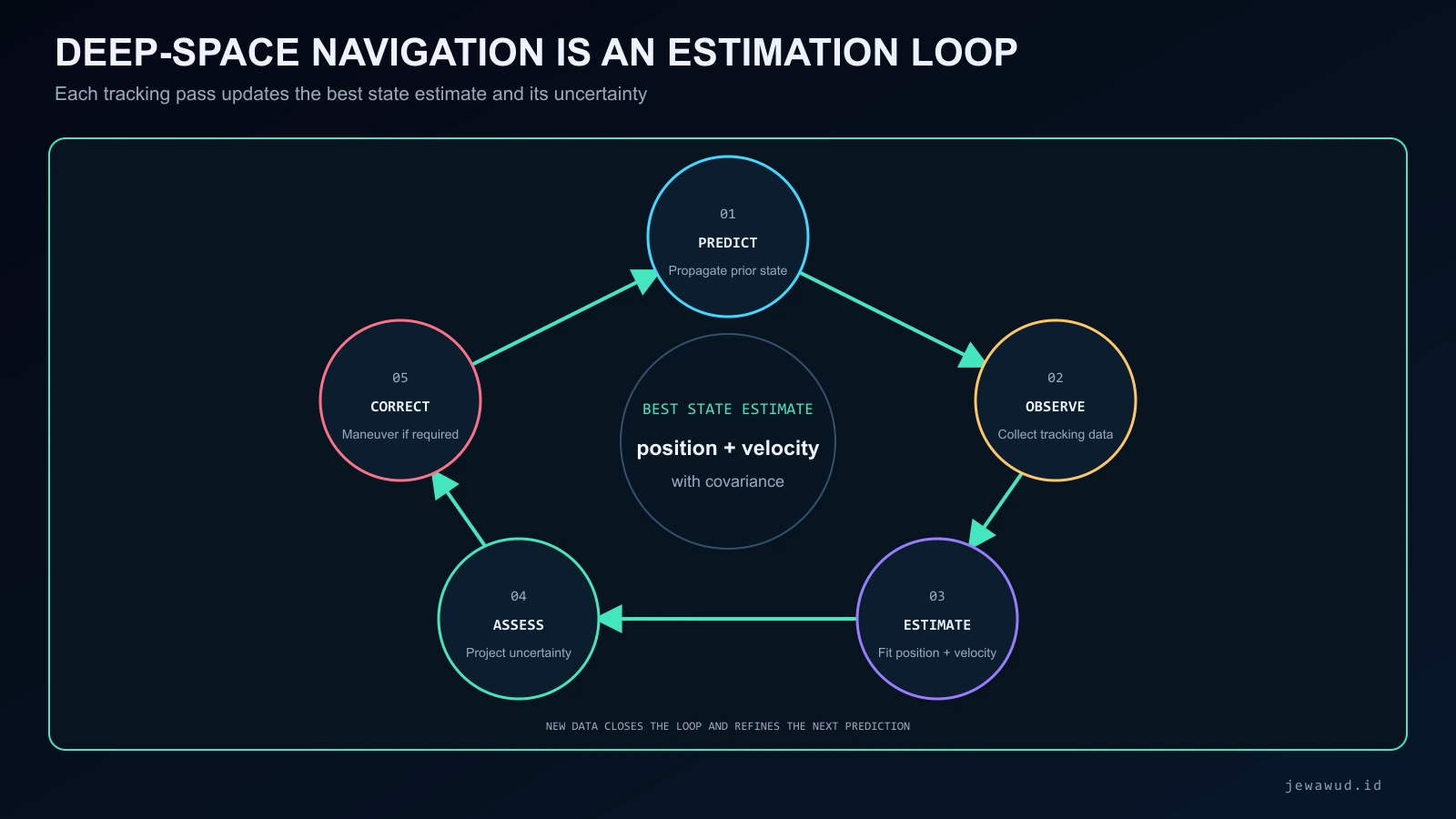

In interstellar cruise, Voyager is not steering toward another close planetary flyby. Its small thruster activity primarily supports attitude and communication geometry. The same principles remain: predict, measure, estimate, assess, and correct only as needed.

Voyager is far too faint for an ordinary telescope to provide continuous, precise three-dimensional tracking. Even a perfect angular image would not directly reveal distance or radial velocity. Radio tracking provides those dimensions through delay and frequency.

A single ground antenna also moves with Earth. Its known motion is useful: over time, changing station geometry adds information. The global DSN provides visibility, long baselines, calibrated station locations, stable timing, high sensitivity, and continuity as Earth rotates.

The navigation solution succeeds because no one measurement must do everything. Range, Doppler, Delta-DOR, optical data when available, force models, and prior trajectory knowledge constrain different aspects of the state. Their strengths overlap and their weaknesses differ.

Jewawud Orbital Tracker (JOT) visualizes Earth-orbiting satellites from public two-line element sets propagated with SGP4. That is a prediction service built around Earth satellite catalogs. It is not how JPL determines Voyager's interstellar trajectory.

Voyager navigation uses mission-specific radiometric observations and high-fidelity solar-system dynamics. There is no public TLE for Voyager and SGP4 is not an interplanetary propagator. The common principle is that every displayed position is model-based and time-dependent, not a dot read directly from empty space.

For Earth-orbit concepts, JOT makes orbital planes and motion tangible. For Voyager's hardware, the Voyager 3D Explorer shows the high-gain antenna and attitude architecture that maintain the radio path required for tracking.

The definitions and complementary roles of Doppler, range, and Delta-DOR were checked against NASA's Basics of Space Flight: Navigation. The DSN tracking process, predicted antenna pointing, frequency prediction, and ephemeris products were checked against NASA's Deep Space Network operations.

Technical Delta-DOR terminology and service behavior were cross-checked with NASA/JPL's official Deep Space Network Services Catalog. The diagrams simplify the signal geometry for teaching and are not drawn to astronomical distance scale.

Does Voyager know where Earth is? It maintains an Earth-pointing attitude using onboard guidance information and sensors, while detailed trajectory determination is performed on Earth.

Can Voyager navigate autonomously? It has onboard fault protection and attitude control, but its precise interplanetary trajectory is reconstructed and managed by ground teams.

Is Delta-DOR a radar measurement? No. It is an interferometric radio technique comparing arrival-time differences from the spacecraft and a quasar at separated antennas.

Why not simply calculate the trajectory from gravity? Models are never perfect and maneuvers are not executed exactly. Tracking observations continually anchor the prediction to reality.
