How spacecraft read the stars
inside a star tracker

A spacecraft must know two different things about itself. Its position and velocity describe where it is and how it moves along a trajectory. Its attitude describes how the spacecraft body is oriented: which direction its camera sees, where its antenna points, and whether its solar arrays face the Sun.

A star tracker solves attitude, not orbital position. It provides an orientation reference against the distant star field, which is effectively fixed for spacecraft pointing calculations. Orbit determination instead uses measurements such as radiometric tracking, GNSS in suitable Earth orbits, optical navigation, and dynamical models.

This distinction explains why Jewawud Orbital Tracker (JOT) can plot a satellite's propagated location without revealing how the real vehicle is rotated. A dot can be in the correct place while its payload points away from Earth, its antenna points toward a ground station, or its body slews toward a new target.

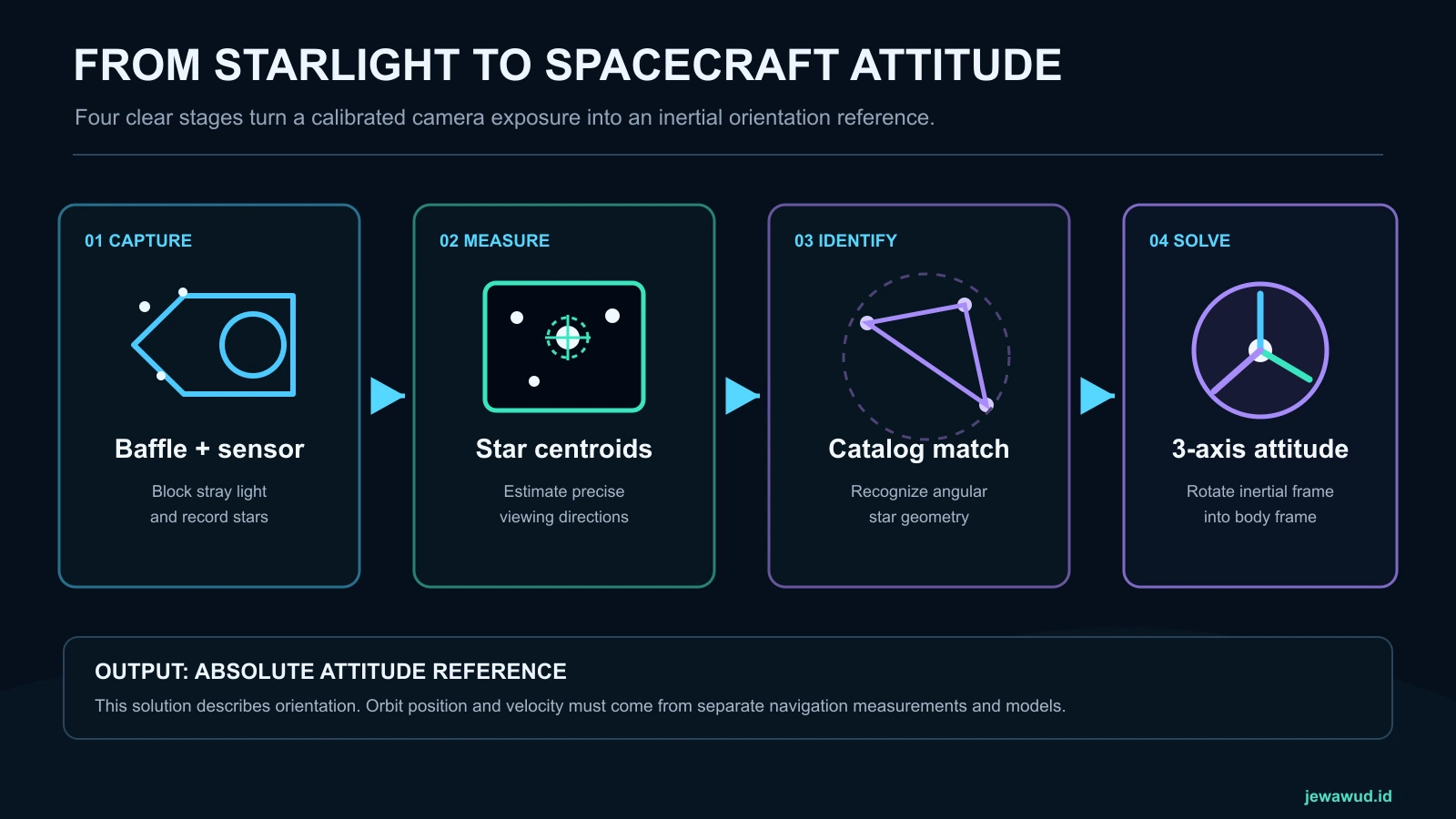

At its core, a star tracker combines a small optical camera, careful calibration, an onboard star catalog, and pattern-recognition software. A baffle limits stray light from outside the intended field of view. Optics focus stars onto an image sensor. Electronics digitize the exposure, and flight software decides which bright points are credible stars.

The onboard catalog does not need a photograph of every constellation. It stores selected stars and their known inertial directions, plus data structures that make pattern searches efficient. NASA's low-cost star-tracker work, for example, describes matching angular relationships from an observed image against catalog data derived from the Hipparcos catalog.

The instrument must also know its own geometry. Laboratory and in-flight calibration relate sensor pixels to viewing directions and align the tracker frame with the spacecraft body frame. Without that calibration, recognizing the sky would not be enough to tell the spacecraft which way its own hardware points.

A star rarely appears as one perfect pixel. Diffraction, focus, detector response, and motion spread its light across a small group of pixels. The processor first estimates the background level, rejects obvious noise, and finds compact bright regions that may be stars. It then calculates a centroid, a subpixel estimate of the center of each star image.

Centroid accuracy matters because a small pixel error becomes an angular pointing error. The conversion depends on focal length, pixel pitch, optical distortion, thermal stability, and calibration. A tracker may also reject elongated objects caused by spacecraft rotation, transient hot pixels, or signals that fail expected brightness and shape tests.

The output of this stage is not yet a named constellation. It is a list of measured viewing directions in the tracker frame. The software still has to determine which catalog stars produced those directions.

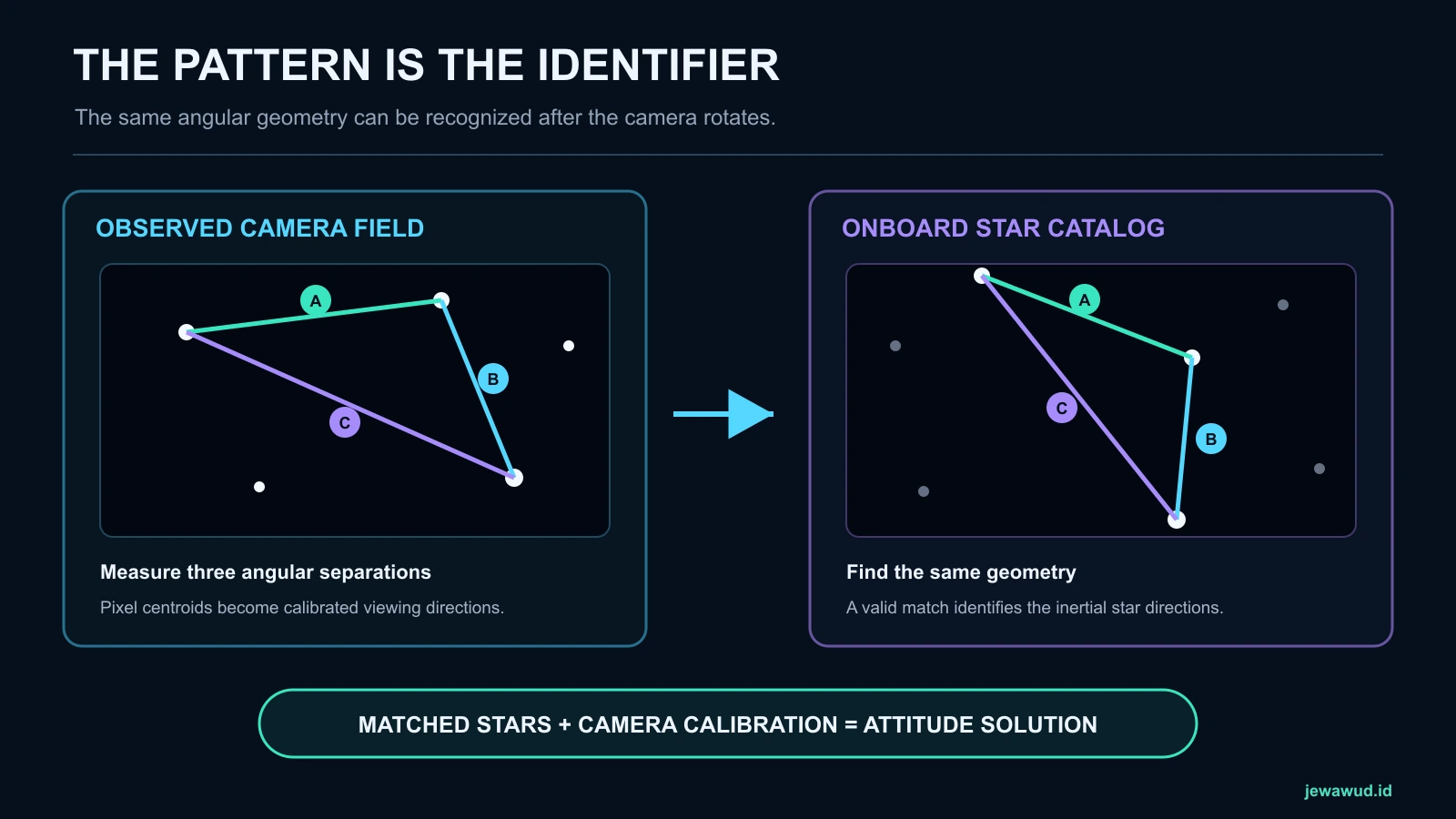

A single bright point is ambiguous because many catalog stars can have similar brightness. A group of points is much more distinctive. After calibration, the tracker measures angular separations or other geometric relationships between observed star directions and looks for the same pattern in its catalog.

The observed pattern may appear translated or rotated on the sensor, but its internal angular geometry remains recognizable. Brightness can help filter candidates, yet geometry carries the strongest identity. NASA's Europa Clipper team describes using three or more recognized stars to determine the spacecraft's three-dimensional orientation.

Real algorithms use tolerances because centroid measurements, optics, and catalog data are not infinitely precise. A valid solution therefore needs enough agreement across several stars and normally includes checks that reject false matches before the attitude estimate is accepted by the flight system.

Once stars are identified, the processor has two descriptions of the same directions. The catalog supplies vectors in an inertial reference frame. The camera supplies measured vectors in the tracker frame. The attitude solution is the rotation that best aligns those two sets of vectors.

Flight software can represent that rotation as a direction-cosine matrix or, commonly, a quaternion. The exact mathematics may differ, but the engineering question is consistent: what rotation carries known inertial star directions into the directions measured by the camera?

Alignment calibration then relates the star-tracker frame to the spacecraft body frame. The result is a complete roll, pitch, and yaw orientation reference without depending on a local horizon. That makes stars useful around Earth, near another planet, or in deep space.

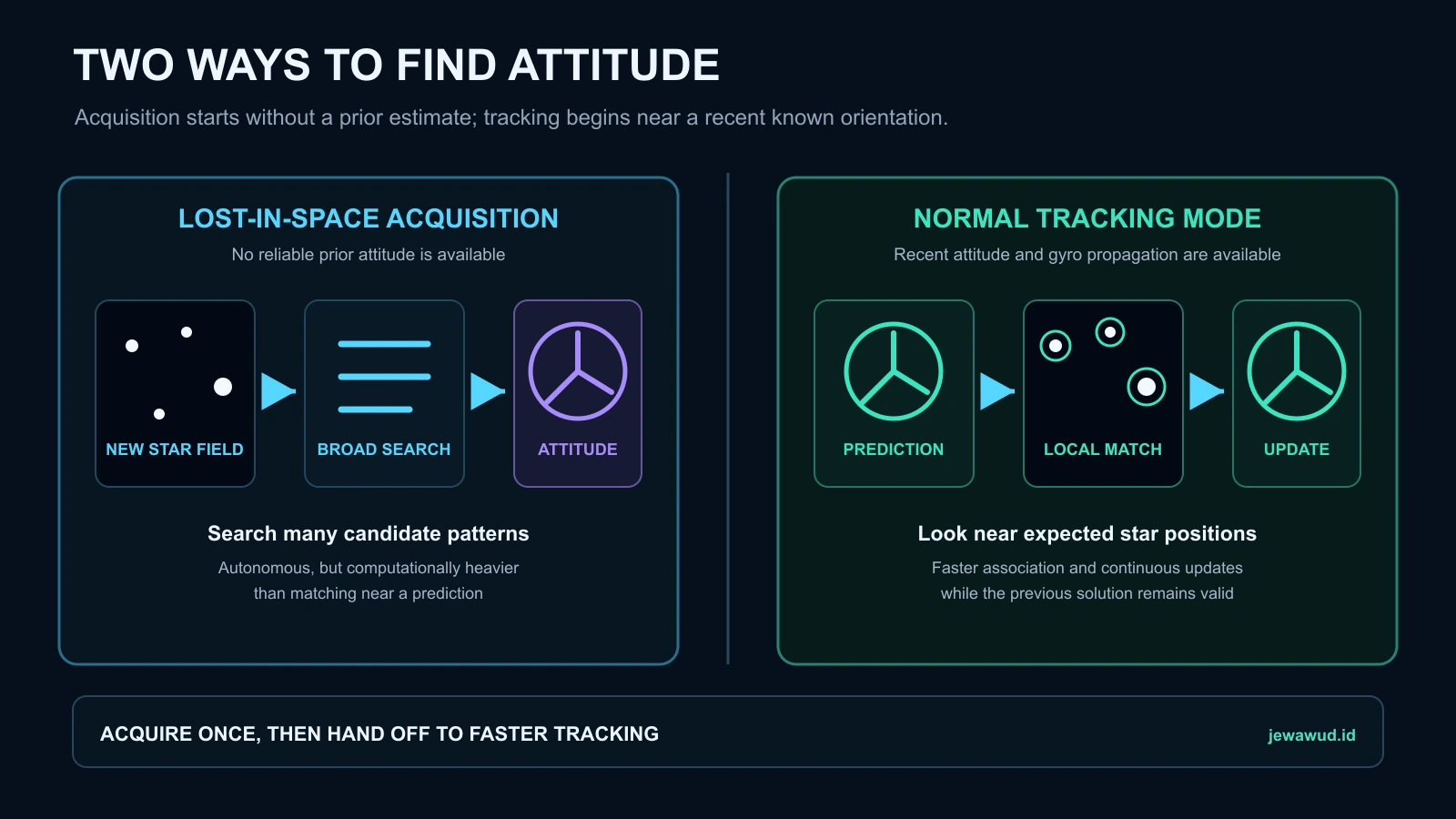

A spacecraft may start without a trustworthy attitude estimate after separation, a computer reset, or a safe-mode event. In lost-in-space mode, the tracker must identify the observed field without assuming where the camera is pointed. It searches a broad set of possible catalog patterns until one passes its consistency tests.

This capability is autonomous. It does not mean that the spacecraft is physically lost or that mission control has no orbit estimate. It means the attitude software temporarily lacks a reliable prior orientation and must recover one from the sky itself.

The broad search is computationally heavier than matching near an expected direction, so acquisition can take longer than a normal update. Once a valid attitude has been established, the system can transition to a narrower and faster tracking process.

During ordinary operation, the spacecraft already has a recent attitude estimate. Gyroscopes measure angular rate and propagate that estimate between star-tracker exposures. The tracker can then predict approximately where catalog stars should appear in the next image and search within smaller regions.

This local association is faster and reduces ambiguity. The star tracker periodically corrects long-term drift in the gyro-propagated attitude, while the gyros provide high-rate motion information when the optical sensor is between updates or temporarily unavailable.

Neither sensor replaces the other. A gyro is excellent at measuring change over short intervals but accumulates bias and integration error. A star tracker supplies an absolute reference but has exposure, processing, field-of-view, and bright-object constraints. Sensor fusion combines their strengths.

Stars are faint compared with the Sun, the illuminated Earth, or the Moon. If a bright body enters or approaches the field of view, scattered light can raise the image background and hide star signals. Missions therefore use baffles, carefully chosen mounting directions, keep-out constraints, and operational pointing rules. There is no single universal exclusion angle; it depends on the instrument and spacecraft design.

Spacecraft motion can smear star images during an exposure. Radiation can create bright spots or streaks that resemble detections. NASA reports that Europa Clipper's star-tracker processing must filter radiation-induced artifacts in Jupiter's intense environment. Hot pixels, optical distortion, and thermal focus changes also belong in the error budget.

Robust systems do not trust every bright pixel. Shape tests, catalog consistency, residual checks, gyro agreement, and repeated observations help distinguish a real star pattern from an artifact. When confidence falls, the attitude estimator can reject the measurement rather than steering from a bad solution.

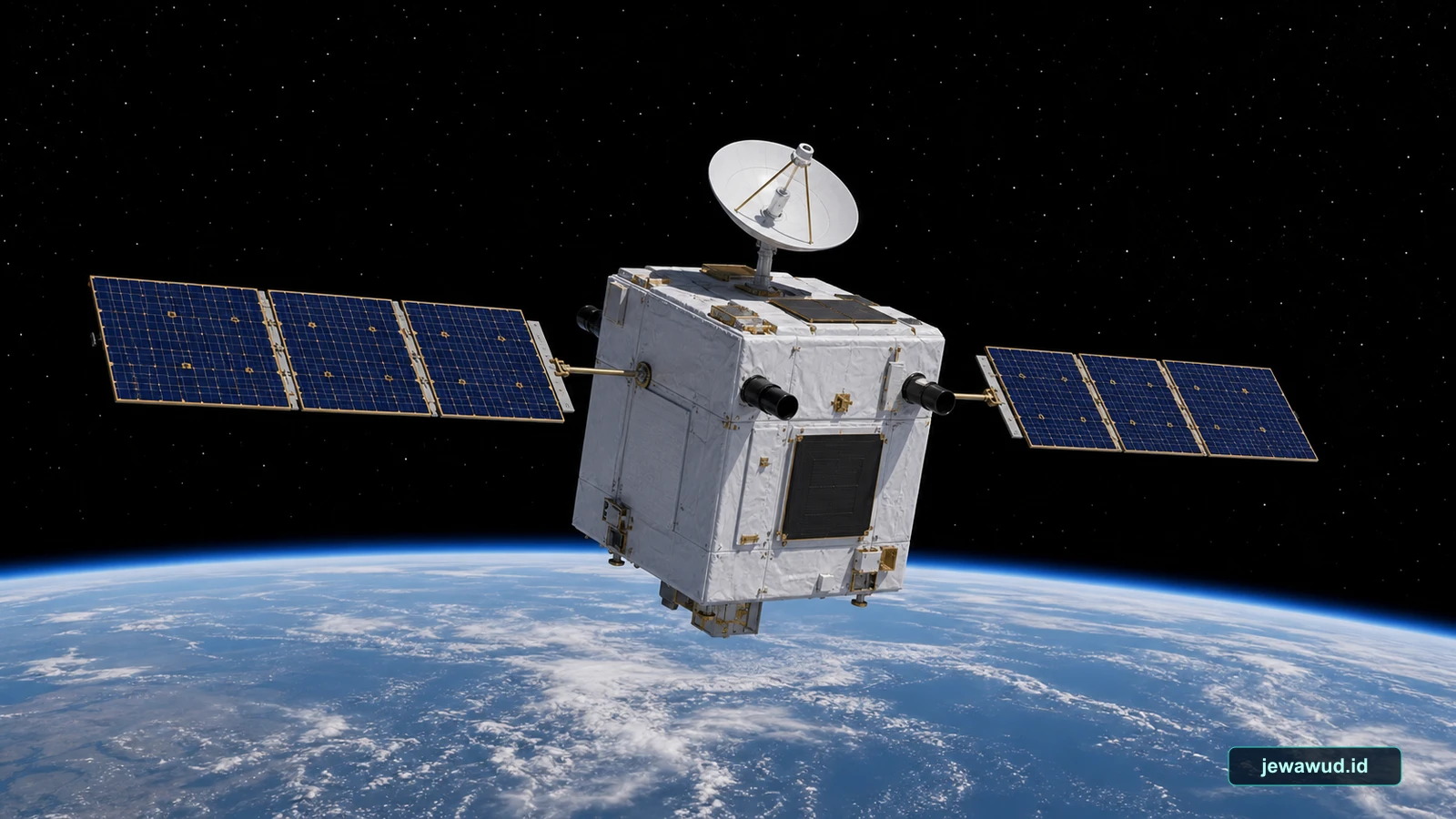

Many spacecraft carry more than one star tracker for redundancy or viewing coverage. A tracker may be unavailable because of bright-object geometry, a blocked field, a hardware fault, or a spacecraft orientation that places its baffle in an unfavorable direction. A second head mounted elsewhere can preserve attitude knowledge.

NASA's Clementine archive describes two star-tracker cameras mounted on opposite sides of the spacecraft, helping accommodate Sun, Moon, and Earth interference. Other missions may use two optical heads with shared electronics or completely independent units. Architecture depends on mission reliability, mass, power, and pointing requirements.

Multiple trackers do not automatically guarantee a solution. Their mounting must provide useful fields of view, their alignments must be calibrated, and software must decide which measurements are trustworthy. Redundancy is a system property, not simply a parts count.

Star trackers provide precise absolute attitude from known stellar directions. Gyroscopes measure angular rate and carry the attitude estimate between absolute observations. Sun sensors provide a robust direction to the Sun and are especially useful for coarse acquisition and safe modes. Each answers a different measurement question.

GNSS receivers primarily provide position, velocity, and time where navigation signals are usable. Some spacecraft use multiple GNSS antennas for attitude information, but that is a different measurement architecture from optical star matching. Saying that a star tracker is "space GPS" therefore creates the wrong mental model.

An operational ADCS often combines several sensors so no single limitation dominates. The estimator blends measurements, maintains uncertainty, rejects outliers, and sends attitude and rate estimates to the controller. The controller then commands actuators such as reaction wheels, magnetorquers, or thrusters.

A star tracker measures orientation; it does not physically rotate the spacecraft. The guidance system defines a target attitude, the estimator reports the current attitude, and the controller calculates the torque needed to reduce the error. Actuators execute that command.

For precise missions, timing and alignment are as important as image quality. The attitude estimate must be associated with the correct exposure time, gyro data must be synchronized, and structural flex between the tracker and payload can create a pointing offset. A tracker can be accurate in its own frame while the instrument line of sight is still misaligned.

The useful mental model is therefore a chain: stars establish an inertial reference, the tracker measures attitude, the estimator combines sensors, and the control system moves the vehicle. Every link must agree before a telescope, antenna, or camera can stay on target.
