Pointing without propellant
how reaction wheels steer spacecraft

A satellite has both a position and an attitude. Position describes where its center of mass is along an orbit. Attitude describes which way the spacecraft body is pointing: where its camera looks, where its antenna aims, and whether its solar array faces the Sun. The two ideas interact operationally, but they are not the same quantity.

A reaction wheel controls attitude. It can roll, pitch, or yaw the spacecraft without expelling propellant during the maneuver. It cannot raise perigee, lower apogee, or create the sustained external force needed to change orbital energy. Those tasks require propulsion or another external interaction. This is why a dot in Jewawud Orbital Tracker (JOT) can show a propagated position while saying nothing about which direction the real spacecraft is facing.

The distinction matters because the word turn can be ambiguous. A spacecraft can turn its body 90 degrees while continuing along nearly the same orbit. Conversely, a propulsion burn can reshape an orbit while attitude control keeps the nozzle precisely aligned with the commanded direction.

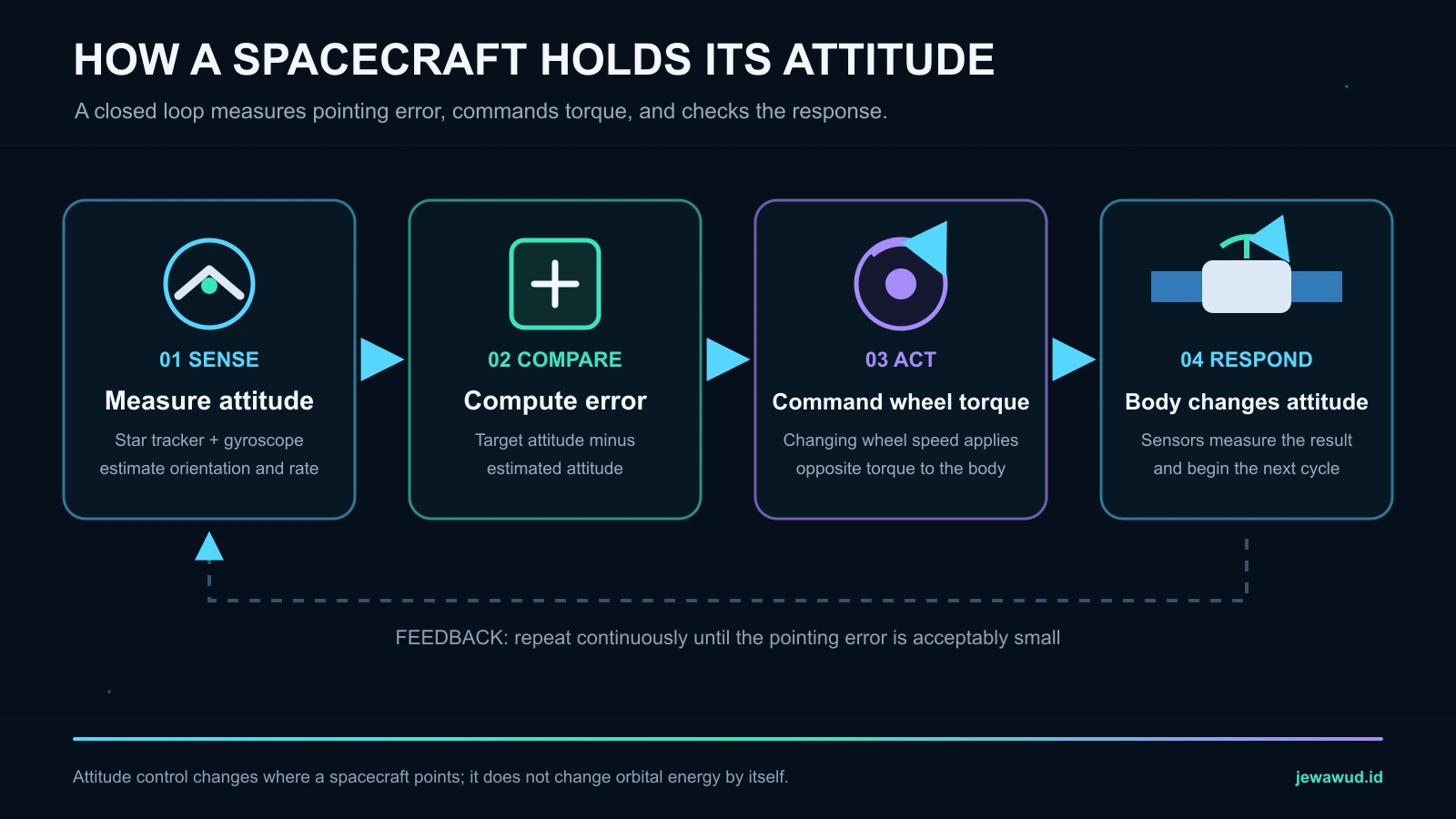

A reaction wheel does not decide where to point. It is one actuator inside an Attitude Determination and Control System, often shortened to ADCS or AOCS. Sensors first estimate orientation and angular rate. A flight computer compares that estimate with the commanded attitude, calculates a correction, and sends torque commands to the wheels.

After the spacecraft responds, sensors measure the new state and the loop repeats. Star trackers recognize star patterns for precise absolute orientation. Sun sensors and Earth sensors can provide coarse references or safe-mode information. Gyroscopes measure rotational rate between absolute updates. The exact sensor mix depends on mission accuracy, cost, orbit, and fault-tolerance requirements.

This separation between sensing, computing, and acting is fundamental. A noisy sensor can make a healthy wheel chase a false error. A saturated wheel can prevent a correct control command from being executed. Good pointing therefore depends on the full loop, not on one impressive component.

A reaction wheel is a flywheel driven by an electric motor and mounted to the spacecraft structure. Its useful quantity is angular momentum, commonly written as H = I omega, where I is the wheel's moment of inertia and omega is its spin rate. Changing wheel speed changes wheel angular momentum.

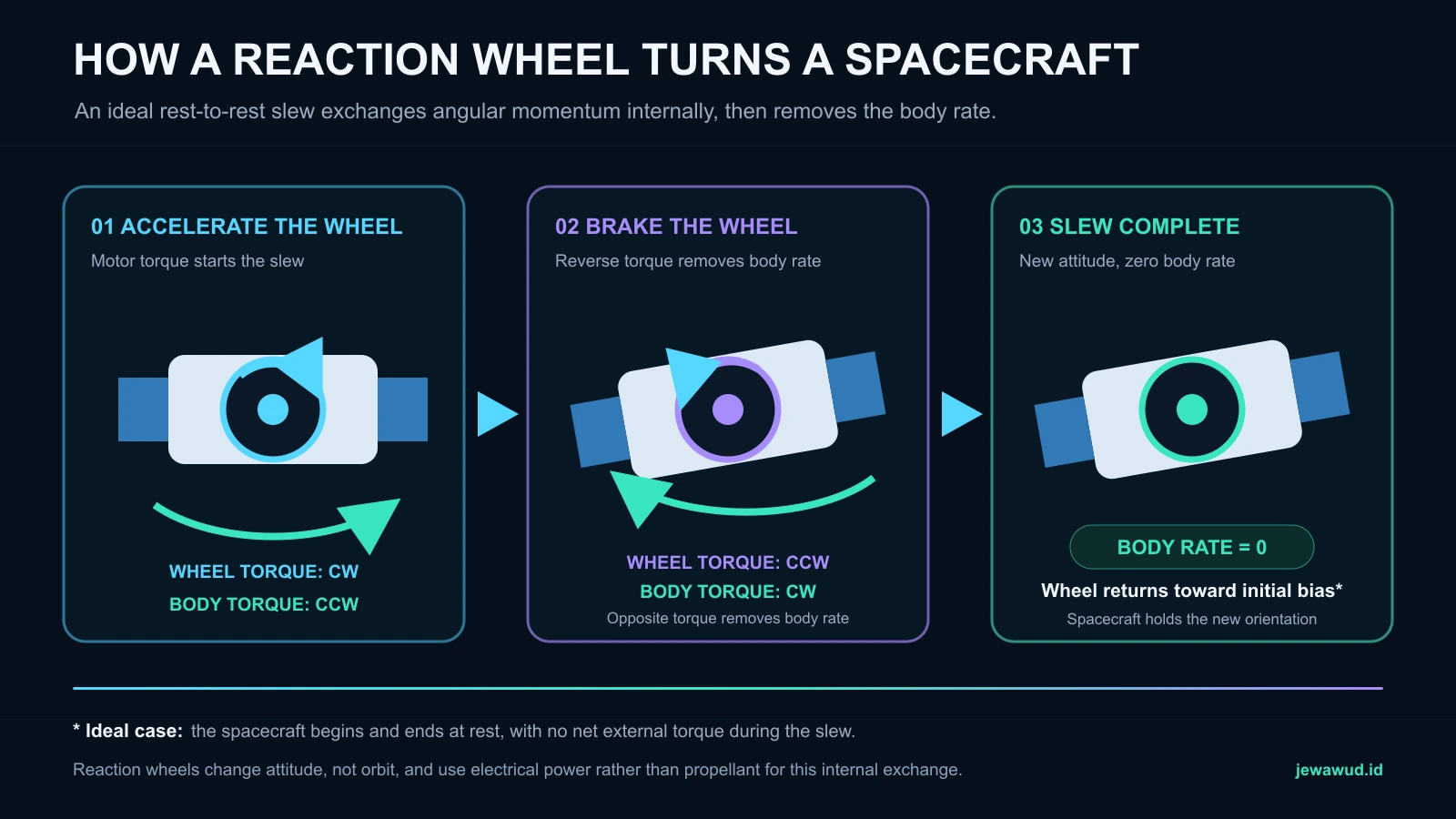

The motor torque acts on both sides of the mounting. If the motor accelerates the wheel clockwise, the wheel applies an equal and opposite torque to the spacecraft body, which begins rotating counterclockwise. This follows conservation of angular momentum and Newton's third law. No exhaust plume is needed because the wheel and spacecraft exchange momentum internally.

As the vehicle approaches the requested attitude, the controller reverses wheel torque to remove the spacecraft's body rate. In an ideal rest-to-rest slew, with no net external torque, a spacecraft that begins and ends at rest leaves the wheel near its initial bias speed. A constant wheel speed afterward stores angular momentum but produces no continuing body torque. Precise control comes from carefully shaped changes in wheel speed, not simply from keeping the wheel fast.

A rigid spacecraft can rotate about three body axes: roll, pitch, and yaw. Three wheels mounted along independent axes can command torque in three dimensions. The simplest mental model is one wheel aligned with each orthogonal axis, although real spacecraft often use a skewed or pyramidal arrangement.

Extra wheels provide more than a spare part. A four-wheel cluster can preserve three-axis control after one wheel fails if the remaining wheel axes still span three-dimensional space. Six-wheel systems can add redundancy, faster slews, or greater momentum capacity. Control software converts the desired body torque into a combination of individual wheel torques through a process called wheel allocation.

Wheel selection is a systems trade. Larger wheel inertia or higher allowable speed provides more momentum storage, but adds mass, power demand, structural load, heat, and mechanical complexity. A fast-slewing Earth-imaging satellite and a slowly repointed deep-space probe may therefore choose very different wheel assemblies.

The spinning hardware makes these names easy to confuse. A gyroscope is primarily a sensor: it measures how quickly the spacecraft rotates and, with suitable estimation, helps track attitude changes. A reaction wheel is an actuator: the flight computer changes its speed to apply a commanded torque to the body.

There is another related device called a control moment gyroscope or CMG. A CMG generally keeps a rotor spinning and changes the rotor's axis with a gimbal, producing large torque through gyroscopic precession. Reaction wheels normally keep their spin axis fixed and change rotor speed. CMGs are powerful but have different steering laws and singularity-management problems.

So the practical chain is simple: sensors report motion, software estimates attitude and chooses a correction, and actuators create torque. Calling every spinning device a gyroscope hides the most important question: is the component measuring rotation or deliberately causing it?

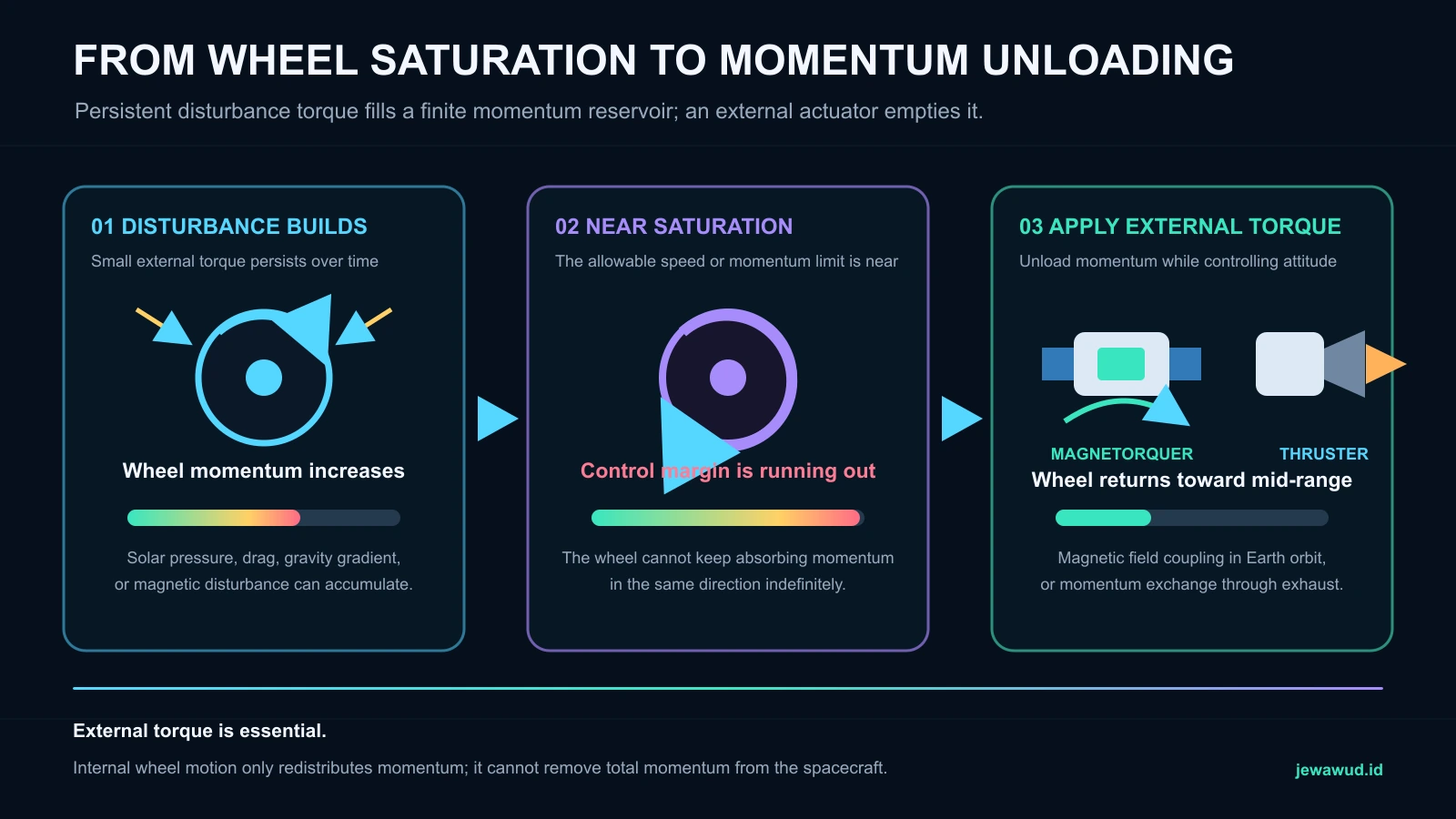

Space is not perfectly disturbance-free. Solar photons push on illuminated surfaces. A spacecraft in low Earth orbit feels residual atmospheric drag. Earth's uneven gravity field creates gravity-gradient torque when mass is distributed away from the center. Magnetic materials can interact with the local field. These effects may be tiny, but they can act repeatedly in a preferred direction.

To hold attitude, the controller commands an opposing wheel torque. Over time the wheel absorbs the disturbance momentum and its speed drifts toward a limit. Once it approaches the maximum permitted wheel speed or stored momentum, the wheel is saturated. It has little remaining margin to absorb more momentum in that direction, even though the motor itself may still be electrically healthy.

Saturation is not automatically a failure. It is an expected operational state that mission designers plan to avoid or recover from. Telemetry tracks wheel speed and momentum so the spacecraft can schedule an unload before control authority becomes too small.

A reaction wheel cannot unload itself by internal motion alone. Slowing the wheel would return its stored momentum to the spacecraft body and make the vehicle rotate. To reduce wheel speed while keeping attitude controlled, the spacecraft must apply an external torque. This operation is called momentum dumping, momentum unloading, or desaturation.

Many Earth-orbiting satellites use magnetorquers: current-carrying coils or torque rods create a magnetic dipole that interacts with Earth's magnetic field. The resulting external torque lets the control system spin the reaction wheels toward a healthier speed. Magnetic unloading saves propellant, but available torque depends on field direction and strength, so it must be scheduled and controlled over time.

Spacecraft can also use thrusters. During an unload, thrusters apply external torque while wheel commands prevent the spacecraft from drifting away from its target attitude. Thruster unloading consumes propellant and can disturb sensitive measurements. Deep-space vehicles cannot rely on a strong planetary magnetic field, so propulsion is often the practical choice.

NASA describes the Hubble Space Telescope as using four 45-kilogram reaction wheel assemblies for attitude control and four magnetic torque bars for momentum management. Hubble avoids routine thruster use for pointing because exhaust products could contaminate sensitive optical surfaces. Its wheels turn the school-bus-sized observatory slowly and precisely rather than producing a dramatic spin.

The James Webb Space Telescope uses six reaction wheels together with star trackers, gyroscopes, and its Fine Guidance Sensor. Changing one or more wheel speeds changes the total angular momentum of the observatory and lets Webb slew between targets. Its larger wheel set supports performance and redundancy within a very different thermal and pointing environment near Sun-Earth L2.

These missions demonstrate that reaction-wheel physics is universal while implementation is mission-specific. The number of wheels, sensor suite, unloading method, allowed pointing zones, jitter budget, and failure strategy all follow from what the spacecraft must observe and where it operates.

Reaction wheels contain bearings, motors, rotors, and control electronics. Rotor imbalance and bearing imperfections can introduce micro-vibration or jitter, which matters to telescopes and high-resolution imagers. Engineers isolate hardware, balance rotors, avoid troublesome speed ranges, and coordinate wheel commands with fine steering systems.

Wheels also wear. Bearings can degrade, lubrication can change, electronics can fail, and friction can rise. Redundant wheel layouts and alternate control modes allow some missions to continue after failures. A spacecraft may operate with reduced slew speed, restricted pointing, magnetic torque assistance, or more frequent thruster use.

Power and heat are part of the same design problem. Aggressive slews demand torque, motor current, and thermal capacity. Quiet science observations may prefer low, stable wheel speeds. Mission planning therefore schedules attitude maneuvers around power generation, thermal constraints, communications, and payload operations.

If a mission publishes wheel data, start with wheel speed and commanded torque. A steady speed means the wheel stores momentum but is not currently applying sustained torque. A changing speed indicates torque exchange. Several wheels changing together may represent a three-axis slew or a redistribution within a redundant cluster.

Next look for attitude error, body rate, control mode, and momentum-unload flags. A wheel near its speed limit is meaningful only with its allowable range and the direction of expected disturbance torque. A sudden speed change may be a planned unload, a safe-mode transition, or a response to an external event.

Do not infer orbit changes from wheel telemetry. JOT and the Jewawud Satellite Index work with identity and orbital data such as TLE-derived state. Spacecraft attitude normally requires a separate mission telemetry stream and is rarely encoded in public TLE records.

Remember three steps. First, sensors determine where the spacecraft points and how it rotates. Second, reaction wheels exchange angular momentum with the spacecraft body to correct attitude without continuous propellant use. Third, environmental torques slowly fill the wheels with stored momentum, so an external actuator must eventually unload them.

The cleverness is not that a wheel can spin a satellite. The cleverness is managing a finite momentum reservoir while meeting pointing accuracy, redundancy, vibration, power, thermal, and lifetime constraints. Reaction wheels are quiet and precise, but never isolated from the rest of the spacecraft.
