A whisper across interstellar space
How we communicate with Voyager

Voyager 1 and Voyager 2 were launched in 1977, yet mission controllers can still communicate with them far beyond the planets. This is not a continuous voice conversation. It is a carefully scheduled exchange of digital commands, engineering telemetry, and science measurements carried by extremely faint radio signals.

The distance changes everything. The radio beam spreads over an enormous area. Earth and the spacecraft move while the signal is in flight. The pointing angle is narrow, the data rate is tiny by modern standards, and there is no instant confirmation that a command worked. A successful contact joins four systems: mission operations at JPL, NASA's Deep Space Network, Voyager's telecommunications hardware, and the spacecraft attitude-control system that keeps its dish facing Earth.

The ordinary word communicate therefore hides a chain of engineering decisions. Operators must prepare a valid command, select an antenna that can see the spacecraft, predict the correct frequency and Doppler shift, transmit at the right time, wait almost a day, then listen for a coded reply that has crossed interstellar space.

A Voyager command begins as an approved digital sequence at mission control. It may tell the spacecraft to change an operating mode, move an instrument, adjust attitude, switch a subsystem, or return stored data. The sequence is validated before it enters the ground network because a mistake cannot be corrected quickly.

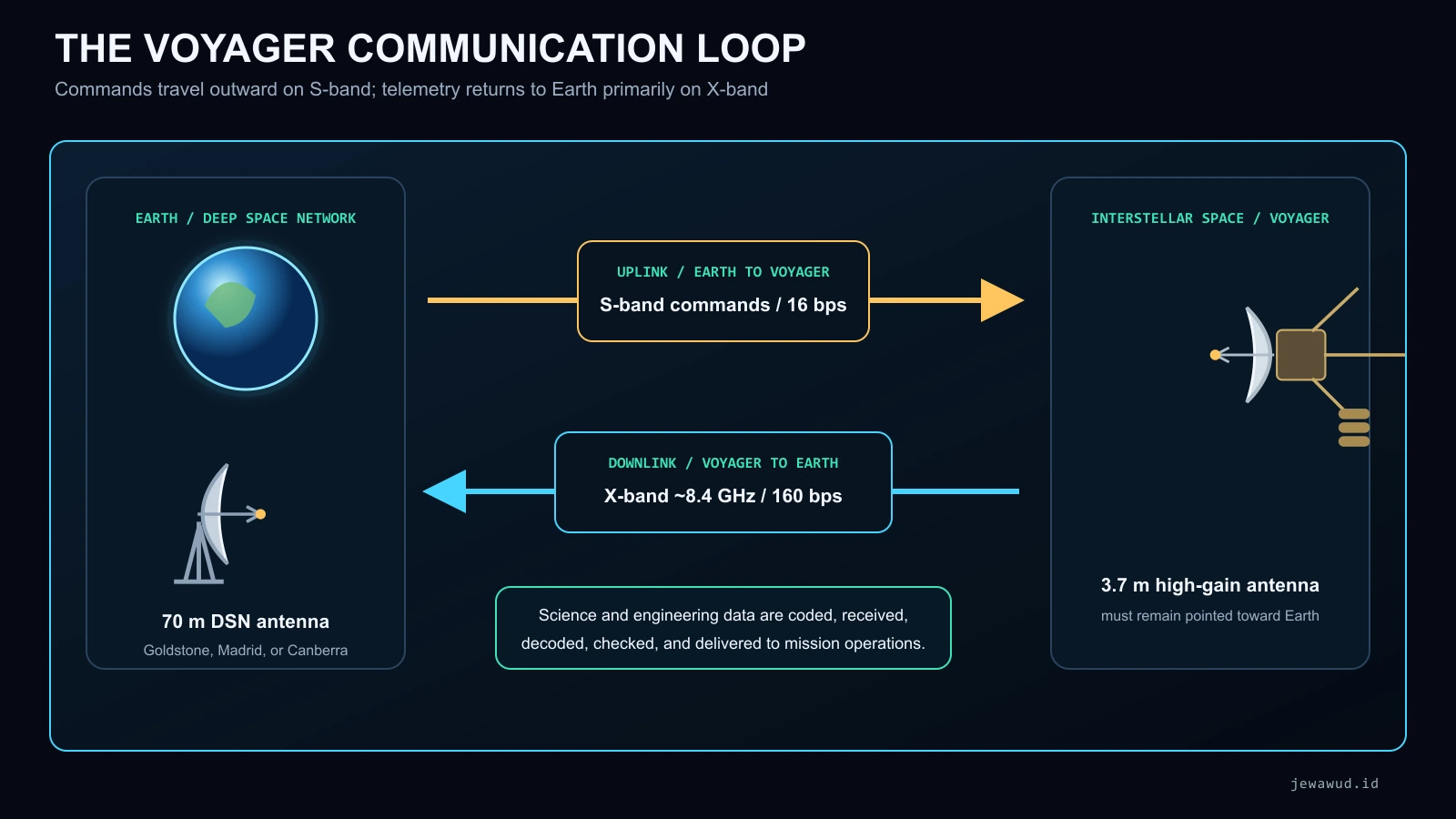

The command is routed to a Deep Space Network station and modulated onto an S-band uplink. NASA lists Voyager's command rate as only 16 bits per second. That is intentionally slow. Lower data rates allow each bit to carry more energy and make the distant receiver more likely to distinguish the command from noise.

For Voyager support, a 70-meter station can use a powerful S-band transmitter. The radio energy is concentrated by the enormous dish into a narrow direction in the sky. The spacecraft's receiver locks onto the carrier, demodulates the command stream, checks its structure, and passes valid instructions to the Command Computer Subsystem. A light-hour is a measure of distance, not processing time: most of the wait occurs while the radio wave travels at the speed of light.

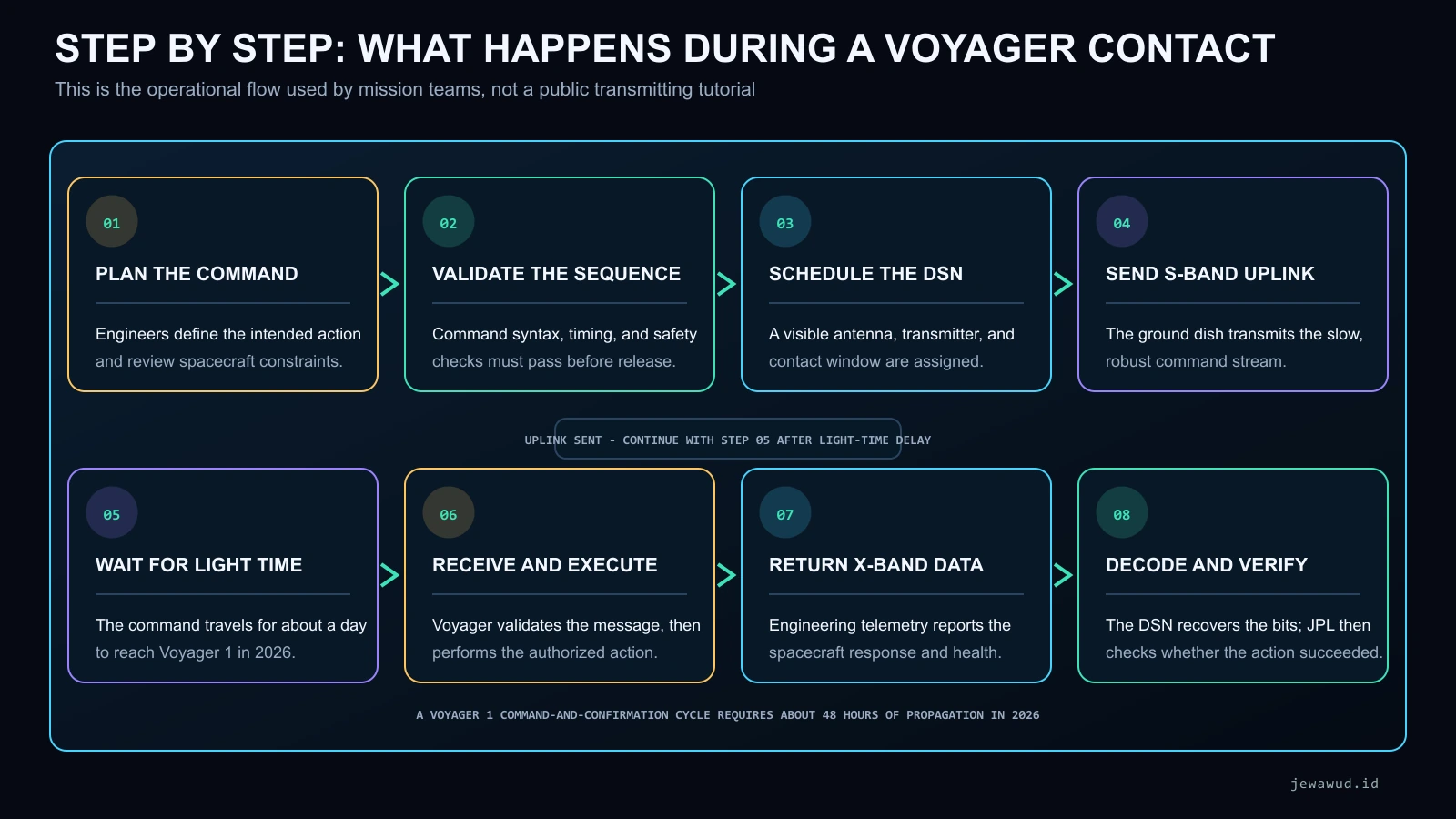

1. Plan the command. Engineers define exactly what the spacecraft should do, when it should happen, and which subsystem states or power limits constrain the action.

2. Validate the sequence. The command syntax, timing, expected spacecraft mode, contingency behavior, and operational safety are reviewed before anything is released for transmission.

3. Schedule the Deep Space Network. Mission planners reserve an antenna that can see Voyager during the required interval. The station receives pointing predictions, frequency information, and the authorized command data.

4. Send the S-band uplink. The DSN antenna points toward Voyager and transmits the slow command stream. This is a licensed, controlled operation using mission-specific equipment, not something the public should attempt to reproduce.

5. Wait for light time. The radio wave then travels through space. For Voyager 1 in 2026, this leg alone takes roughly 24 hours.

6. Receive, validate, and execute. Voyager's radio and command computer recover the message, reject invalid data, and perform the authorized action according to onboard logic.

7. Return X-band telemetry. Engineering data report the spacecraft state and provide evidence about whether the command produced the intended result.

8. Decode and verify on Earth. The DSN receives and decodes the faint downlink. JPL's mission team analyzes the telemetry, confirms the outcome, and only then plans the next action.

This is a step-by-step explanation of the operational process. It deliberately does not provide a transmitting frequency recipe, command format, authentication details, or instructions for contacting the spacecraft independently.

Voyager returns engineering and science data primarily through an X-band downlink near 8.4 gigahertz. Engineering telemetry describes temperatures, electrical power, computer state, pointing, faults, and instrument status. Science packets carry measurements from the instruments that remain active as the spacecraft samples interstellar space.

The currently quoted routine telemetry rate is about 160 bits per second. A higher 1.4-kilobit-per-second mode can be associated with playback of higher-rate plasma-wave data, but it requires a stronger link. These figures are extraordinarily small beside broadband internet, yet the mission values reliability above speed. At 160 bits per second, even a modest image would take an impractical amount of time; today's Voyager mission returns compact numerical measurements and spacecraft health data.

Voyager also has an S-band downlink capability, but X-band became the primary science return because its telecommunications performance is better through the high-gain antenna. Redundant radio sections and selectable power modes gave the original mission operational flexibility that remains valuable decades later.

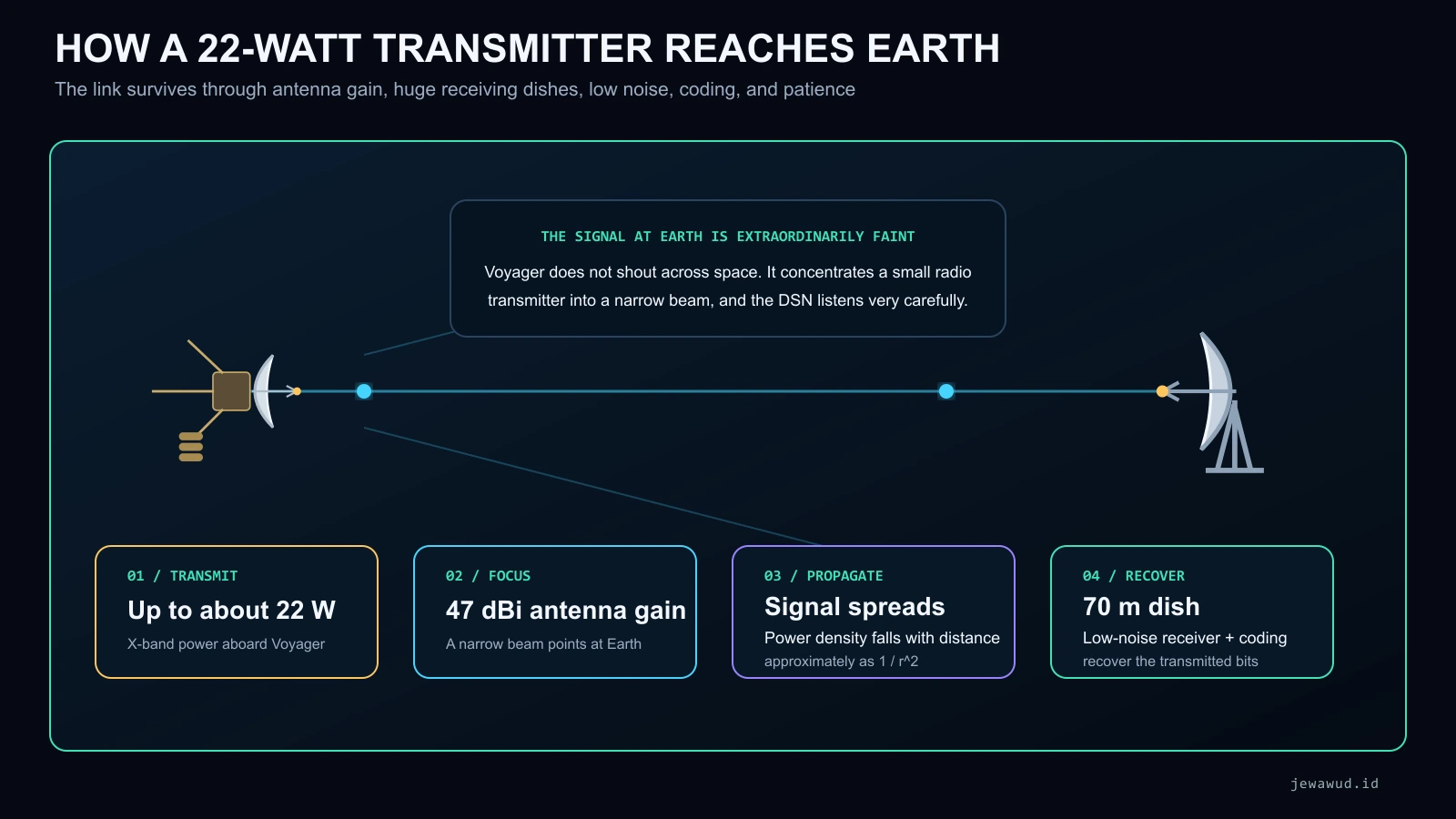

Voyager's X-band radio can select approximately 12 or 22 watts of output power. Twenty-two watts is not much for a signal that must cross tens of billions of kilometers. The spacecraft does not overcome distance by broadcasting equally in every direction. Its 3.66-meter, usually rounded to 3.7-meter, parabolic high-gain antenna concentrates the energy into a narrow beam aimed at Earth.

At X-band the antenna provides about 47 dBi of gain relative to an ideal isotropic radiator. Gain does not create energy; it redirects more of the available power into the desired direction. The same narrow pattern makes pointing critical. If attitude control lets the dish drift too far from Earth, received signal strength falls and the link may disappear.

Even with that gain, the wave continues to spread. Power density follows an inverse-square relationship with distance in free space: double the range and the same transmitted energy is spread over roughly four times the area. By the time Voyager's signal reaches Earth, it is far below what an ordinary radio system can use.

The Deep Space Network completes the link with very large apertures, cryogenically cooled low-noise amplifiers, highly stable frequency references, narrow receiver bandwidths, accurate Doppler prediction, and error-correcting codes. Engineers may also combine, or array, multiple antennas so their received signals act like a larger collecting system. The result is less like hearing a shout and more like recovering a precisely timed whisper from a noisy room.

NASA's Deep Space Network has three complexes spaced around Earth: Goldstone in California, Madrid in Spain, and Canberra in Australia. Their separation allows another site to take over as Earth rotates and a spacecraft moves below one station's horizon. The network supports many missions, so Voyager contacts must also share antenna time with newer spacecraft.

The largest antennas are 70 meters across. They can transmit commands, receive telemetry, measure range, and track Doppler shift. Smaller 34-meter antennas can receive Voyager's low-rate cruise data, and several antennas can sometimes be combined for more sensitivity.

Geometry makes Voyager 2 a special case. Its post-Neptune trajectory lies south of the plane of the planets, so the Canberra complex is the only DSN site with both the southern view and the appropriate powerful S-band system needed to command it. Voyager 1 follows a northern trajectory and can be supported from the Northern Hemisphere sites. This is a useful reminder that a global network is not merely redundant hardware; the direction of the spacecraft in the sky determines which antennas can establish a link.

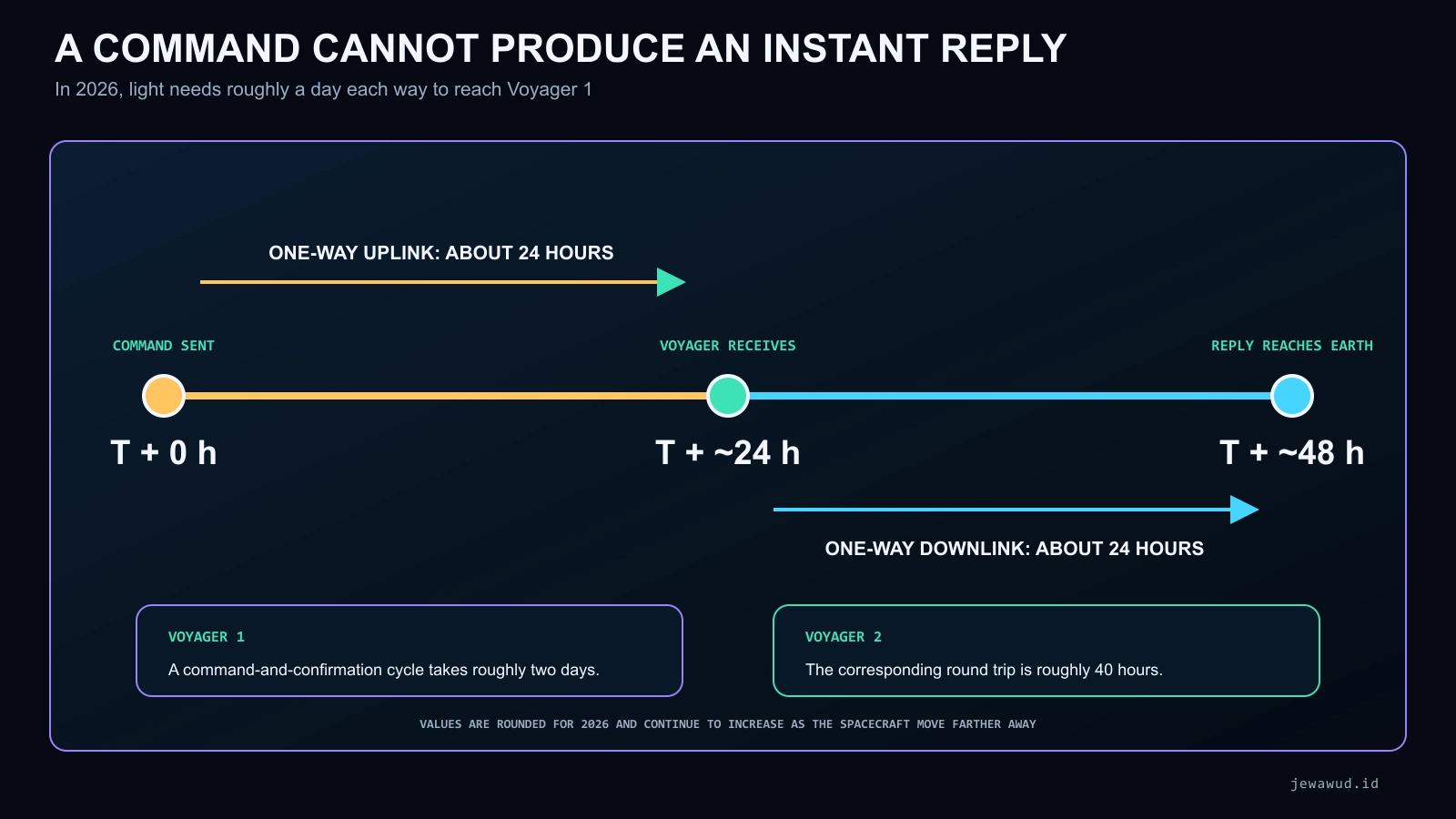

Radio waves travel at the speed of light, but that is not instantaneous across interstellar distances. In August 2026, NASA's live mission data place Voyager 1 at roughly 24 light-hours from Earth and Voyager 2 at roughly 20 light-hours. These values vary continuously as Earth orbits the Sun and the spacecraft move outward.

If controllers transmit a command to Voyager 1, they wait about a day for it to arrive. If the spacecraft immediately sends confirmation, that response needs about another day to return. The minimum command-and-confirmation cycle is therefore close to 48 hours, before allowing for scheduling, execution time, analysis, or a later contact window.

This delay changes mission operations. Controllers cannot steer Voyager with real-time joystick inputs. Command sequences must be planned in advance, and the spacecraft must detect and manage some faults autonomously. When engineers diagnose a problem, a single test can consume days: formulate the command, validate it, uplink it, wait, receive telemetry, then decide what to try next.

The high-gain antenna is fixed to Voyager's body, so the spacecraft itself must maintain the correct orientation. Its Attitude and Articulation Control Subsystem uses sensors, gyroscopes, and small thrusters to keep the antenna's centerline directed toward Earth. This is why a propulsion or attitude anomaly can become a communications emergency even when the radio remains healthy.

At X-band the beam is narrow: historical Voyager documentation gives a half-power half-width of about 0.32 degrees. Earth is not visually large from Voyager, and the pointing solution must account for where Earth will be when the signal arrives, not simply where it appeared when the calculation began.

The Voyager 3D Explorer makes this architecture easier to understand. Rotate the model and identify the large dish, central bus, RTG boom, magnetometer boom, and science platform. The dish is the visual center because communication is one of the spacecraft's fundamental survival functions.

A DSN antenna does not simply record a sequence of obvious ones and zeros. It collects a weak microwave carrier buried in natural and electronic noise. The receiver amplifies a narrow frequency region, tracks the carrier, compensates for predicted motion, demodulates symbols, synchronizes frames, and applies error correction.

The recovered packets then travel through terrestrial networks to mission operations. Software checks sequence counters and error flags, separates engineering telemetry from science records, and converts raw numbers into physical units. A voltage reading becomes evidence about a power bus; a count from a plasma instrument becomes a measurement of the environment beyond the heliosphere.

The uplink follows the reverse organizational path but is not merely reversed radio hardware. Commands are deliberately small, reviewed, encoded, and authenticated. Science downlinks maximize useful information inside the available link margin. Different goals produce different data formats and operational safeguards even though both directions share Voyager's dish.

An ordinary satellite dish, amateur radio, or consumer receiver cannot conduct a Voyager telemetry session. The challenge is not only dish size. A receiving system needs accurate ephemerides, precise pointing, a very low-noise signal chain, frequency and Doppler knowledge, appropriate recording bandwidth, and specialized modulation and coding support.

Transmitting is an even more restricted operation. Spacecraft command frequencies are regulated, Voyager expects a particular signal structure, and unauthorized transmission would be unlawful and potentially hazardous. The correct way to experience the link is through public mission status data, DSN activity displays, archived engineering documentation, and educational models rather than attempting to send a signal.

Advanced radio-astronomy facilities have occasionally detected deep-space spacecraft carriers, but detecting a carrier is different from establishing a complete command-and-telemetry link. NASA's Deep Space Network is an integrated navigation and communications system, not just a large metal dish.

Voyager's antenna diameter, command rate, current telemetry rates, radio bands, and spacecraft subsystems were checked against NASA's official Voyager instruments and spacecraft systems page. Current distance and one-way light-time values should always be read from NASA's live Where Are Voyager 1 and 2 Now? page because they change continuously.

The global station layout and role of the 70-meter antennas were checked against NASA's Deep Space Network overview. Detailed S-band uplink, X-band downlink, transmitter power, antenna gain, beam width, and station support information comes from JPL's Voyager Telecommunications engineering chapter and NASA's telecommunications fundamentals.

Does Voyager send pictures today? No. Its imaging systems were turned off after the planetary encounters. Current transmissions contain engineering telemetry and measurements from the remaining science instruments.

Why not increase the data rate? A faster stream gives each bit less energy and requires a stronger signal-to-noise ratio. The enormous distance and declining spacecraft power favor slow, robust transmission.

Is the visible line in the illustrations real? The radio wave is real, but the glowing line is a teaching convention. X-band is invisible to human eyes and spreads as an antenna beam rather than a pencil-thin ray.

What happens if Voyager stops pointing at Earth? Link strength can fall below the receiver threshold. Controllers may attempt recovery commands, while onboard fault-protection routines can try to restore a safe Earth-pointing orientation.
