Heat into watts
How RTGs keep Voyager alive

Solar cells are excellent near Earth, but sunlight follows an inverse-square relationship with distance from the Sun. At Jupiter, sunlight is only about one twenty-seventh as intense as it is near Earth. At Saturn it is roughly one ninetieth. Voyager then continued outward into interstellar space, where practical solar arrays for a 1970s spacecraft would have been enormous and increasingly ineffective.

The mission therefore needed power that did not depend on sunlight, planetary shadow, or spacecraft orientation. NASA selected three Multi-Hundred-Watt radioisotope thermoelectric generators, or MHW-RTGs, for each Voyager. They supplied about 470 to 475 watts of electrical power shortly after launch in 1977. That was not a large household power budget, but it was enough for a carefully designed robotic observatory.

An RTG is not a battery that stores a fixed charge and it is not a small fission reactor. It is a solid-state generator that continuously converts some of the heat from natural radioactive decay into direct-current electricity. As long as the fuel remains warm and the thermoelectric path remains functional, the device can produce power without moving parts.

The fuel is plutonium-238 dioxide, a ceramic form selected for radioisotope power systems. Each plutonium-238 nucleus is unstable and can decay by emitting an alpha particle. The particle's energy is absorbed within the fuel and surrounding material, becoming heat. This happens spontaneously; no command starts it and no control rods regulate it.

Plutonium-238 has a half-life of about 87.7 years. After one half-life, half of the original nuclei remain undecayed, so thermal output declines gradually rather than stopping suddenly. Its combination of useful heat production, long half-life, and relatively manageable radiation characteristics makes it suitable for long-duration space power.

The word nuclear can invite the wrong mental picture. A reactor maintains a controllable fission chain reaction. Voyager's RTGs do not. The fuel simply decays according to nuclear physics. The generator cannot be throttled up when more electricity is needed, and switching off an instrument does not slow the decay. Operations can only decide how to distribute the electrical power that is available.

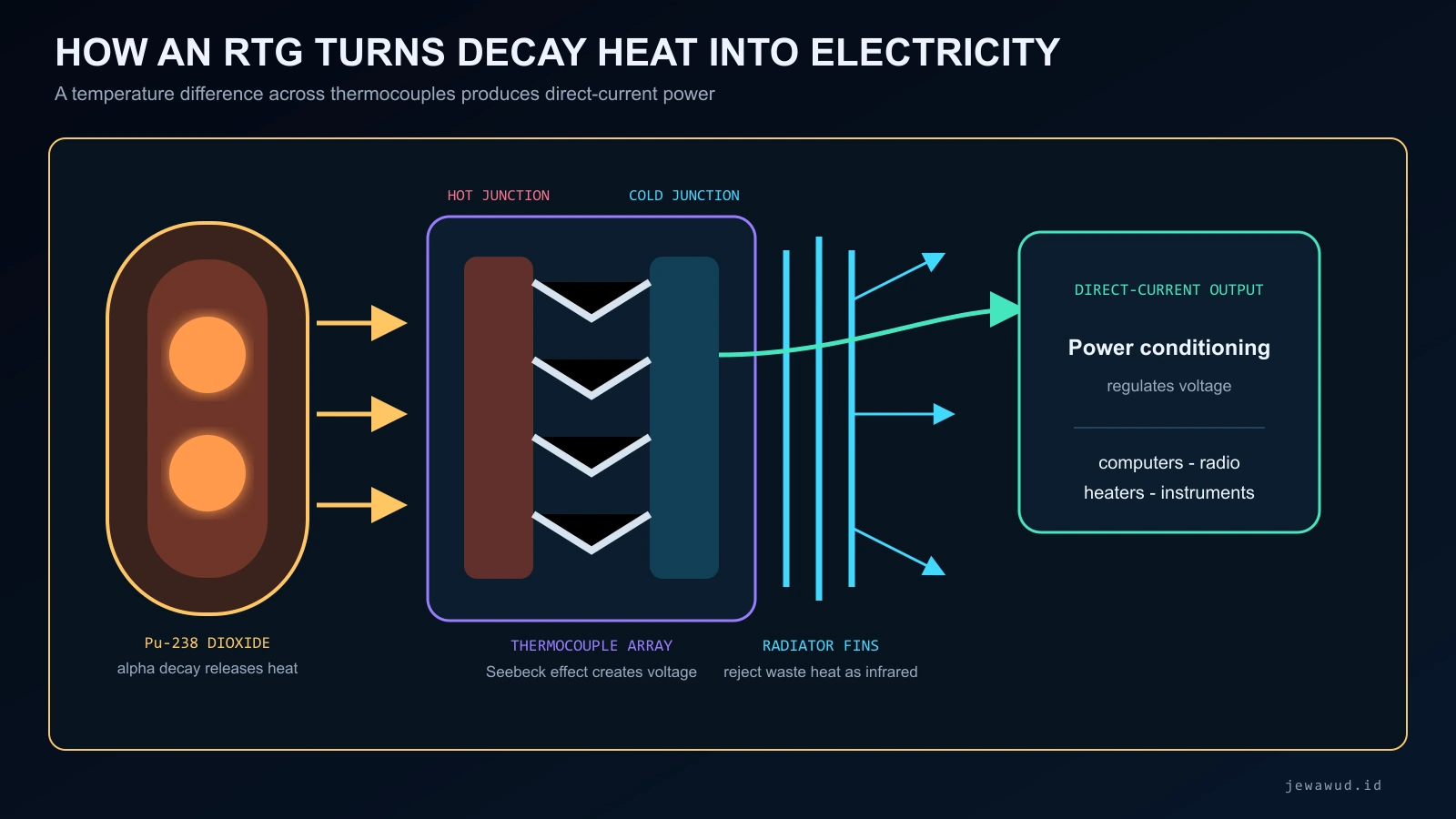

Heat alone is not yet useful electrical power. The hot fuel is surrounded by thermoelectric elements whose inner ends remain hot while their outer ends are cooled by radiation to space. That temperature difference drives the Seebeck effect: charge carriers in dissimilar semiconductor materials move in a way that creates a voltage.

Many thermocouples are connected to provide practical voltage and current. Large external fins increase radiating area and help maintain the cold side. Most of the decay energy still leaves as waste heat. The original Voyager documentation describes about 2,400 watts of thermal power in each heat source and a maximum electrical output near 160 watts per RTG, so conversion efficiency was only several percent.

Low efficiency is acceptable here because longevity and reliability matter more than recovering every joule. There are no bearings, pumps, pistons, or working fluids to service. The electrical output passes through spacecraft power-conditioning and distribution equipment before reaching computers, radios, heaters, instruments, and attitude-control hardware.

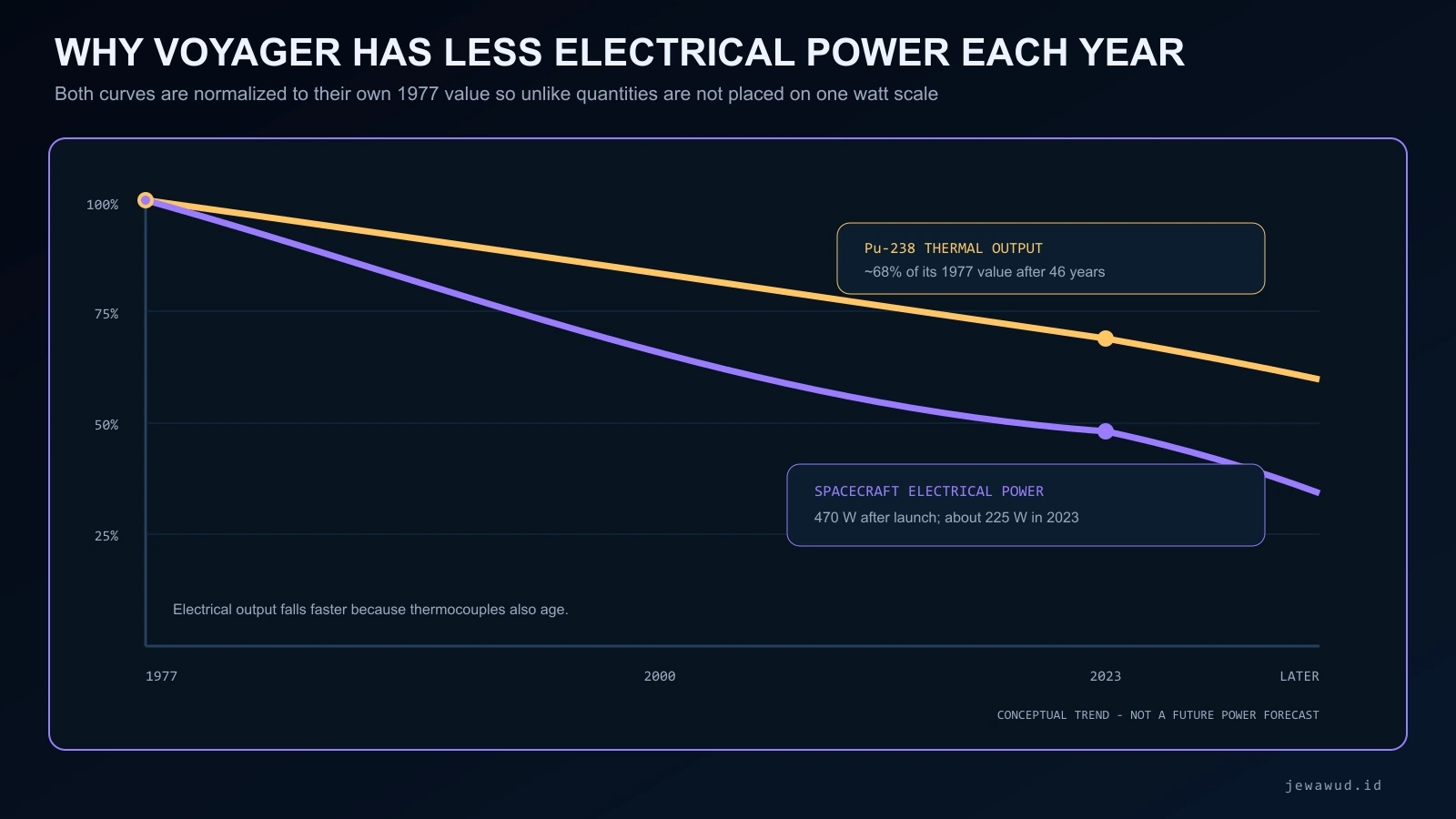

Radioactive decay guarantees a gradual loss of thermal power. If conversion efficiency remained unchanged, electricity would decline along a similarly gentle curve. In reality, decades of high temperature and radiation also change the thermoelectric materials. Their ability to turn a given temperature difference into electricity degrades with age.

The result is two losses acting together: less heat from the fuel and less efficient conversion of that heat. NASA currently describes Voyager's available electrical power as falling by roughly four watts per year. That number is a present operational rate, not a promise of a perfectly straight line extending indefinitely.

The spacecraft does not fail when it crosses one universal wattage threshold. Every load has its own power demand, thermal consequences, wiring path, and importance. A scientific instrument may be turned off while essential command, fault-protection, radio, and attitude functions remain powered. The mission lifetime is therefore governed by both hardware health and increasingly careful allocation.

During the planetary encounters, Voyager operated cameras, spectrometers, particle instruments, tape recorders, heaters, computers, radios, and articulated hardware. The interstellar mission needs a smaller subset. As the budget shrank, engineers progressively turned off systems that had completed their work or could no longer justify their electrical and thermal cost.

This is not as simple as sorting devices by wattage. Electrical power becomes heat after use, and that heat can keep neighboring hardware within operating temperature. Turning off a heater saves electricity but may cool a fuel line, thruster branch, or instrument below its qualified range. Turning off one instrument may alter current on a shared power bus. Every change therefore requires engineering analysis and telemetry review.

The mission's central trade is survival versus science return. Computers must keep executing commands. The attitude system must point the high-gain antenna toward Earth. The radio must remain capable of sending telemetry across interstellar distances. Within that protected core, the team preserves scientific measurements for as long as power and temperature permit.

The fins make the RTGs look like radiators because that is exactly what they are. Thermoelectric conversion requires heat to flow from a hot side to a cold side. Space is not cold in the ordinary convective sense; there is almost no air to carry heat away. The generator must emit infrared radiation to lose energy.

Mounting the RTGs on a boom reduces unwanted heating and radiation near sensitive instruments. It also makes their geometry clear in the Voyager 3D Explorer: the generators sit opposite other long booms and away from the central bus. Their location is part of the spacecraft's thermal, structural, and scientific design rather than an aesthetic choice.

Some RTG heat still influences the spacecraft. Meanwhile, ordinary electronics and radio equipment warm their compartments whenever they consume electricity. As loads are removed, Voyager can lose both electrical demand and internal heat. Late-life operations must manage these linked budgets together.

An RTG supplies electrical power; it does not create thrust. Voyager's trajectory is governed mainly by gravity and its existing velocity. Small hydrazine thrusters adjust attitude and occasionally refine pointing. The RTGs power valves, computers, sensors, and communications that make those operations possible, but the decay heat is not expelled as a rocket jet.

RTGs also do not tell Voyager where it is. Navigation teams estimate the trajectory using radio range, Doppler, and angular measurements from the Deep Space Network. The spacecraft can orient itself using onboard sensors, but its complete interplanetary state is reconstructed on Earth. Read Finding Voyager Without GPS for that separate chain of measurements.

Power, navigation, attitude, and communication are nevertheless tightly coupled. Without electrical power, the receiver cannot hear commands, computers cannot execute them, and the antenna cannot stay pointed. Without correct pointing, power may remain available while the communication link is lost. Long-lived exploration depends on the whole system.

The most valuable watt is not always the watt sent to a science instrument. A heater may prevent a line from freezing. A gyroscope may help recover attitude. A computer may execute fault protection. A transmitter watt, combined with the high-gain antenna and a 70-meter DSN dish, may carry irreplaceable measurements to Earth.

This explains why Voyager can remain scientifically meaningful with far less power than it had at launch. The mission no longer attempts the same job. Cameras are unnecessary in dark interstellar space, while field and particle measurements remain useful. The power system has not stayed constant; the mission has adapted around it.

Eventually the available margin will be too small for additional science operations, and later for normal engineering functions. The transition will likely be gradual, shaped by subsystem behavior and recovery attempts rather than a dramatic moment when plutonium suddenly goes dark.

Voyager's current electrical decline and the mission's progressive power-management strategy were checked against NASA's official Voyager science and interstellar mission overview.

The three-RTG configuration, plutonium-238 heat source, approximately 2,400 watts of thermal power per source, maximum electrical output near 160 watts per generator, and early mission total near 475 watts were checked against NASA/JPL's Voyager mission description and backgrounder. The technical figures describe the original system; present output is lower after nearly five decades of decay and material aging.

Can an RTG explode like a nuclear bomb? No. Its fuel quantity, geometry, and physics cannot produce a nuclear weapon detonation.

Does Voyager recharge its RTGs? No. Radioactive decay continuously supplies heat; there is no recharge cycle and no way to replace the fuel in flight.

Why use three units? The tandem units provided the total power required by the spacecraft while fitting the established MHW-RTG design and boom architecture.

Are the RTGs still hot? Yes. Plutonium-238 continues to decay and produce substantial heat, although both thermal and electrical output are lower than at launch.
