How Rocket Nozzles
Turn Pressure Into Speed

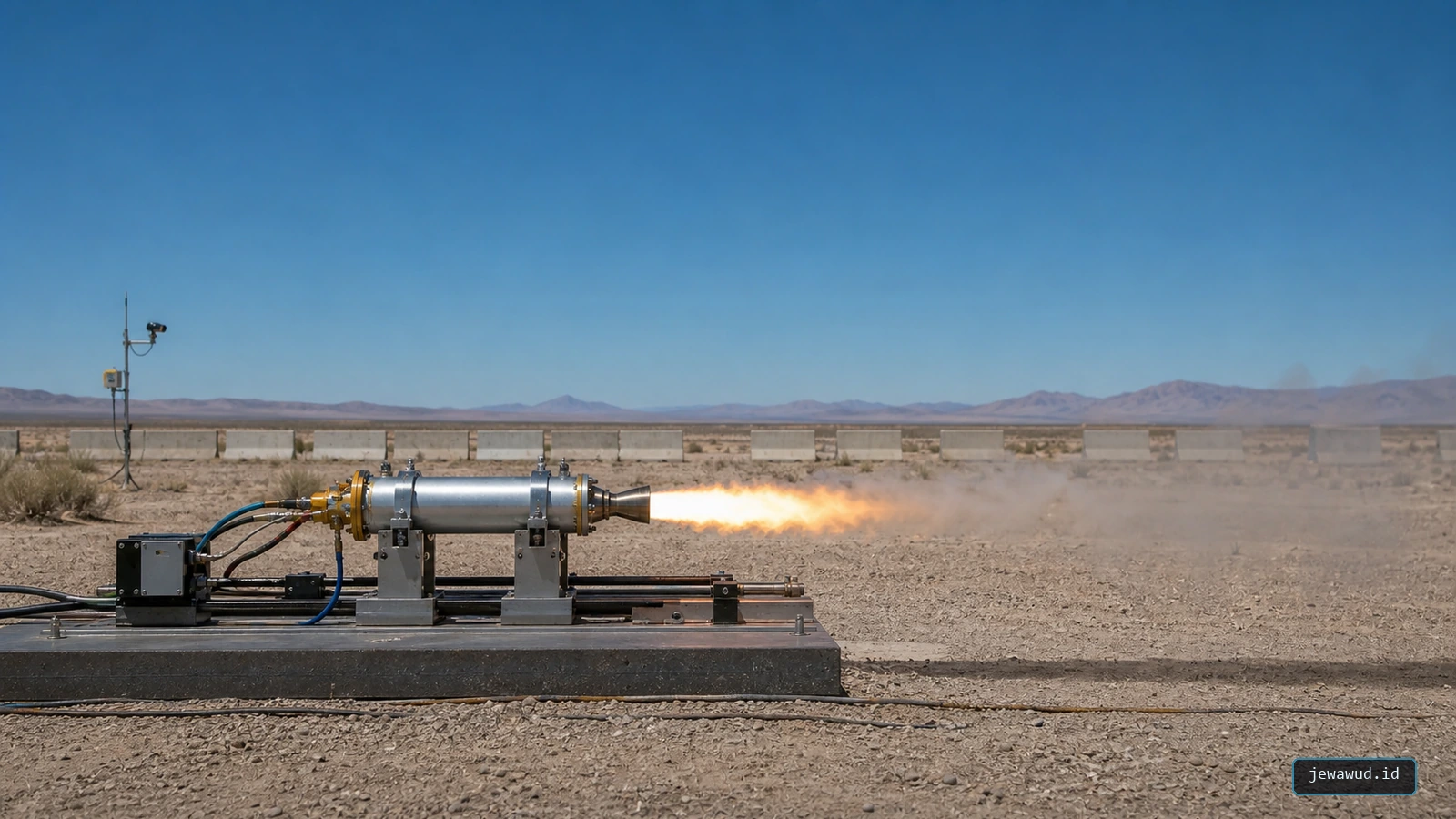

A rocket combustion chamber or solid motor produces hot gas at high pressure and temperature. High chamber pressure alone does not create useful vehicle acceleration. The gas must leave in a controlled direction and at high velocity. The nozzle is the passage that performs that conversion: it turns part of the gas's thermal and pressure energy into directed kinetic energy.

This job is more subtle than making a hole at the end of a chamber. A rocket normally uses a converging-diverging nozzle, also called a de Laval nozzle. The passage narrows toward a minimum area called the throat, then opens into a divergent section. Once the pressure ratio is sufficient, flow reaches the speed of sound at the throat. Downstream, the supersonic gas accelerates as the area increases while static pressure and temperature fall.

The same broad relationships apply to liquid engines, hybrid motors, and solid rocket motors. Their chambers create gas in different ways, but the nozzle still connects chamber conditions, mass flow, exit velocity, exit pressure, ambient pressure, and thrust.

The chamber is a reservoir of high-pressure gas. The converging section guides that gas toward the throat without asking it to turn abruptly. The throat is the smallest flow area, usually written as At. The divergent section expands from the throat toward the exit area Ae. The ratio Ae/At is the nozzle area ratio or expansion ratio.

Each region has a different role. Upstream subsonic flow accelerates as the passage converges. At the choked throat, the local Mach number is one. Downstream supersonic flow accelerates as the passage diverges. That last statement feels backward if one only knows incompressible plumbing, where a wider pipe often suggests slower flow. Compressible supersonic flow follows a different area-velocity relationship.

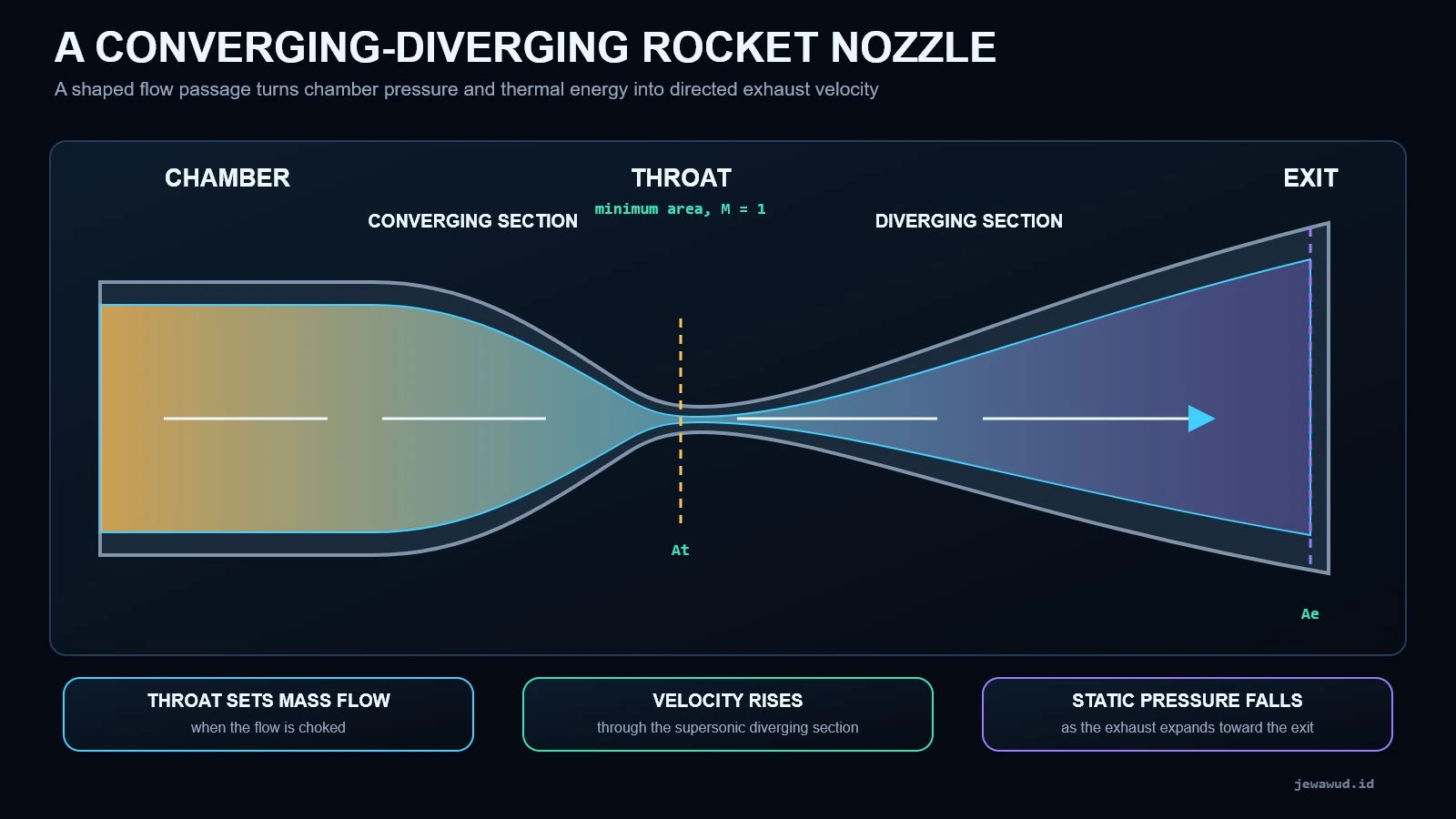

The drawing below is a centerline section, not an exterior silhouette. The colored interior represents the gas passage. At and Ae refer to cross-sectional areas, even though a side view displays them as heights.

Choked does not mean blocked. It means the throat has reached its maximum mass-flow response for the current upstream total pressure, total temperature, gas properties, and throat area. The throat is sonic, so information carried by small pressure disturbances cannot travel upstream through it in the ordinary way.

As long as the pressure ratio remains high enough to sustain choking, lowering downstream pressure further does not make the throat pass unlimited extra mass. Instead, the downstream expansion pattern changes. This is why throat area is such an influential design input: it participates in setting the mass flow and links the chamber to the rest of the nozzle.

In a solid motor, the coupling is especially visible. Propellant burning generates gas, chamber pressure affects burn rate, and the throat meters outflow. Changing throat diameter therefore changes more than a geometric drawing. It can change chamber pressure, burn history, thrust, and safety margin together. That coupled behavior is explored in the companion article Solid Rocket Motor Design Explained.

After the throat, the nozzle provides room for the supersonic gas to expand. A larger Ae/At generally permits more expansion, producing a lower exit pressure and a different exit Mach number for the same chamber state and gas model. The exit temperature also falls as energy is converted into velocity.

Expansion ratio is not a universal quality score. A larger value can increase vacuum performance potential, but it also increases size and often mass. Near sea level, a very low exit pressure can make the nozzle strongly overexpanded. The boundary layer may separate from the wall, and asymmetric separation can create side loads. Contour shape, length, cooling, material, chamber pressure, gas chemistry, and operating range all matter.

The expansion ratio also does not determine thrust by itself. It influences exit velocity and pressure, but the answer still depends on mass flow, chamber conditions, ambient pressure, losses, and the complete flow field.

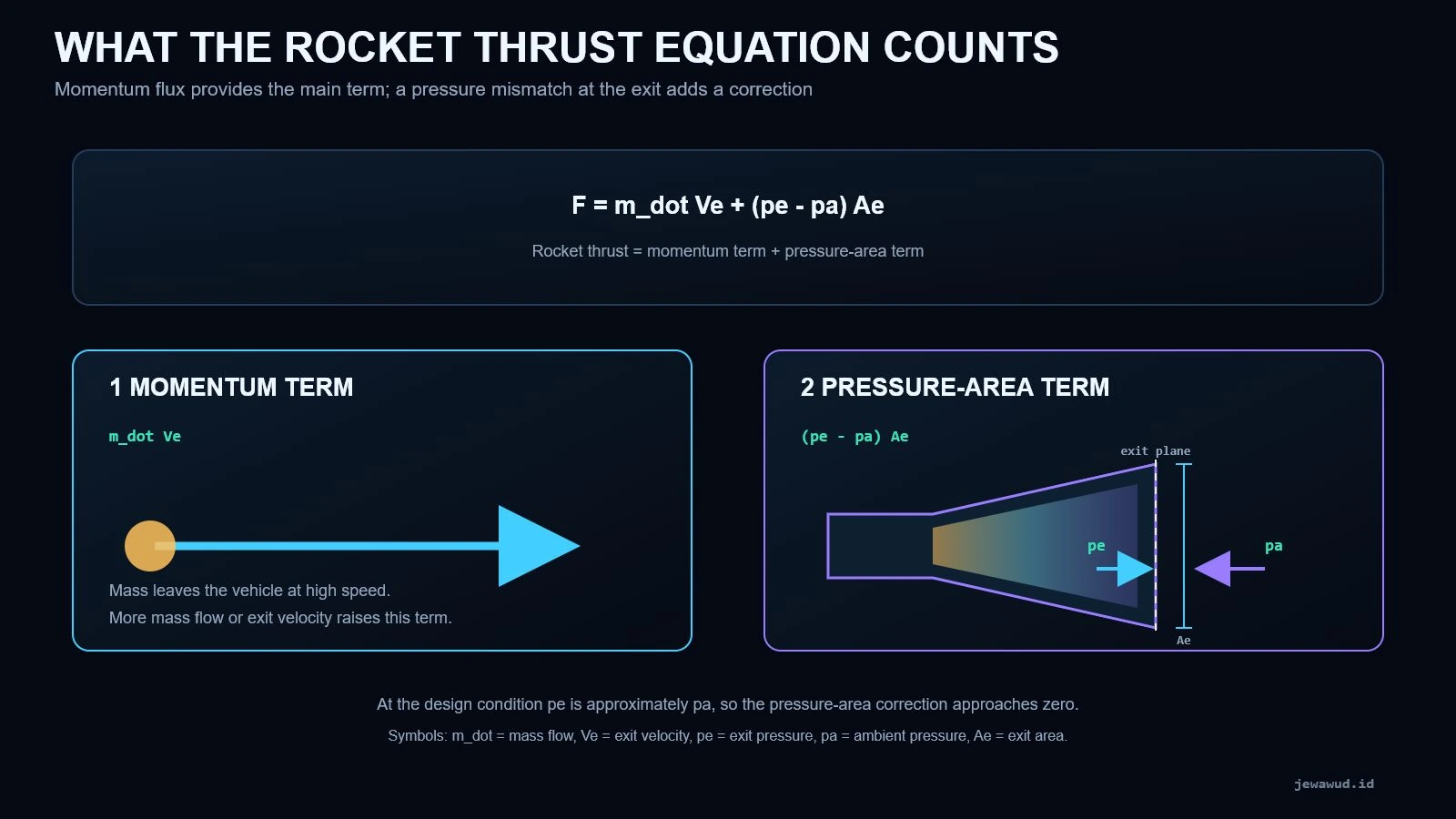

For a stationary rocket in a simplified one-dimensional treatment, thrust is commonly written as F = m_dot Ve + (pe - pa)Ae. The first term is momentum thrust: mass leaves the engine at exit velocity Ve. The second is pressure thrust: the nozzle exit pressure pe may differ from ambient pressure pa over the exit area Ae.

If pe is approximately equal to pa, the pressure-area correction approaches zero. That does not mean the nozzle stops producing thrust. The momentum term remains. If pe exceeds pa, the positive pressure difference adds thrust, although the exhaust could have been expanded further. If pe is below pa, the pressure term subtracts from thrust and strong overexpansion may introduce separation concerns.

This equation is compact, but every symbol contains engineering work. Mass flow depends on choking and chamber conditions. Exit velocity and pressure depend on gas properties, losses, and geometry. Ambient pressure changes during ascent. A simulator can connect these variables, but only within its stated assumptions.

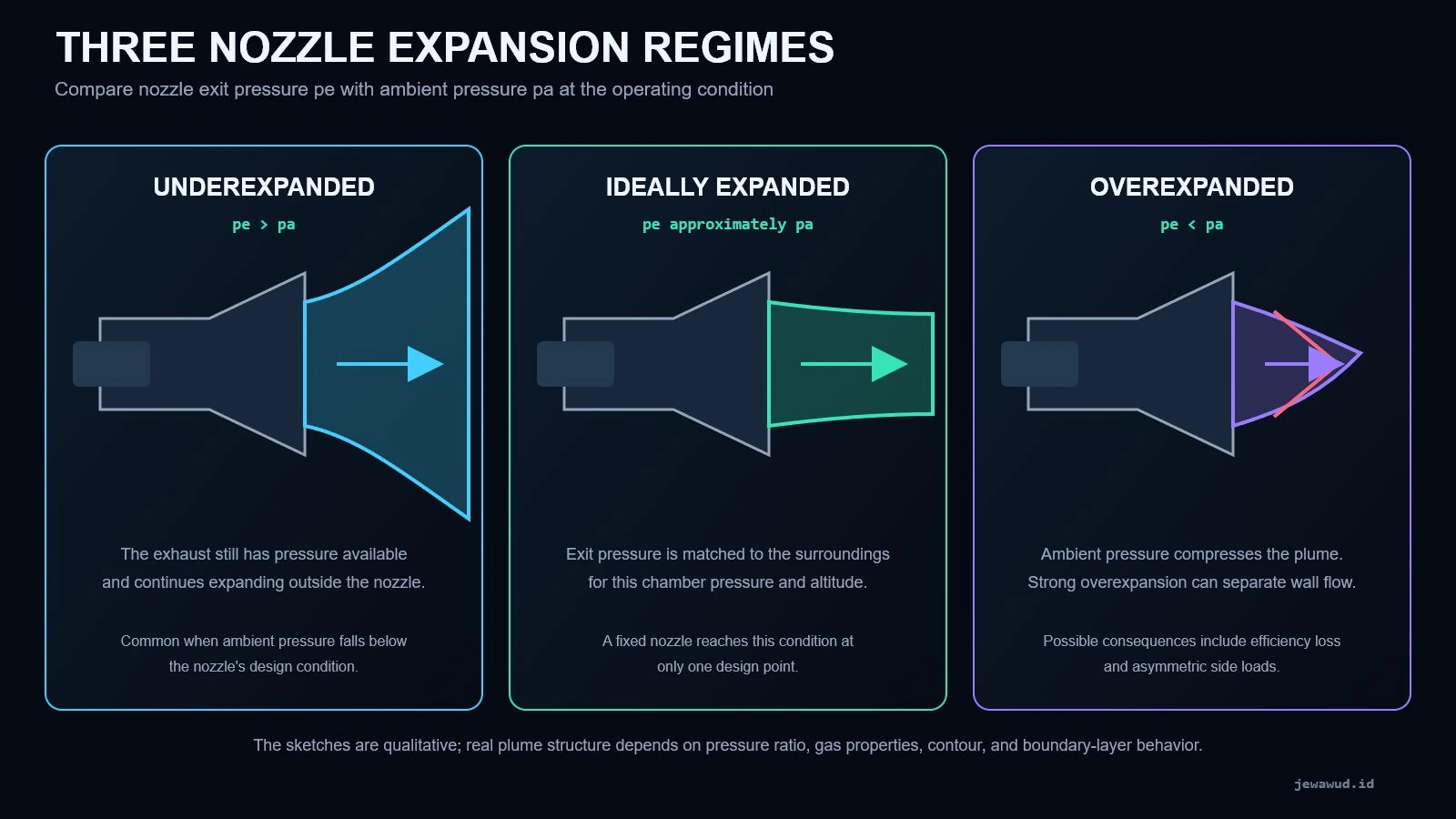

A fixed nozzle is perfectly matched only at a particular combination of chamber state and ambient pressure. Underexpanded flow has pe greater than pa. The exhaust leaves the bell while it still has pressure available and continues to expand outside the nozzle. This commonly occurs when a nozzle operates above its design altitude or when chamber pressure is higher than its matched condition.

Ideally expanded flow has pe approximately equal to pa. The nozzle has brought the exhaust close to the surrounding pressure at its exit plane for that operating point. It is a useful reference condition, not a state a fixed launch nozzle maintains throughout ascent.

Overexpanded flow has pe below pa. The atmosphere compresses the plume through shock structures. Mild overexpansion can remain attached, but sufficiently strong overexpansion may cause the boundary layer to separate inside the bell. If separation becomes asymmetric, the nozzle can experience side loads. The simple plume sketches below show direction and pressure relationship, not the full shock-cell or boundary-layer structure.

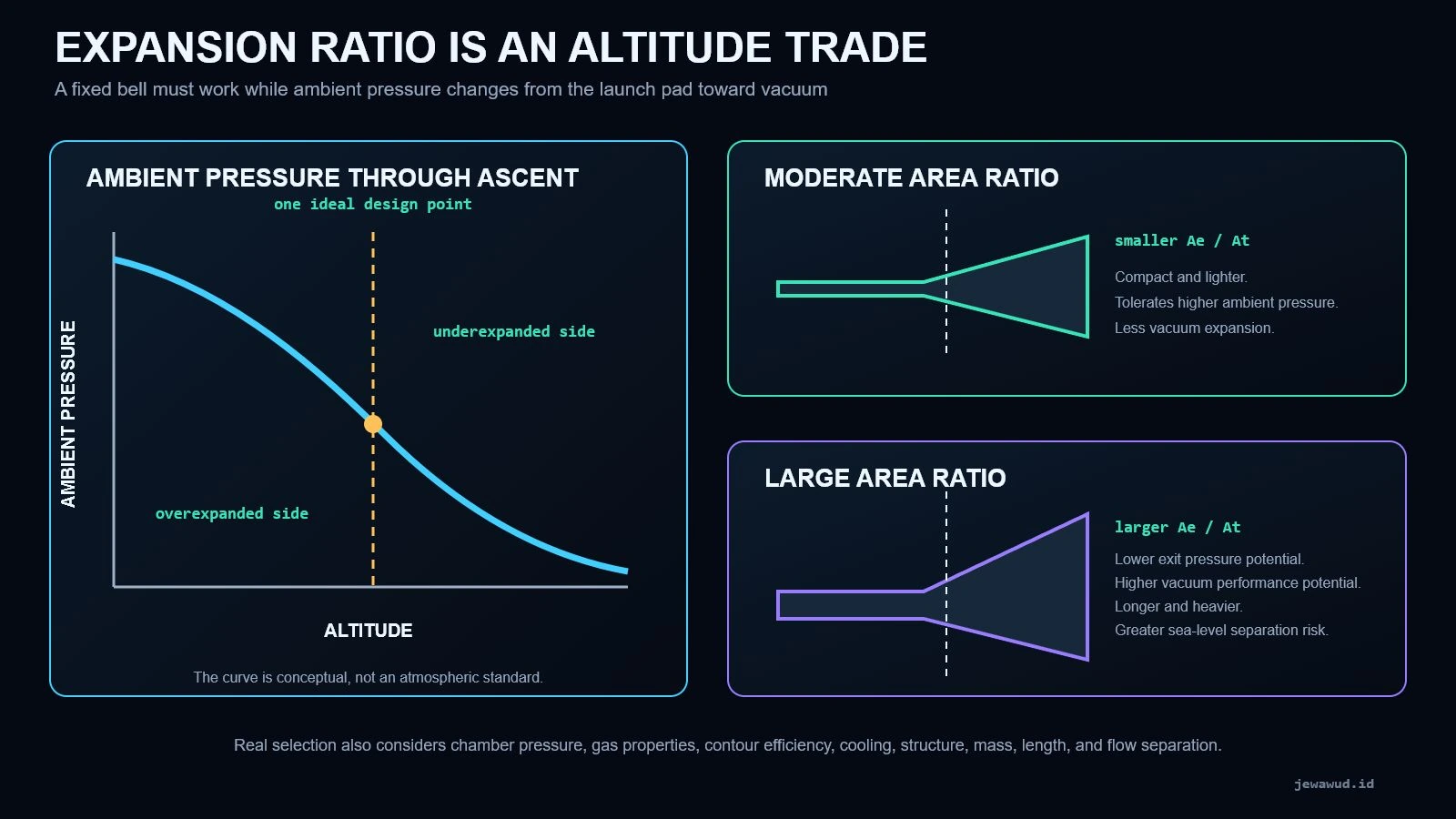

Ambient pressure is highest near the launch pad and falls rapidly with altitude. A first-stage nozzle must tolerate a wide range while also fitting within vehicle length, mass, structure, cooling, and ground-clearance limits. Its area ratio is therefore usually more moderate than that of an upper-stage engine designed primarily for near-vacuum operation.

A vacuum nozzle can use a larger expansion ratio to drive exit pressure lower and extract more velocity from the gas. That is why upper-stage bells often look disproportionately large. The same large bell would be more strongly overexpanded at sea level and may be too long or heavy for another stage. A small bell, meanwhile, can leave useful expansion unfinished in vacuum.

The distinction is a trade, not a rule that short always means sea level and long always means vacuum. Chamber pressure, propellant products, cycle, nozzle contour, cooling approach, mission trajectory, and acceptable separation behavior alter the result. Some systems use altitude-compensating concepts, extendable nozzles, or multiple operating modes, but fixed bells remain common because they are structurally direct and well understood.

Jewawud's Rocket Motor Designer exposes expansion ratio and ambient condition beside grain, propellant, throat, and solver inputs. That placement is deliberate. The nozzle cannot be understood independently from the gas source or the environment.

Start from a documented preset instead of an arbitrary custom case. Keep the grain and throat fixed, then compare a moderate expansion ratio at sea level with the same ratio at high altitude or vacuum. Observe how the estimated thrust coefficient and specific impulse change. Next vary expansion ratio while keeping the other inputs unchanged. The exercise reveals sensitivity; it does not produce an approved nozzle contour.

Always read the warnings. A performance increase that accompanies excessive chamber pressure, an invalid port-to-throat ratio, unrealistic geometry, or poor casing margin is not an engineering improvement. The app is designed to keep the curve and review panel visible together so that a visually attractive line does not hide a failed constraint.

An ideal nozzle calculation often assumes steady, one-dimensional, adiabatic, chemically frozen or equilibrium flow with an efficiency correction. Real hardware has viscous boundary layers, heat transfer, erosion, nonuniform chamber flow, finite-rate chemistry, contour losses, startup transients, manufacturing tolerances, and structural deformation.

Flow separation is especially difficult to reduce to one universal threshold. It depends on pressure ratio, contour, boundary-layer state, wall condition, transients, and three-dimensional asymmetry. A warning should therefore be treated as a reason for higher-fidelity analysis and qualified testing, not as a number to tune away.

No internal-ballistics or nozzle screen can certify a pressure vessel, nozzle insert, closure, insulation system, test stand, or operating procedure. Physical work requires independent structural and thermal analysis, characterized materials, calibrated instrumentation, remote operation, formal hazard review, and compliance with applicable law and range rules.

"A wider exit always creates more thrust." A larger exit changes the expansion state, size, mass, and pressure-area term. It can improve one operating point while worsening another.

"Choked means the nozzle is clogged." Choking is a sonic-flow condition at the minimum area, not a blockage.

"Supersonic gas should slow down in a wider passage." In the divergent section of a correctly operating converging-diverging nozzle, supersonic flow accelerates as area increases.

"A plume wider than the bell proves high efficiency." Plume shape is influenced by pressure mismatch and external shocks. A dramatic plume is not a standalone performance measurement.

"Vacuum nozzles do not work at sea level." Many can operate there briefly or during testing, but they may be overexpanded and must be designed to tolerate startup and separation loads.

"The expansion ratio slider designs the nozzle." It changes an area ratio in a simplified model. A real nozzle also needs a contour, length, material, thermal strategy, structural design, manufacturability assessment, and validation program.

What is a nozzle throat? The throat is the nozzle's minimum cross-sectional area. In normal rocket operation the flow is choked there and locally sonic.

What is expansion ratio? It is exit area divided by throat area, Ae/At. It strongly influences the exit Mach number, pressure, temperature, velocity, and packaging.

Why are vacuum nozzles larger? Low ambient pressure allows more expansion before the exhaust reaches its surroundings, so a larger area ratio can extract more velocity.

What is an underexpanded plume? It leaves the nozzle with exit pressure above ambient pressure and continues expanding outside.

Can a nozzle be ideal at every altitude? A fixed-geometry nozzle is matched at only one design condition. Ambient pressure changes continuously during ascent.
