Solid Rocket Motor
Design Explained

A solid rocket motor stores propellant inside its pressure case. When the exposed propellant surface ignites, the surface regresses and releases hot gas. That gas raises chamber pressure, flows through a choked nozzle throat, expands through the nozzle, and produces thrust. Every part of that sentence is connected to every other part.

A design simulator therefore does more than draw a grain cross-section. It advances the grain geometry through many small time steps, estimates the exposed burning area at each step, calculates gas generation, solves for chamber conditions and nozzle flow, and turns the result into pressure and thrust histories. Useful outputs include initial and maximum Kn, peak and average chamber pressure, peak and average thrust, burn time, total impulse, estimated specific impulse, propellant mass, and geometry warnings.

Jewawud's Rocket Motor Designer is intended for education and early trade studies. It helps users see cause and effect before dealing with higher-fidelity structural, thermal, combustion, and manufacturing analysis. A smooth line on a screen is not certification that a physical motor is safe.

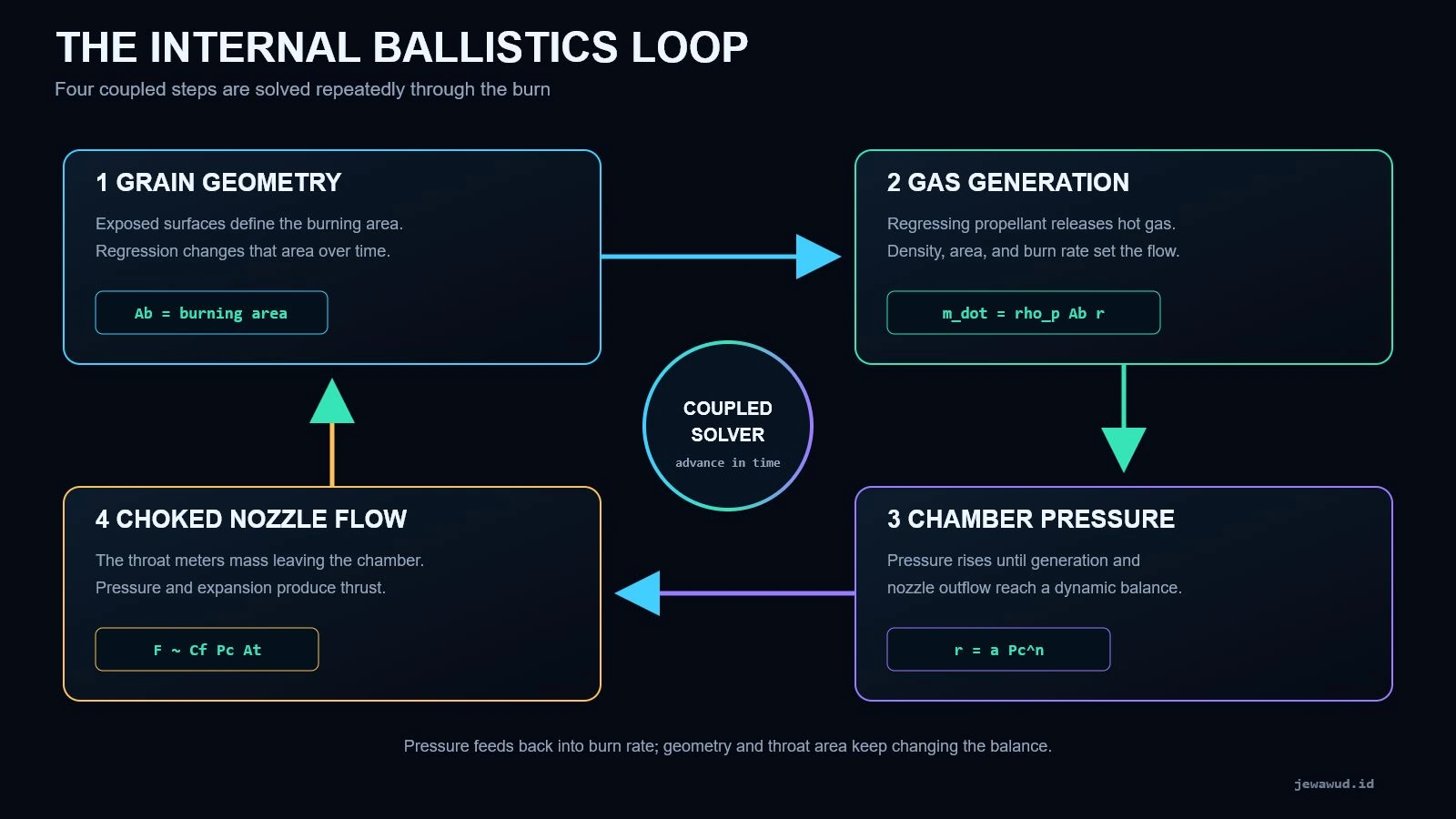

The central design problem is a feedback loop. If the exposed burning area Ab increases, more propellant can regress at the same burn rate. More gas enters the chamber, so chamber pressure Pc tends to rise. For many solid propellants, burn rate is itself pressure dependent, commonly represented over a characterized pressure range by Saint Robert's law: r = a Pc^n. Higher pressure can therefore increase regression rate and gas generation again.

The nozzle throat provides the competing outflow. Once flow is choked at the throat, throat area strongly influences how much mass can leave the chamber. Pressure settles where gas generation and nozzle discharge are dynamically compatible. The equilibrium changes throughout the burn because grain geometry, throat erosion, propellant properties, and ambient pressure may all change.

This is why isolated rules of thumb can be dangerous. Changing port diameter does not affect only port diameter. It changes initial burning area, free volume, flow area, web thickness, burn duration, and often Kn. Changing the throat affects both pressure and nozzle behavior. The simulator must solve the connected system instead of treating each input as an independent decoration.

The propellant grain is shaped so selected surfaces burn while others are inhibited. An inhibitor prevents or delays regression on a face, allowing the designer to choose which surfaces contribute burning area. As combustion moves into the grain, the exposed area may increase, stay approximately constant, or decrease. Those trends are called progressive, neutral, and regressive, although a real curve can move through more than one behavior.

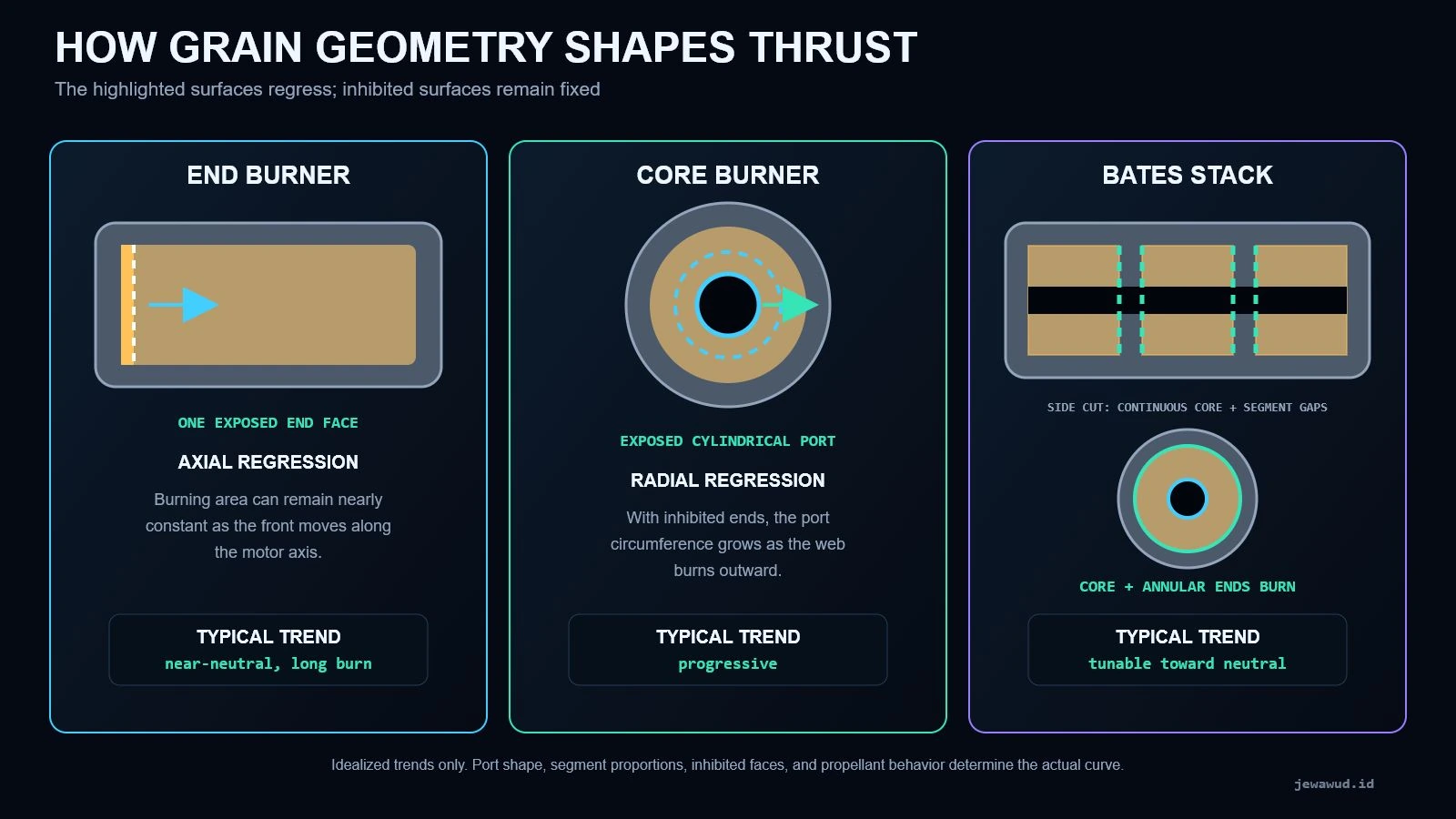

An idealized end burner exposes one end face and regresses axially. If that face remains nearly the same size, burning area can stay close to constant and produce a relatively long, near-neutral burn. An inhibited-end cylindrical core burner regresses radially outward; its port circumference grows, so it tends to become progressive. A BATES stack combines exposed cylindrical ports with exposed annular segment ends. Growing core area can be balanced against shrinking end area, making a near-neutral design possible over part of the burn.

Those statements are trends, not promises. Star ports, slots, wagon-wheel ports, finocyl shapes, segment gaps, inhibited faces, erosive burning, and end effects all change the result. A credible illustration must state the assumed exposed faces instead of claiming that one silhouette always produces one thrust curve.

Kn is the ratio of burning area to nozzle throat area: Kn = Ab / At. It is dimensionless when both areas use the same units. The ratio is useful because it places the gas-generating surface and the principal flow restriction in one number. A larger burning area or a smaller throat raises Kn; a smaller burning area or a larger throat lowers it.

Kn is not a universal pressure gauge. The pressure corresponding to a given Kn depends on the propellant's characterized burn-rate coefficients, temperature, combustion properties, nozzle discharge behavior, and model assumptions. A Kn value that appears reasonable for one propellant and motor family may be wrong for another. A simulator should therefore show Kn alongside pressure, propellant data, and warnings rather than presenting a green band as a law of nature.

The time history matters as much as the initial value. If burning area grows rapidly while throat area remains fixed, Kn and chamber pressure can climb. If the throat erodes, At grows and may pull Kn downward. Inspecting only the starting ratio can hide the most demanding part of the burn.

NASA's general rocket thrust equation is F = m_dot Ve + Ae (pe - p0). Momentum in the exhaust provides the first term. The difference between exit pressure pe and ambient pressure p0, acting over exit area Ae, provides the pressure term. A convenient solid-motor form is F = Cf Pc At, where the thrust coefficient Cf packages nozzle expansion, gas properties, pressure ratio, ambient pressure, and efficiency assumptions.

The nozzle throat is the minimum area of a convergent-divergent nozzle. Under operating conditions it chokes the flow, meaning the throat reaches Mach 1 and sets mass-flow behavior. Downstream, the diverging section accelerates the gas to supersonic velocity. Expansion ratio, defined as exit area divided by throat area, influences exit pressure and performance.

A nozzle designed for one ambient condition is not automatically optimal everywhere. At sea level, excessive expansion can lead to overexpansion and possible flow separation. In vacuum, a larger expansion ratio can recover more exhaust energy, but packaging, mass, heat transfer, and structural limits remain. The expansion-ratio input in a learning tool should be treated as a trade, not a free-performance slider.

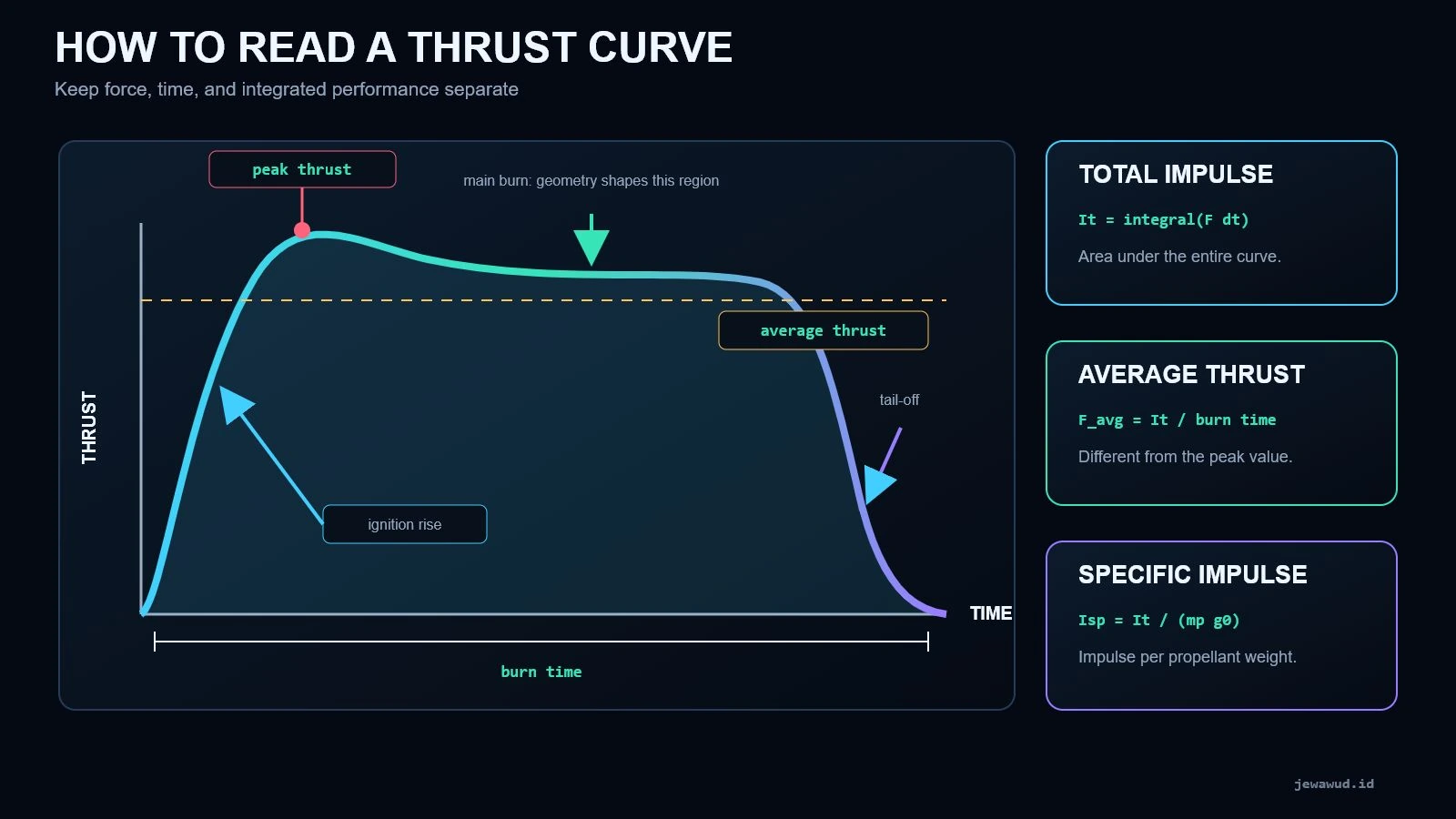

A thrust curve plots thrust against time. The ignition transient is the initial rise as enough grain surface becomes active and chamber pressure builds. The main-burn region reflects the evolving grain area, propellant behavior, and nozzle. Tail-off begins when burning area collapses, the final web burns through, or pressure can no longer be sustained.

Peak thrust is the highest point, while average thrust is total impulse divided by the chosen burn duration. They are not interchangeable. A motor can have a sharp peak yet deliver less useful sustained thrust than another motor with a lower peak and broader curve. Total impulse is the area under the curve: It = integral(F dt). Numerical tools usually estimate it with trapezoidal integration over sampled data.

Specific impulse connects impulse to propellant weight: Isp = It / (mp g0). It is a propulsion-efficiency measure, not the motor's burn time or maximum pressure. Estimated Isp can look precise even when the propellant model, combustion efficiency, nozzle losses, or mass estimate are uncertain, so report assumptions with the number.

Selecting a propellant changes more than density. Internal-ballistics models may require measured burn-rate coefficients, valid pressure ranges, characteristic velocity c*, ratio of specific heats, molecular properties, flame temperature, combustion efficiency, and temperature sensitivity. Generic presets are useful for learning, but they cannot represent every formulation, batch, casting process, moisture condition, or test temperature.

The coefficients a and n in a burn-rate law are empirical. They should come from controlled characterization, and a single fit may not remain valid across a wide pressure range. Piecewise data can represent different pressure regimes more honestly. Extrapolating far beyond measured conditions can produce a neat curve with little physical authority.

This is also why a design should not be validated by matching one headline number. Two models may produce similar peak pressure while disagreeing about ignition, tail-off, total impulse, or burn time. Calibration should compare the full measured traces and record the exact hardware, propellant batch, environmental condition, sensor chain, and data-processing method.

The grain port is also a flow passage. Gas generated upstream must travel through it toward the nozzle. A small port relative to throat area can create high velocity and mass flux. Under some conditions that flow increases heat transfer and local regression, producing erosive burning that a simple pressure-only law does not capture.

Port-to-throat area ratio is therefore a valuable diagnostic. It does not replace a mass-flux calculation or a validated erosive-burning correlation, but it can warn that the geometry is forcing too much flow through too little port area. Star and wagon-wheel ports need special care because hydraulic diameter, perimeter, sharp features, and evolving shape matter.

A good educational simulator should expose this limitation. It is better to show a warning than to silently pretend the one-dimensional model knows three-dimensional recirculation, ignition spread, slag accumulation, cracks, debonding, or local heat transfer.

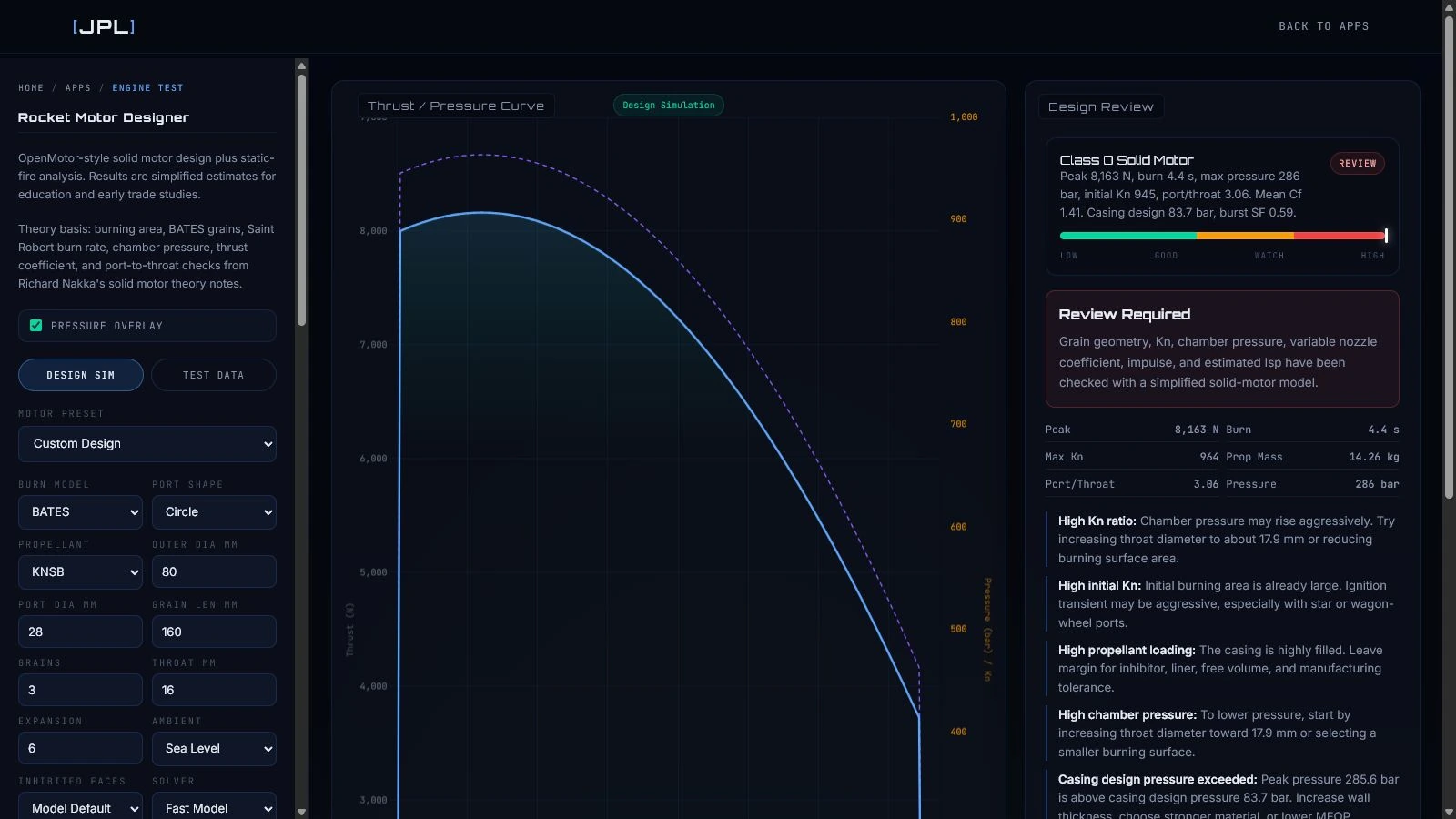

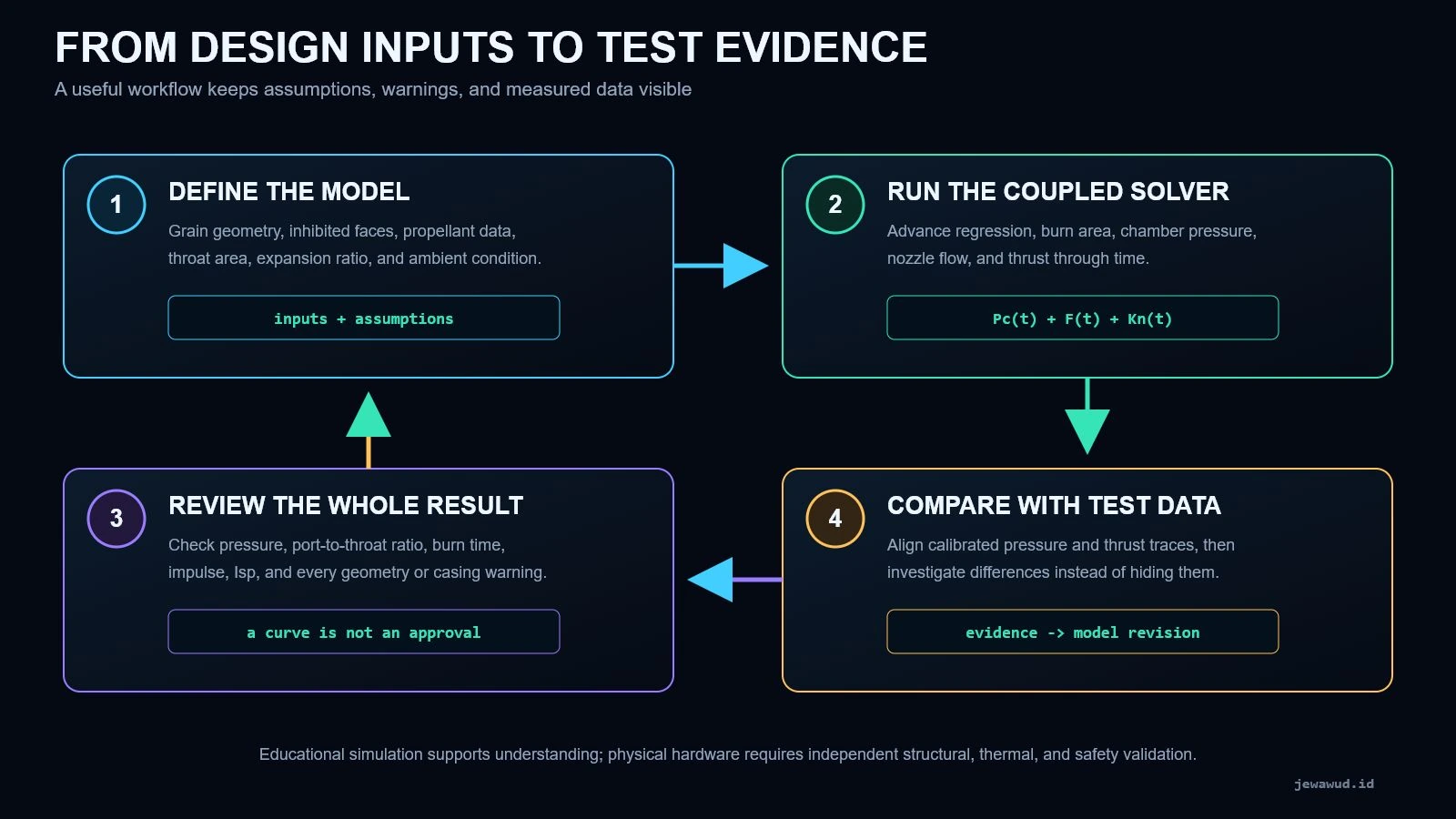

Begin with a documented preset in the Rocket Motor Designer, then change one family of variables at a time. First inspect the grain type, exposed and inhibited faces, outer diameter, port geometry, grain length, and segment count. Move the regression control through the burn and watch whether the port remains physically valid and how burning area changes.

Next inspect nozzle throat diameter and expansion ratio. Run the simulation and compare initial Kn, maximum Kn, chamber-pressure history, and thrust history. Do not chase thrust alone. A high-thrust result accompanied by extreme pressure, poor port-to-throat ratio, or a casing warning is not an improvement. It is a failed trade wearing an exciting number.

Then compare peak thrust, average thrust, burn time, total impulse, propellant mass, and estimated Isp. Ask whether the curve shape matches the intended mission role. A short booster-like pulse and a long sustain burn solve different problems. Finally, export the curve and assumptions so a later comparison can reproduce the exact configuration.

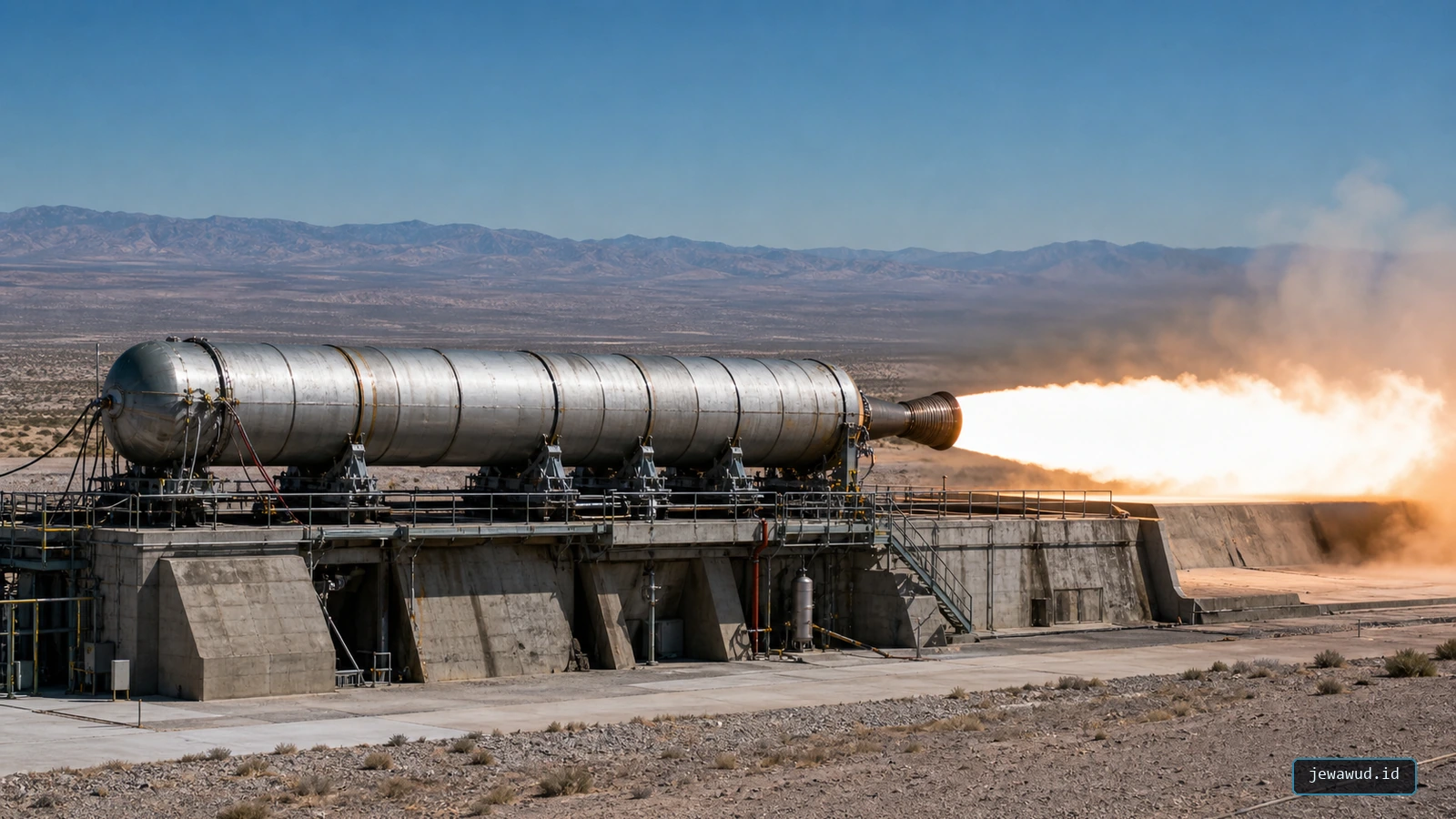

Simulation becomes more useful when it is compared with instrumented test data. A static-fire record can reveal ignition delay, pressure rise, thrust buildup, oscillation, peak timing, main-burn shape, tail-off, total impulse, and anomalies. The time bases and sensor calibrations must be correct before visual comparisons mean anything.

Start by comparing measured and simulated burn time, total impulse, peak thrust, and the location of that peak. Then compare curve shape. If measured thrust rises faster than predicted, the ignition model or active initial area may be wrong. If the measured main burn slopes differently, grain regression, burn-rate data, throat erosion, or erosive burning may be missing. If tail-off disagrees, residual web geometry and chamber emptying deserve attention.

Calibration is not permission to force every coefficient until one test overlays perfectly. A model that fits one test through arbitrary tuning may fail on the next scale or geometry. Keep measured material properties separate from empirical correction factors, document every change, and validate against more than one test whenever possible.

An internal-ballistics solution does not prove that a pressure case, closure, bond line, liner, inhibitor, nozzle insert, seal, or test fixture can survive. Structural margin depends on material allowables, temperature, manufacturing quality, stress concentration, cyclic history, proof strategy, and failure mode. Thermal survival requires its own heat-transfer and erosion analysis.

The model also cannot see voids, cracks, debonding, unintended exposed surfaces, ignition nonuniformity, sensor errors, or restraint problems. These failure paths are physical, local, and often three-dimensional. Real work requires qualified supervision, appropriate codes and range procedures, remote operations, exclusion zones, fire protection, calibrated instrumentation, and a formal hazard review.

For readers, the important lesson is not how to manufacture a motor. It is how to interrogate a simulation: Which surfaces burn? Which data were measured? What pressure range is valid? What model is omitted? What warning is active? What evidence would falsify the prediction? That mindset is the beginning of engineering.

"A larger port always lowers pressure." It may reduce initial burning perimeter for some geometries while increasing free volume and changing web thickness, but the complete exposed surface and its time evolution determine the result.

"Higher Kn is better." Kn is a geometry ratio, not a score. Excessive Kn can correspond to aggressive pressure, while too little may prevent stable intended operation. The relevant range is motor- and propellant-specific.

"Peak thrust defines the motor class." Motor class is based on total impulse, not peak thrust. A brief spike and a broad plateau can share a peak while delivering very different impulse.

"The prettiest curve is the best design." A mission needs a useful thrust-time profile within pressure, structural, thermal, flow, manufacturing, and operational constraints.

"A preset is verified hardware." Presets are starting points for learning and comparison unless accompanied by traceable, configuration-matched test evidence.

What controls a solid motor's thrust curve? Primarily the evolving exposed burning area, pressure-dependent burn rate, propellant properties, nozzle throat, nozzle expansion, losses, and transient effects.

What is Kn? It is burning area divided by nozzle throat area. It connects grain geometry to the principal nozzle restriction but must be interpreted with the propellant and pressure model.

Why use BATES grains? Their core and exposed-end regression can be proportioned to balance burning-area changes and approach a neutral profile over part of the burn.

Is total impulse the same as thrust? No. Thrust is force at an instant; total impulse is the time integral of thrust.

Can the simulator approve a physical motor? No. It is an educational and early trade-study tool, not a substitute for characterized materials, independent engineering analysis, safety review, and instrumented testing.
