Specific Impulse
What Rocket Isp Really Measures

Specific impulse, written as Isp, is one of the most quoted numbers in rocket engineering and one of the easiest to misuse. It does not say how large an engine is, how quickly a vehicle accelerates, how long a motor burns, or how much total momentum a mission receives. It answers a narrower question: how much thrust is produced for a given propellant weight flow.

That narrow definition is useful because raw thrust alone cannot compare engines fairly. A large engine can create enormous thrust simply by processing a large amount of propellant each second. A much smaller engine may produce less thrust while using its propellant more effectively. Isp removes the scale of mass flow from the first comparison.

This is why Isp is often described informally as a measure of propellant economy. The phrase is helpful if it is kept within the propulsion context. Isp is not the same as thermal efficiency, electrical efficiency, cost efficiency, or overall mission efficiency. It measures a particular relationship among thrust, propellant flow, and standard gravity.

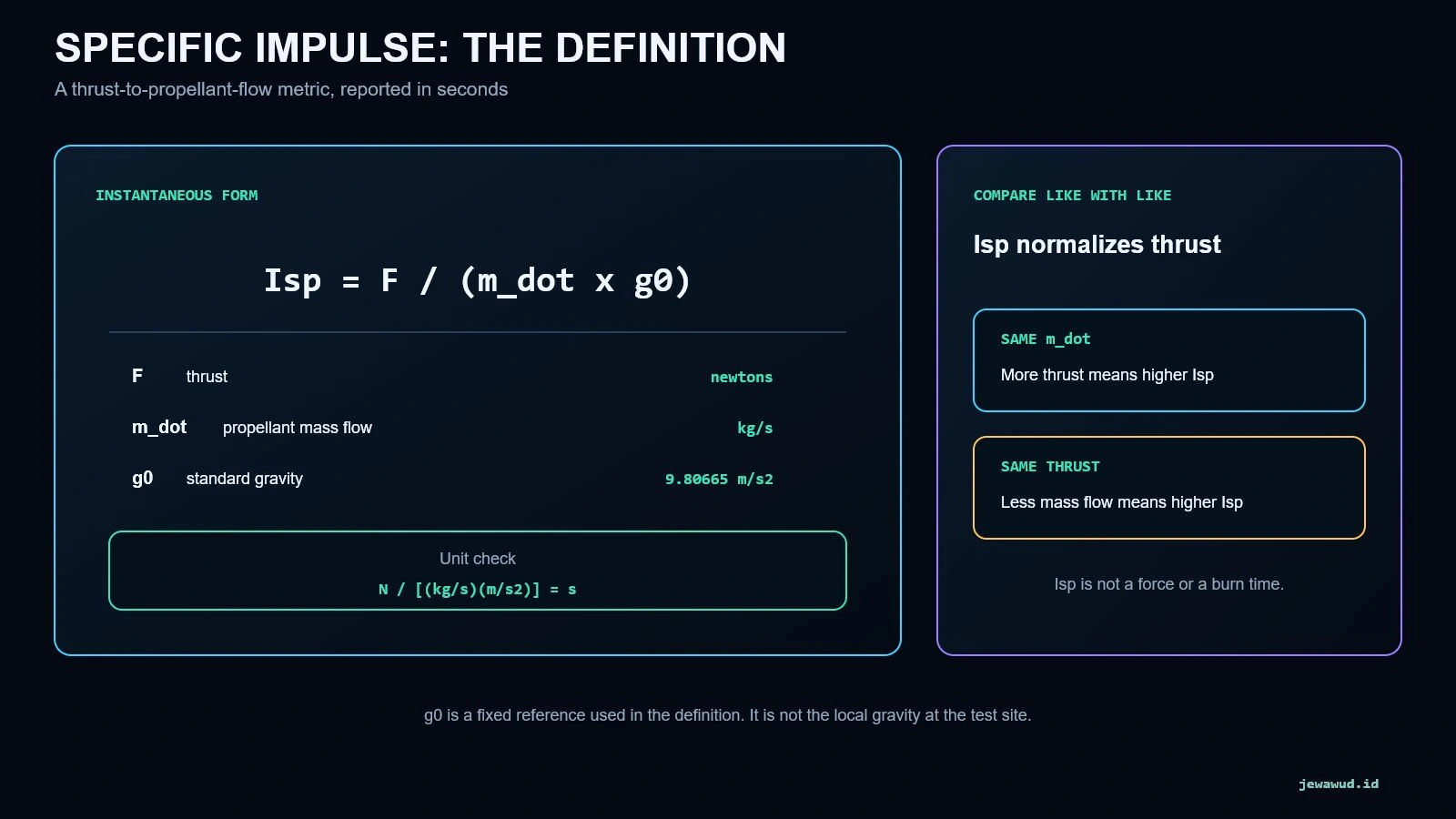

For a steady operating point, specific impulse can be written as Isp = F / (m_dot g0). F is thrust in newtons, m_dot is propellant mass flow in kilograms per second, and g0 is standard gravity. The conventional value of g0 is 9.80665 meters per second squared.

The result is measured in seconds because a newton is a kilogram meter per second squared. Dividing thrust by mass flow times acceleration cancels the mass and length dimensions, leaving time. The second is therefore not burn duration. An engine with 300 seconds of Isp does not necessarily burn for 300 seconds. It means its thrust-to-propellant-weight-flow ratio is numerically equivalent to 300 seconds.

Standard gravity is a reference constant used to keep the definition consistent. Isp does not change merely because an identical engine is tested on the Moon, where local gravitational acceleration is lower. The local environment can still change performance through ambient pressure, temperature, or facility effects, but the g0 in the Isp definition remains the same conventional reference.

Rearranging the definition gives F = m_dot g0 Isp. This form makes the distinction clear. Thrust can rise because Isp rises, because mass flow rises, or because both rise. Two engines with the same Isp can have radically different thrust if one processes much more propellant each second.

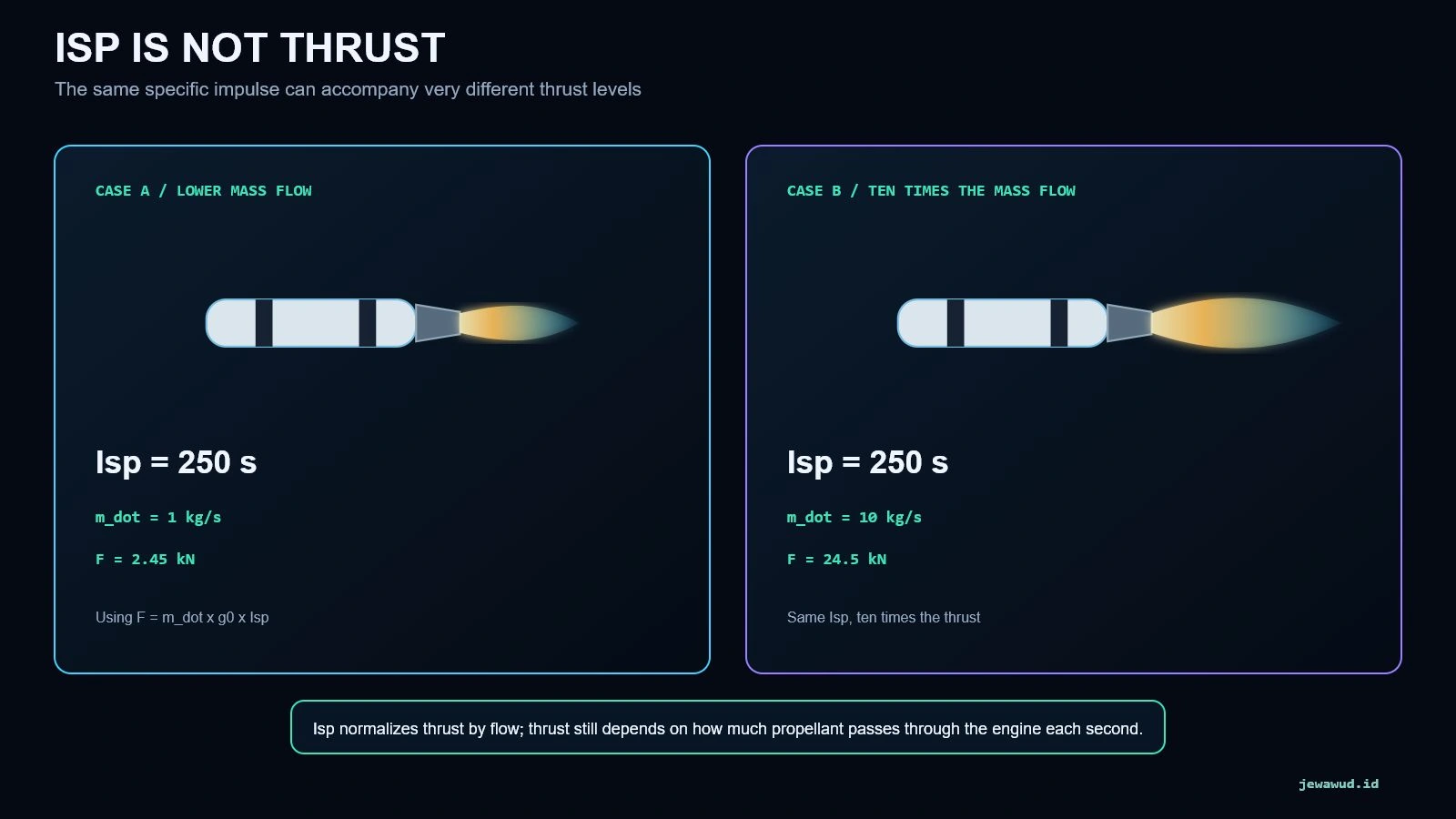

Consider two simplified operating points with Isp fixed at 250 seconds. At one kilogram per second, the relationship gives about 2.45 kilonewtons of thrust. At ten kilograms per second, it gives about 24.5 kilonewtons. The second engine produces ten times the thrust without any improvement in Isp. It is simply moving ten times as much propellant through the system.

The reverse misunderstanding also causes trouble. An electric thruster can have very high Isp because it accelerates a small propellant flow to very high effective velocity, yet its thrust may be tiny. That combination can be excellent for months of in-space operation and completely unsuitable for lifting a launch vehicle from Earth. Thrust determines how rapidly momentum changes; Isp describes how much propellant flow is required to sustain that thrust.

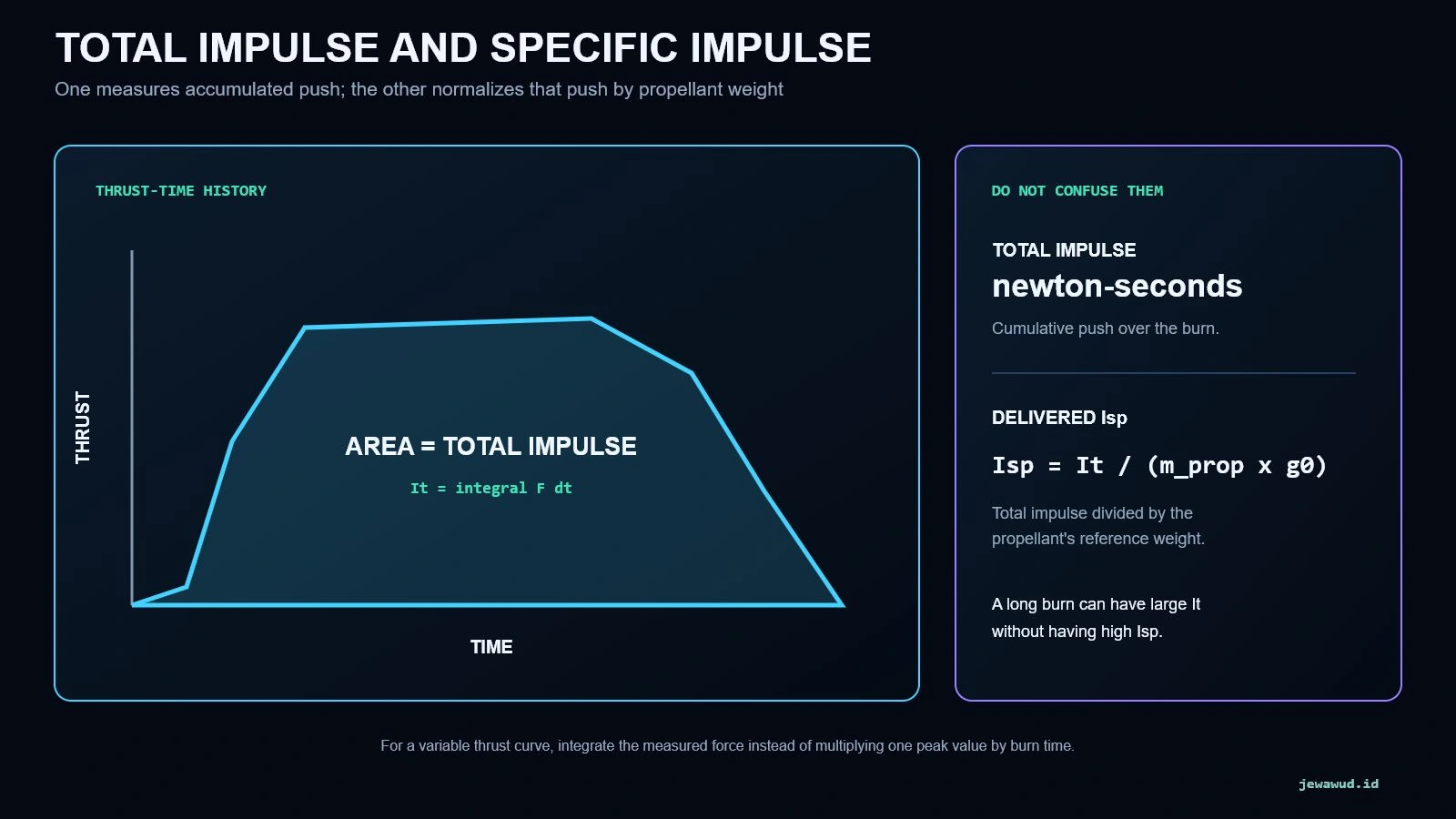

Total impulse, usually written It or I, is the time integral of thrust: It = integral F dt. On a thrust-versus-time graph, it is the area under the curve. Its unit is the newton-second. A short, strong pulse and a long, weak burn can deliver the same total impulse even though their peak thrust and operating behavior are very different.

Specific impulse normalizes that accumulated impulse by propellant reference weight. For a complete burn, delivered Isp can be calculated as It / (m_prop g0), where m_prop is the propellant mass consumed. This form is especially useful when processing static-test data because the measured thrust changes throughout ignition, rise, steady operation, tail-off, and shutdown.

Using peak thrust times burn duration usually overestimates total impulse. A real curve does not stay at its maximum value from start to finish. The correct method integrates the complete measured force history after calibration, tare correction, time alignment, and appropriate treatment of sensor noise. Delivered Isp then depends on both that integrated impulse and the propellant mass actually consumed.

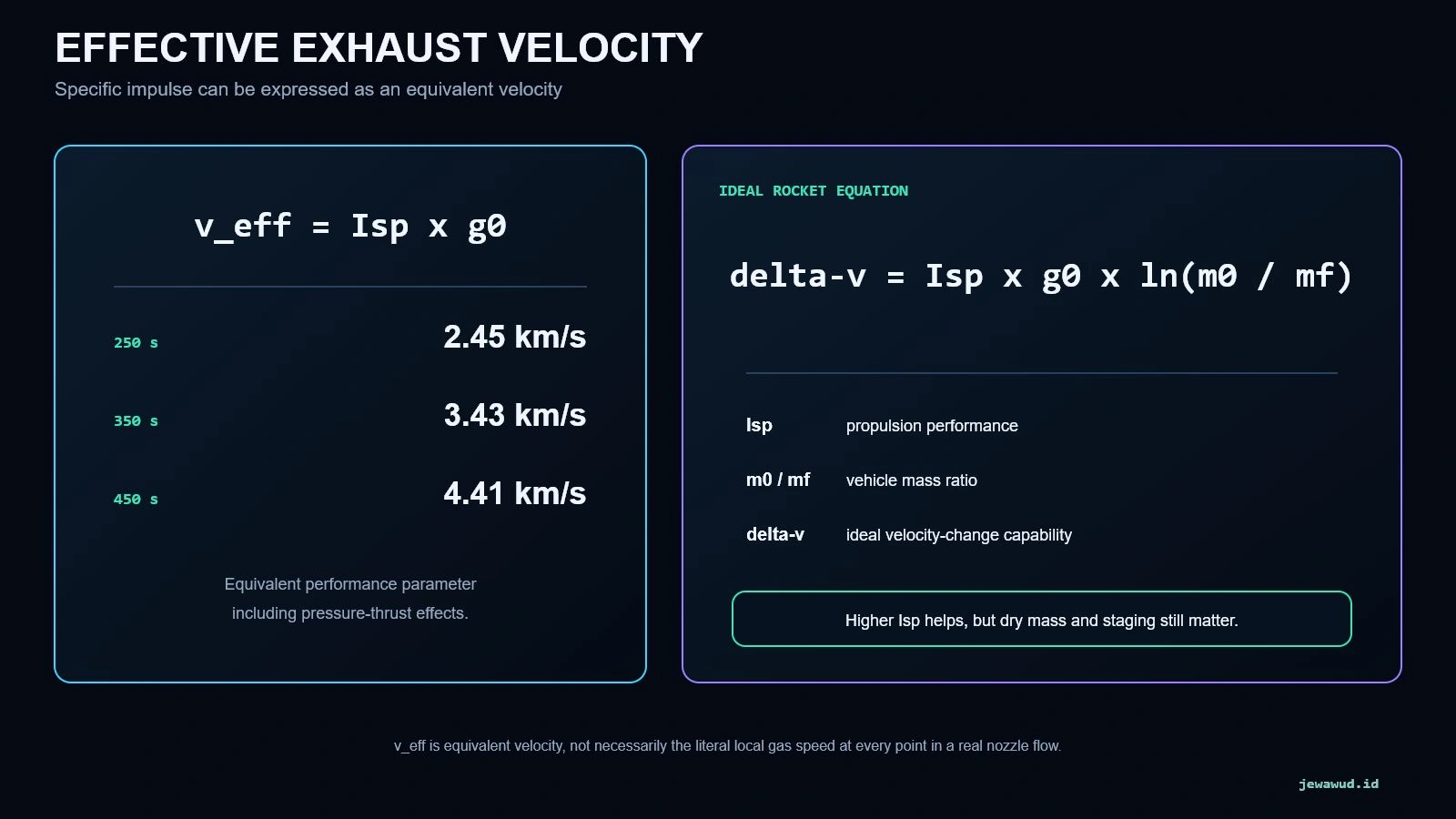

Specific impulse can be converted into effective exhaust velocity through v_eff = Isp g0. An Isp of 250 seconds corresponds to about 2.45 kilometers per second. At 350 seconds the equivalent value is about 3.43 kilometers per second, and at 450 seconds it is about 4.41 kilometers per second.

The word effective matters. Rocket thrust contains a momentum term and a pressure term. Effective exhaust velocity packages the total measured thrust contribution into one equivalent velocity, so it is not necessarily identical to the literal local gas speed measured at one point in a real nozzle. It is the velocity that, multiplied by propellant mass flow, reproduces the thrust.

This form is convenient because it connects propulsion directly to the ideal rocket equation: delta-v = Isp g0 ln(m0/mf). For a fixed vehicle mass ratio, higher Isp increases ideal velocity-change capability. For a fixed delta-v target, higher Isp reduces the ideal propellant fraction. The logarithm also explains why performance gains do not remove the importance of structure, tankage, payload, and staging.

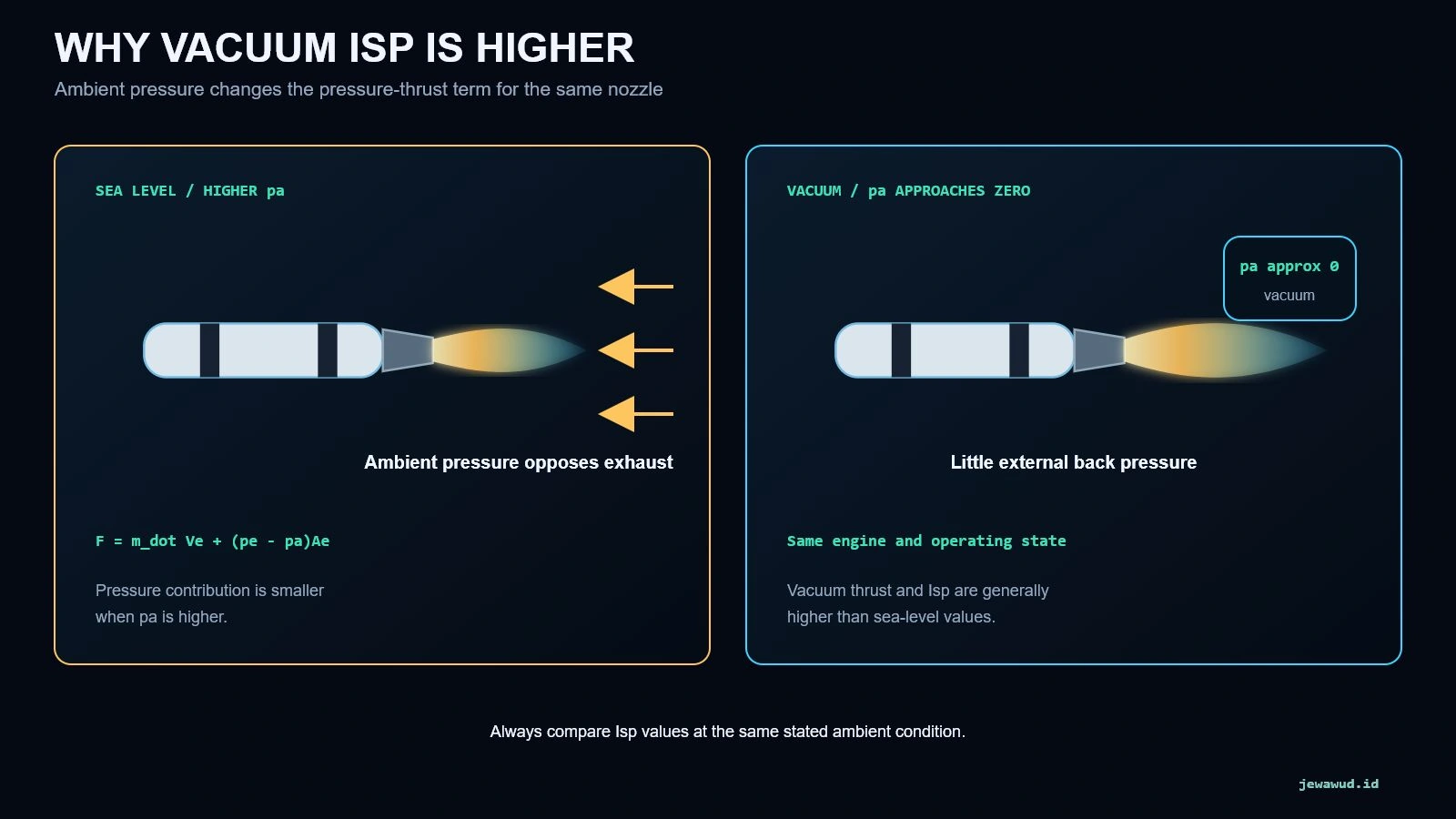

Rocket thrust can be expressed in simplified one-dimensional form as F = m_dot Ve + (pe - pa)Ae. The first term is momentum thrust. The second is pressure thrust, where pe is nozzle exit pressure, pa is ambient pressure, and Ae is exit area. Because ambient pressure appears in the equation, the same engine can have different stated performance at sea level and in vacuum.

Near sea level, atmospheric pressure pushes against the exit plane and reduces the pressure-thrust contribution. In vacuum, pa approaches zero, so the same operating state generally produces more thrust and therefore a higher calculated Isp. This is why an engine data sheet may list both sea-level and vacuum Isp.

The comparison must use the same stated condition. A vacuum Isp from one engine should not be compared casually with a sea-level Isp from another. Nozzle expansion ratio, chamber pressure, mixture ratio, propellant temperature, losses, and operating point can also change the result. Isp is meaningful only when its test or analysis conditions are understood.

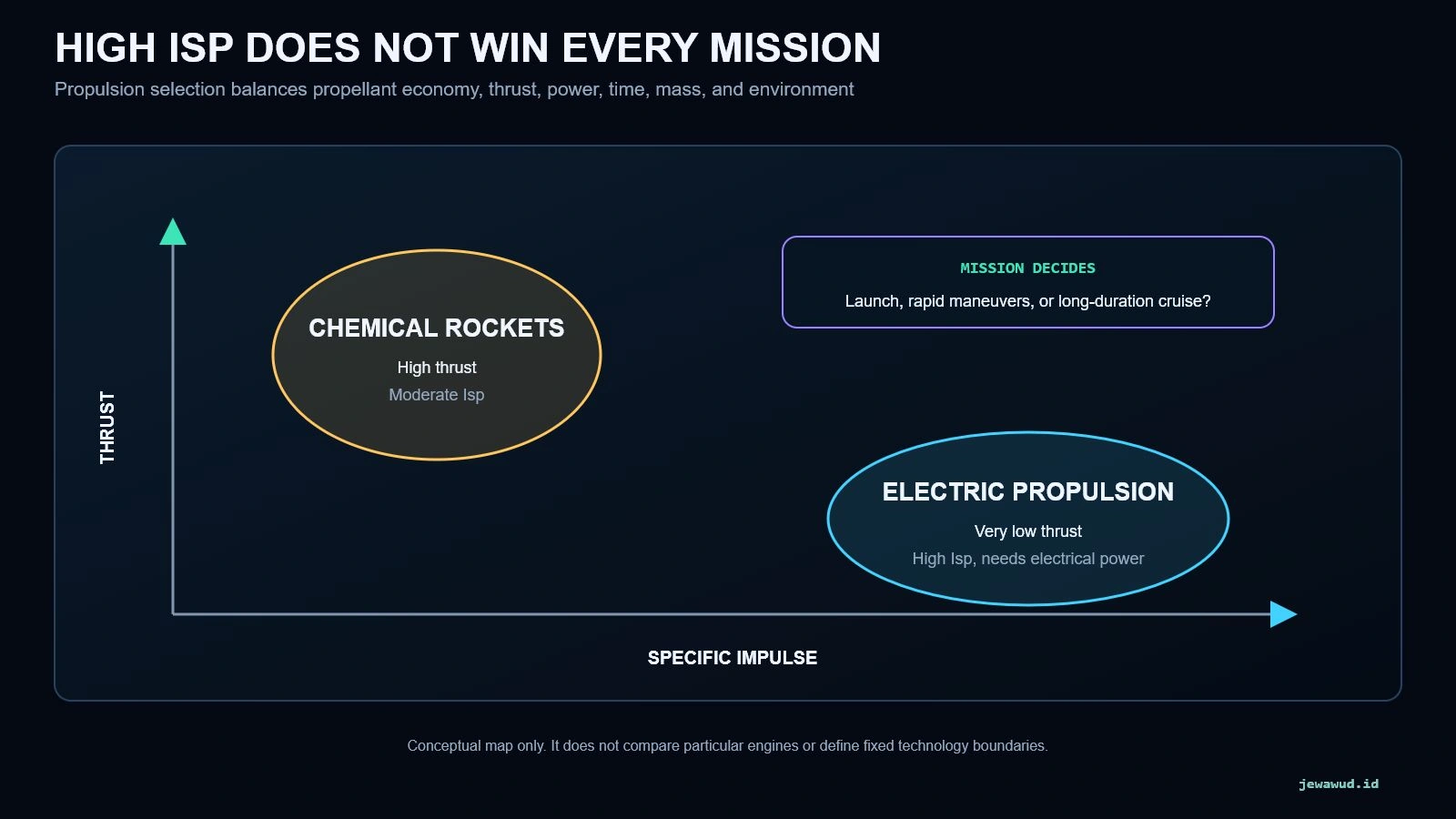

A propulsion system is selected for a mission, not for one headline number. Launch vehicles require enough thrust to exceed weight and control gravity losses. Upper stages need useful thrust, restart behavior, reliability, and a nozzle suited to low ambient pressure. Long-duration spacecraft may accept extremely low thrust in exchange for high Isp and reduced propellant mass.

Electric propulsion illustrates the trade. Electrical energy accelerates a small flow of propellant to high effective velocity, producing high Isp. The system also needs a power source, power-processing hardware, thermal control, and enough operating time to accumulate the required impulse. Chemical rockets carry stored energy in their propellants and can release it rapidly, producing high thrust, but their effective exhaust velocity is lower than that of many electric systems.

Other constraints can dominate: thrust-to-weight ratio, engine dry mass, tank volume, propellant density, toxicity, storability, ignition method, throttling, restart count, thermal environment, mission duration, and cost. Isp is an important coordinate in that design space, not a universal ranking.

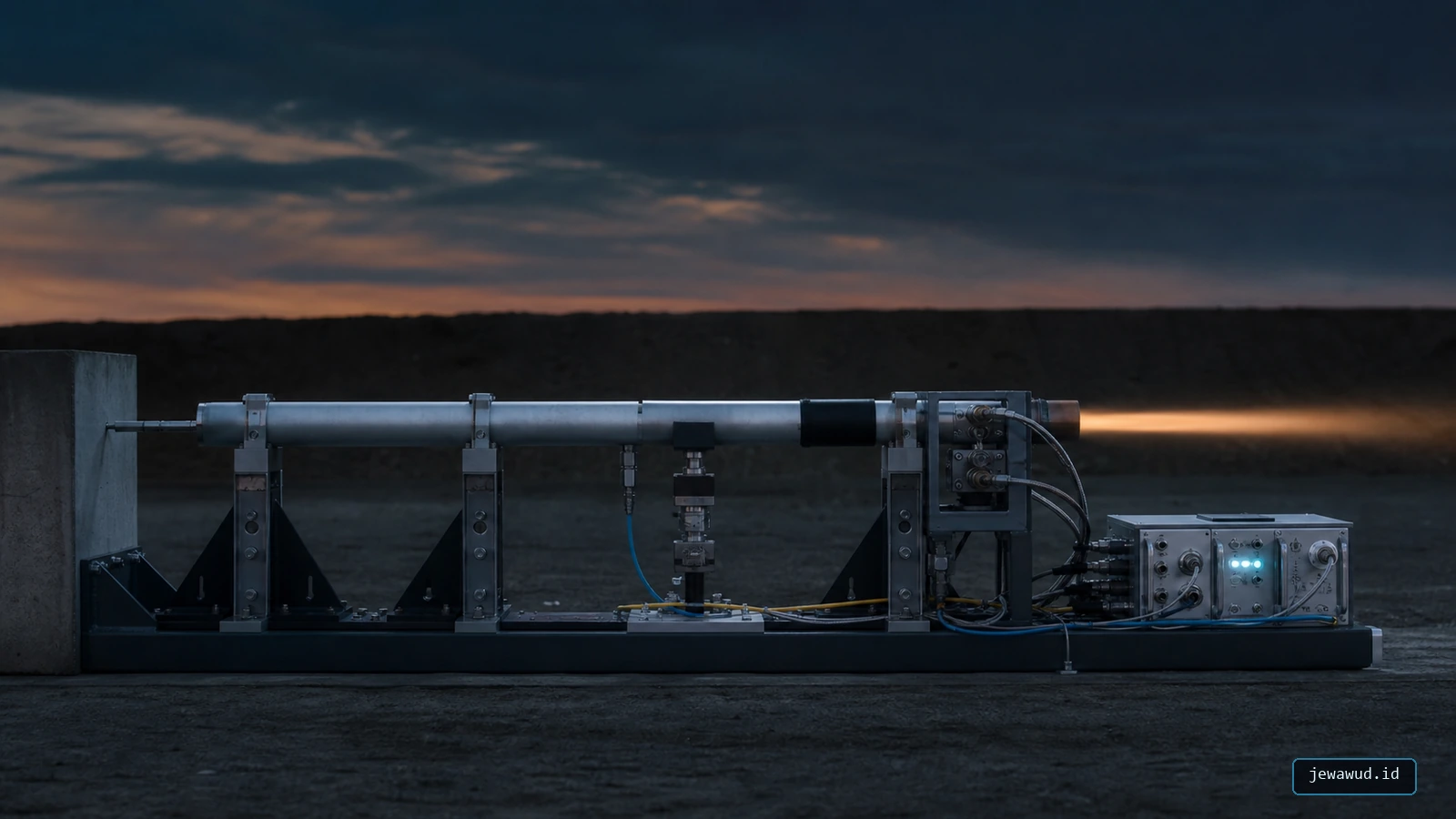

For a professionally controlled static test, a calibrated load cell records thrust as a function of time. The test system needs a known sample rate, synchronized acquisition, correct force direction, a stable tare, and sufficient sensor range. The complete force trace is integrated to obtain total impulse. Propellant mass consumed is measured separately, then delivered Isp is calculated from total impulse divided by propellant mass and g0.

Uncertainty matters. Load-cell calibration, structural vibration, thermal drift, electrical noise, timing accuracy, residual propellant, data filtering, and the chosen integration limits can all change the result. Reporting an Isp value without its test condition and uncertainty gives a false sense of precision.

Static firing is hazardous and requires appropriate facilities, remote operation, qualified supervision, exclusion zones, fire protection, legal compliance, and engineered containment. This article explains how the performance metric is interpreted; it is not an instruction for constructing or firing a motor.

Jewawud's Rocket Motor Designer places Isp beside chamber pressure, mass flow, thrust, burn time, total impulse, grain regression, and nozzle settings. Read those outputs as a connected model. A change that raises predicted Isp may also alter chamber pressure, thrust curve, burn duration, or a design warning.

Begin with a documented preset and change one variable at a time. Compare sea-level and vacuum ambient conditions while holding the motor inputs fixed. Then compare two propellant or nozzle cases at the same condition. The point is sensitivity: identify which output moved, why the equation predicts that direction, and whether another constraint became worse.

The simulator's number is an estimate produced by its assumptions, correlations, and input data. It is not a certification value and does not replace measured performance. The useful workflow is prediction, controlled test by qualified teams, data reduction, model comparison, and revision.

"Isp is burn time." No. Seconds are the reduced unit of the thrust-to-weight-flow ratio. Actual burn time is a separate quantity.

"Higher Isp means higher thrust." No. Thrust also depends directly on mass flow. A high-Isp thruster can produce very little force.

"Isp is ordinary percentage efficiency." No. It is a propulsion performance parameter. It does not say what fraction of chemical or electrical energy became useful vehicle kinetic energy.

"Total impulse and Isp are interchangeable." No. Total impulse is accumulated force over time in newton-seconds. Isp normalizes that impulse by propellant reference weight.

"A larger vacuum number proves an engine improved." Not by itself. Sea-level and vacuum values are different operating conditions. Compare like with like.

"The highest Isp is always best." No. Mission time, required acceleration, power, engine mass, tanks, reliability, environment, and cost can outweigh an Isp advantage.

The equations and terminology in this guide were checked against primary NASA educational and technical sources:

• NASA Glenn Research Center - Specific Impulse
• NASA Glenn Research Center - Thrust Equation
• NASA Glenn Research Center - Ideal Rocket Equation
• NASA Glenn Research Center - Solid Rocket Engine
• NASA Small Spacecraft Systems Virtual Institute - State of the Art of Small Spacecraft Technology

Equations shown here use simplified performance models. Real propulsion analysis also includes multidimensional flow, combustion chemistry, heat transfer, two-phase losses, nozzle efficiency, transient behavior, facility effects, and measurement uncertainty.
