Launch Windows
Explained

A launch window is an interval during which a mission can lift off and still satisfy its trajectory, vehicle, safety, and operational constraints. It can last several hours, only a few minutes, or in some missions collapse into an effectively instantaneous target time. The window is not simply a preferred appointment. Outside it, the planned trajectory may require too much propellant, miss the target, violate a safety corridor, or become impossible for the vehicle.

Every destination moves. An orbital station circles Earth at roughly orbital speed. Earth rotates beneath an orbit whose plane is nearly fixed in inertial space. The Moon travels around Earth while Earth travels around the Sun. Mars follows its own solar orbit. A successful launch must insert the spacecraft into a path that intersects the future position of the destination at the correct time and with a manageable relative velocity.

That is why engineers do not point a rocket directly at a target. They design a trajectory in a chosen reference frame, propagate the launch vehicle and destination forward in time, and identify the liftoff times for which all constraints overlap. The common interval is the usable launch window.

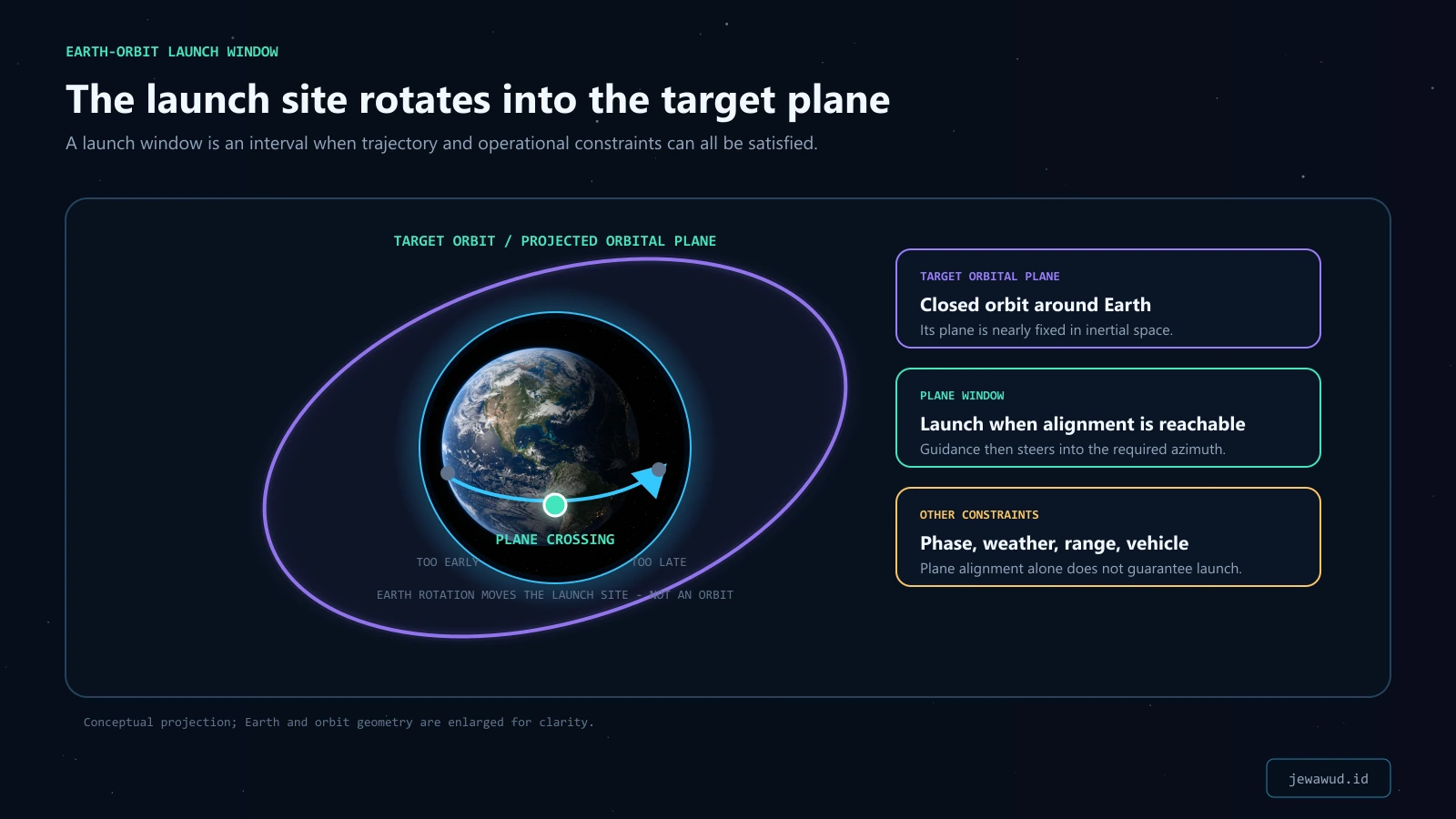

For a direct launch into Earth orbit, the target orbit is not just a ring at some altitude. It occupies an orbital plane through Earth's center. In an ideal inertial view that plane remains nearly fixed while Earth rotates underneath it. The launch site therefore moves toward the plane, crosses it, and rotates away again.

Launching near that crossing minimizes the out-of-plane steering needed to reach the target orbit. A launch too early or too late would inject the vehicle into a different plane unless guidance spends substantial performance on a dogleg or plane change. Plane changes are expensive because they rotate a large velocity vector; the cost grows with both orbital speed and the angle being changed.

The precise window is wider than a mathematical instant when the vehicle can tolerate a range of launch azimuths and insertion errors. It becomes narrow when the target plane is steep relative to the launch-site motion, when performance margins are tight, or when rendezvous phase imposes an additional timing requirement.

A launch site's latitude limits the inclinations it can reach efficiently. In a simplified spherical-Earth direct ascent, a due-east prograde launch from latitude phi naturally reaches an inclination near |phi|. Higher inclinations can be reached by selecting a more northerly or southerly launch azimuth. Reaching an inclination lower than the site's latitude generally requires an out-of-plane maneuver, a dogleg, or a different launch site.

Earth also provides an eastward velocity boost. At the equator the surface moves at about 465 m/s relative to Earth's rotation axis. At latitude phi, the useful eastward component is approximately 465 cos(phi) m/s. A site near the equator can therefore deliver more payload to a low-inclination prograde orbit than the same vehicle launched from a high-latitude site.

That benefit is not universal. Polar and retrograde missions may launch northward or southward and gain little from eastward rotation. Range safety also constrains azimuth because spent stages and debris corridors must avoid populated areas. The chosen launch direction is therefore a compromise among orbital inclination, vehicle performance, geography, overflight rules, and recovery zones.

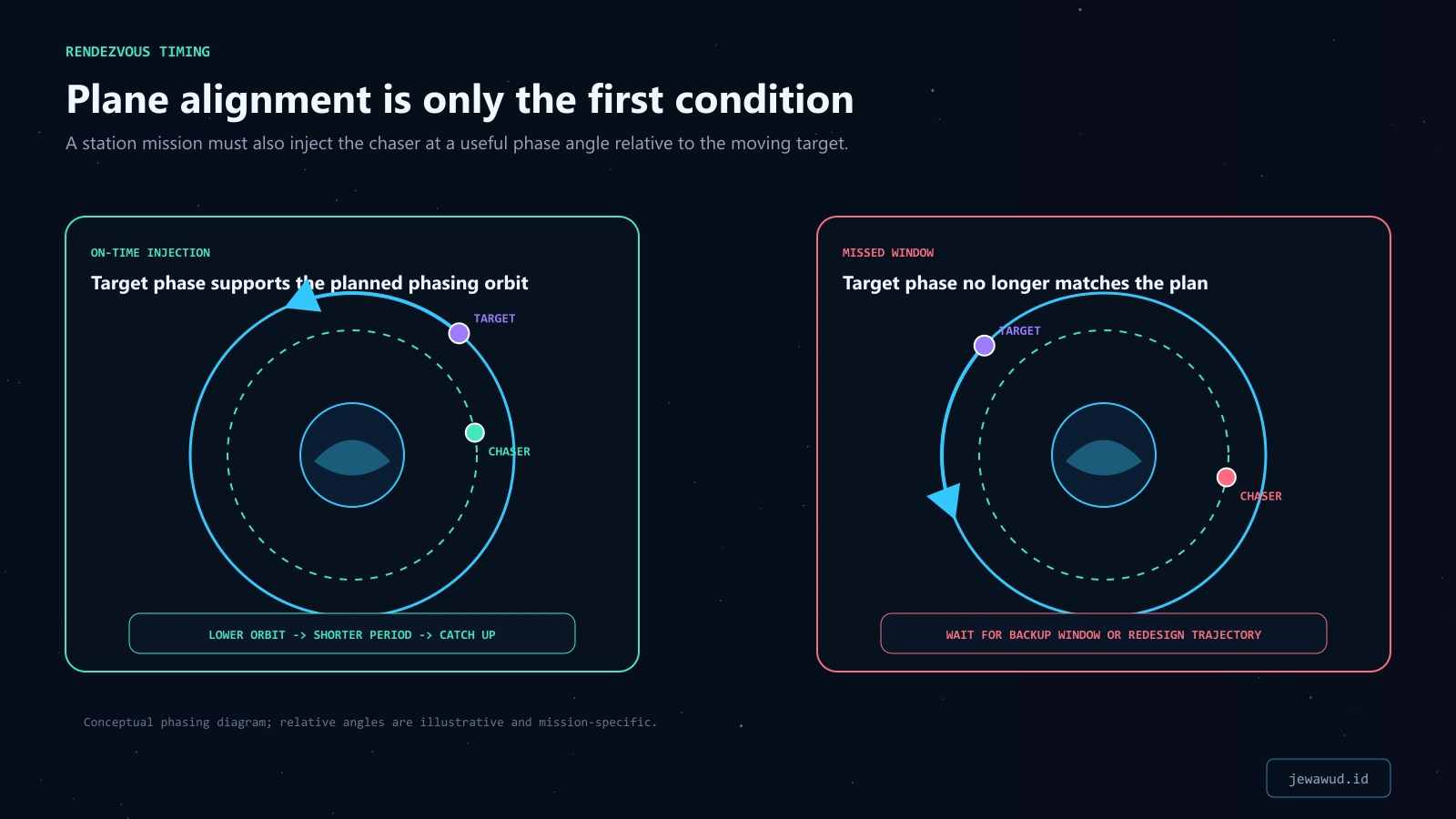

Reaching the correct orbital plane is necessary for a station mission, but it is not sufficient. The station must also be at a useful position along that orbit. The angular separation between the target and the planned insertion point is the phase angle. If the chaser enters too far ahead or behind, the available phasing strategy may exceed propellant, time, lighting, or crew constraints.

A common rendezvous plan inserts the chaser into a slightly lower orbit. Because a lower orbit has a shorter period, the chaser advances in phase relative to the higher target. Carefully timed burns then raise the chaser, match the target's orbit, and reduce relative motion before proximity operations begin. Launching late changes the starting phase and shifts every later encounter.

This explains why crew and cargo missions to an orbiting station often have short windows. Historical Space Shuttle missions to Mir used windows of roughly 10 to 12 minutes, and some rendezvous launches target a much narrower point within the available opportunity. A scrub may force the mission to wait for the next geometrically useful pass rather than launch a few minutes later.

An interplanetary spacecraft enters an orbit around the Sun. To meet Mars, it must leave Earth on a solar trajectory that reaches Mars's orbital distance when Mars reaches the same location. The target is therefore the planet's future position, not its apparent position in the sky on launch day.

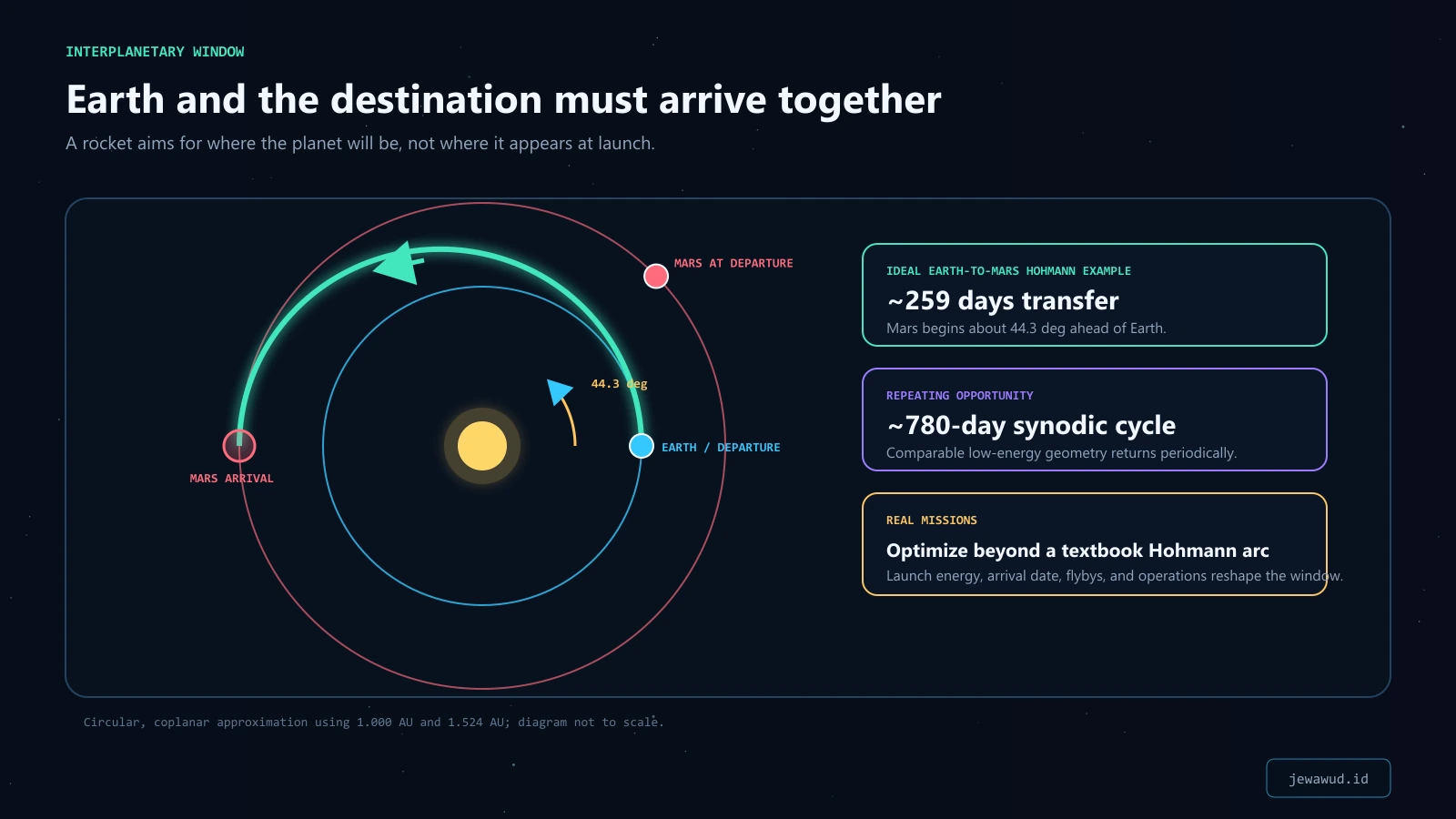

A useful textbook example is a circular, coplanar Hohmann transfer from Earth's 1.000 AU orbit to Mars's 1.524 AU orbit. The transfer takes about 259 days. During that time the spacecraft travels 180 degrees around the Sun while Mars travels about 136 degrees, so Mars should begin roughly 44.3 degrees ahead of Earth. Similar low-energy geometry returns on the Earth-Mars synodic cycle of about 780 days.

Real mission windows are not one exact Hohmann solution. Earth and Mars have eccentric and inclined orbits, launch vehicles have finite energy, arrival conditions matter, and mission designers may trade flight time against launch energy and arrival velocity. Numerical optimization produces a multi-day or multi-week opportunity, often visualized with launch-energy and arrival-date contour plots. Daily launch times inside that seasonal opportunity are then shaped by Earth's rotation and local operations.

Trajectory geometry provides the first candidate interval. The launch team then intersects it with many practical limits. Weather rules can restrict wind, precipitation, lightning, electric fields, cloud types, and upper-level conditions. Vehicle limits cover propellant temperature, battery life, guidance initialization, structural loads, engine conditioning, and allowable hold time.

Range safety checks where the rocket and its debris could travel after failures at each moment of ascent. Airspace and maritime exclusion zones must be active. Tracking stations, relay satellites, recovery vessels, landing zones, and mission-control teams must be available. For a crewed flight, abort sites and recovery weather can add further restrictions.

These constraints explain why a technically open orbital window can still be declared "no go." They also explain why different missions from the same pad have different windows. Launch commit criteria belong to the specific vehicle, range, payload, and mission plan; they are not universal weather numbers for every rocket.

An instantaneous window targets one liftoff time. Operationally there may be a tolerance of seconds, but the mission does not hold and launch later inside the same attempt. This is common when rendezvous geometry or planetary injection is tightly coupled to ascent timing.

A short window may last several minutes. Guidance can compensate for small changes in liftoff time by adjusting azimuth, coast duration, or upper-stage steering. Performance and downstream events still bound the interval. A long window may last an hour or more when the target orbit is flexible and the payload does not need an immediate rendezvous.

Interplanetary missions can have both an extended calendar window and a short daily window. "Launch window" therefore needs context: it may refer to a season of acceptable departure dates, a daily range interval, or the final seconds available to the launch conductor.

When a countdown stops, teams first determine whether the vehicle can recycle safely. Cryogenic propellant may need to be drained or replenished. Batteries, life-support consumables, payload temperatures, and engine-start limits may restrict another attempt. The range and weather forecasts must also be rebuilt for the next opportunity.

For a flexible satellite launch, the next opportunity might be later the same day. For a station rendezvous it may be the next daily plane crossing with a revised phasing plan. For an interplanetary mission it may be the following day inside the same planetary window. Near the end of a planetary opportunity, a scrub can produce a longer delay because launch energy and arrival conditions worsen beyond the vehicle's capability.

Mission planners prepare backup trajectories in advance. The public may see only a new date and time, but behind it are updated state vectors, ascent targets, collision screening, tracking schedules, consumables, weather analysis, and range coordination.

The Jewawud Rocket Mission Simulator helps demonstrate why a launch is mainly a horizontal-velocity problem after the initial climb. Select the Falcon 9 preset, launch, and watch how pitch, speed, staging, and orbital insertion evolve. The simulation is educational rather than an operator-grade flight-dynamics tool, but it makes one important point visible: reaching altitude alone does not place a payload into the required orbit.

Use the Orbital Planner to compare target altitude, period, and inclination. Then inspect live trajectories in Jewawud Orbital Tracker (JOT). A station or satellite continues moving while the launch site rotates beneath its orbital plane, exactly the geometry that creates daily opportunities.

Try a simple thought experiment. Choose a target inclination, identify a launch-site latitude, and ask three separate questions: can the site reach the plane, when does that plane pass the site, and where must the target be along the orbit at insertion? Treating those as different questions prevents the common mistake of reducing a launch window to weather alone.

"A rocket can wait on the pad and launch whenever the weather clears." Only if trajectory and vehicle constraints still remain open. A narrow plane or rendezvous window may already have closed.

"The rocket points directly at the destination." It enters an orbit or transfer trajectory designed to intersect the destination's future position.

"Every launch window repeats exactly 24 hours later." Not necessarily. Target orbits precess, phase changes, planetary geometry evolves, and operational constraints move.

"A longer window means an easier mission." It means liftoff time is more flexible. The ascent, deployment, or destination can still be technically demanding.

"Weather creates the launch window." Weather can close an available window, but orbital geometry usually defines when the mission can reach its target efficiently.

Why are ISS launch windows short? The launch site must align with the station's orbital plane and the station must have a useful phase for rendezvous.

Why launch eastward? A prograde eastward launch can use Earth's rotational velocity, reducing the velocity the rocket must supply.

How often is there a Mars window? Comparable low-energy Earth-Mars opportunities recur approximately every 780 days, although each real mission window is separately optimized.

Can guidance fix a late launch? Only within planned limits. Once the required correction exceeds performance or safety margins, the mission must scrub or use another trajectory.

Is a launch window the same as a countdown? No. The countdown organizes operations; the window defines when liftoff is acceptable.
